Trim Clip Part Number/Source
Hi all,

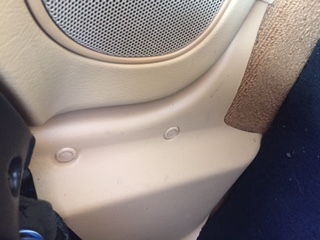

I wonder if anyone can help me out finding a source for the retainers/clips for the kick panel on a 1993 FD (tan interior.) I had to pull mine off and the clips broke. I've searched parts diagrams and the internet for these, but haven't found anything. I figured they wouldn't be too hard to find, but apparently they are. I attached a picture of what I'm looking for (the two round things in the middle of the picture.) Any help would be appreciated. Thanks in advance.
Joe
I wonder if anyone can help me out finding a source for the retainers/clips for the kick panel on a 1993 FD (tan interior.) I had to pull mine off and the clips broke. I've searched parts diagrams and the internet for these, but haven't found anything. I figured they wouldn't be too hard to find, but apparently they are. I attached a picture of what I'm looking for (the two round things in the middle of the picture.) Any help would be appreciated. Thanks in advance.
Joe
Last edited by jwelser; 05-01-16 at 04:13 PM.
05-01-16, 04:50 PM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
GJ21-68-885B-33 is the Mazda part number
05-02-16, 09:51 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
hmm its NLA from Mazda, weird. the GJ21 part number is from an 88-92 626, so they did come on more cars than the FD.
or you could buy a black one and dye it
or you could buy a black one and dye it
05-03-16, 01:05 PM
#6
RX-7 Bad Ass
iTrader: (55)
I've seen black ones and grey ones available new, but I think tan will be really hard or impossible to find new.
May see if you can find another 90's Mazda with a tan interior at the junkyard and get some there. Or, paint/dye new black or grey ones, grey would probably be easiest.
Dale
May see if you can find another 90's Mazda with a tan interior at the junkyard and get some there. Or, paint/dye new black or grey ones, grey would probably be easiest.
Dale
