Tranny fill bolt HELP Please!!!

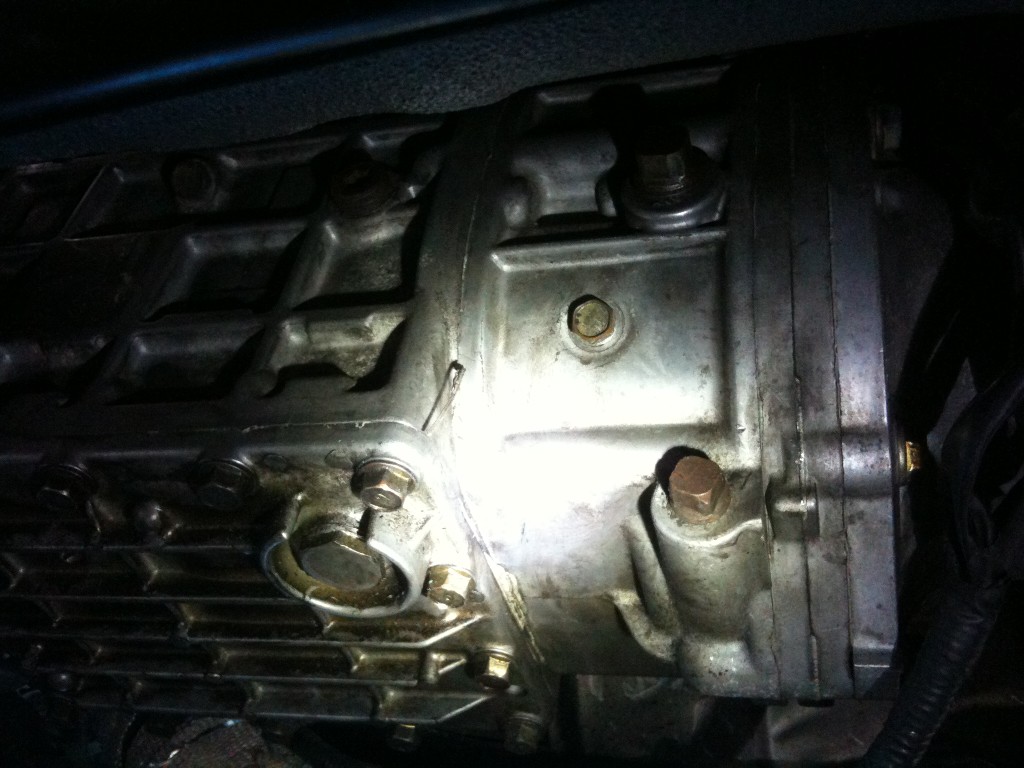

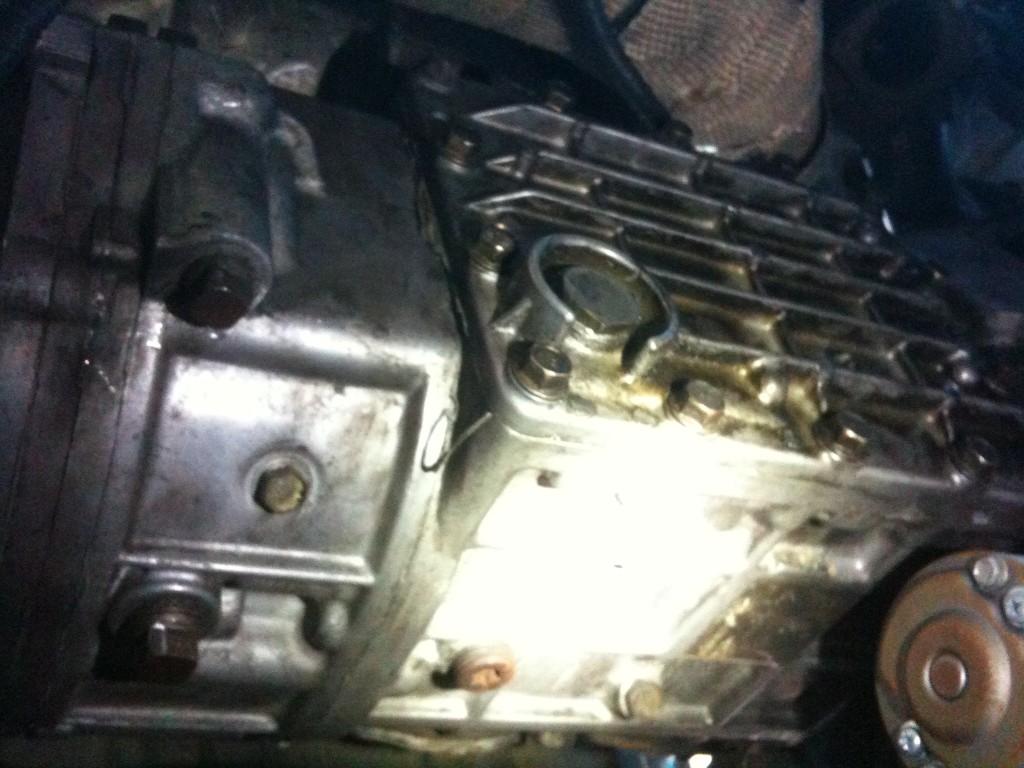

Hi all since i have my car on the jack i was going to change my tranny fluid. Looked up everything, people are saying drain it and then fill it. According to the FSM manual these three bolt right (pics) drain on bottom 22mm socket, small 12mm square bolt and 14mm square bolt. This is what's holding me back, I try everything from socket to adjustable wrench, also with extension to try and turn it loose but neither one would loosen. Am i loosing the right ones or what, is there another way to get this loosen. Please help thanks.
#2
VV That's mine VV
Join Date: Jan 2007
Location: Chapel Hill, NC
Posts: 583
Likes: 0
Received 0 Likes
on
0 Posts
The 22mm and the lower 12mm square are both drain plugs. You fill from the larger square plug. I just open them using a regular old C wrench.
1) Open fill port first (allows oil to drain smoothly when the drains are open)
2) Open both drain ports
3) Allow to drain completely
4) Close both drain ports
5) Fill tranny with 75w-90 to bottom edge of fill port (approximately 2.6 quarts)
6) Close fill port
If the plugs won't come out, try PB blaster (or something similar) then man up.
1) Open fill port first (allows oil to drain smoothly when the drains are open)
2) Open both drain ports
3) Allow to drain completely
4) Close both drain ports
5) Fill tranny with 75w-90 to bottom edge of fill port (approximately 2.6 quarts)
6) Close fill port
If the plugs won't come out, try PB blaster (or something similar) then man up.
#7
Senior Member
Thread Starter
iTrader: (4)
Join Date: Aug 2005
Location: Lancaster, PA
Posts: 509
Likes: 0
Received 0 Likes
on
0 Posts
wow finally holy son of a gun, i got them off with heat, monkey wrench and a buddy helping me loosen it hahaha damn thing was freaking tighter than a virgin hahaha
Thanks guys for all of your help.
Thanks guys for all of your help.
