is there anybody who makes a new manifold and ext. waste gate

Thread Tools

Search this Thread

Old 09-09-04, 12:01 AM
  #1
Senior Member

Thread Starter

phishie's Avatar

Join Date: Dec 2003
Location: Santa Clarita, CA
Posts: 597
Likes: 0
Received 0 Likes on 0 Posts
is there anybody who makes a new manifold and ext. waste gate

for use with the stock turbos?
Old 09-09-04, 01:34 AM
  #2
FEARED


Black97VR4's Avatar

Join Date: Mar 2003
Location: Winchester, VA
Posts: 688
Likes: 0
Received 0 Likes on 0 Posts
No I don't beleive there is one. The mamifold is a big reason why our twins suck so much. It would be nice if a new one were to be made.
Old 09-09-04, 02:20 AM
  #3
Senior Member


Join Date: Jun 2003
Location: Minden, NV
Posts: 494
Likes: 0
Received 0 Likes on 0 Posts

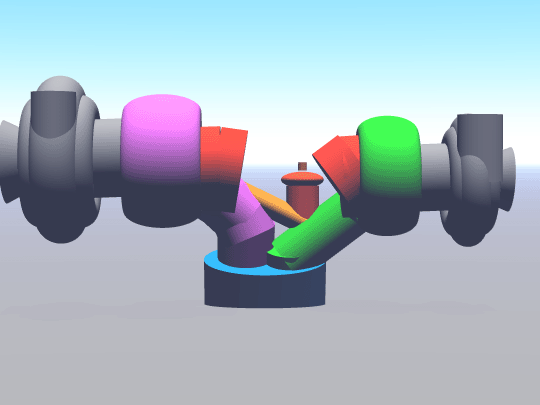

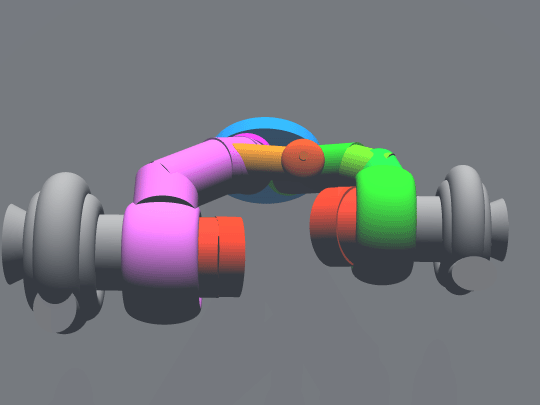

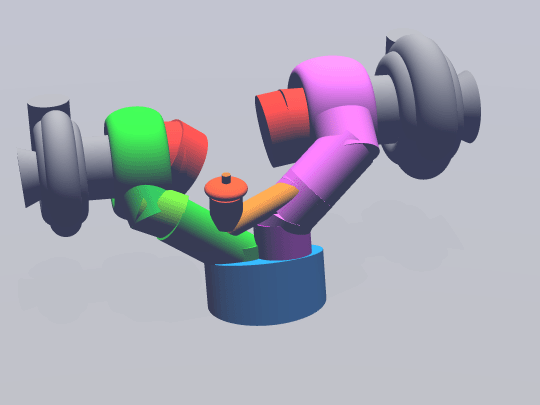

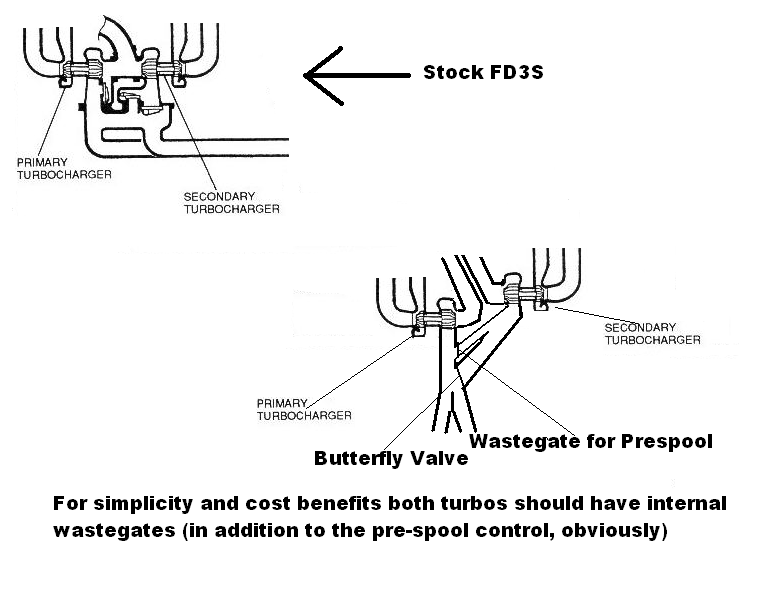

I just got this model done and I am going to start making this. My hope is to be able to a) use better turbos, because the stockers suck! and b) Still run sequential using a wastegate for pre-spool and 2 butterfly valves, one in the exhaust (as shown) and one in the IC piping, both will be on the same RPM control.
Attached Thumbnails is there anybody who makes a new manifold and ext. waste gate-turbodesign2.gif   is there anybody who makes a new manifold and ext. waste gate-fmlb1.gif   is there anybody who makes a new manifold and ext. waste gate-fmlb2.gif   is there anybody who makes a new manifold and ext. waste gate-fmlb3.gif
Old 09-09-04, 02:21 AM
  #4
Senior Member


Join Date: Jun 2003
Location: Minden, NV
Posts: 494
Likes: 0
Received 0 Likes on 0 Posts

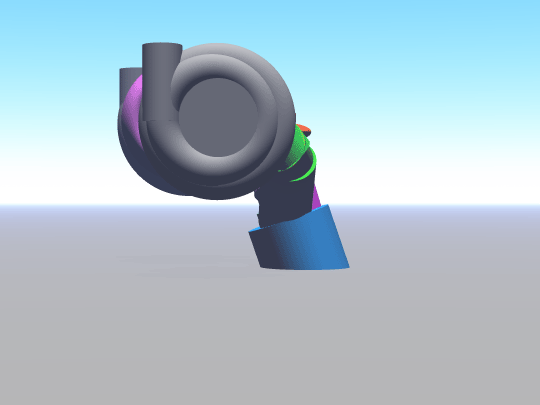

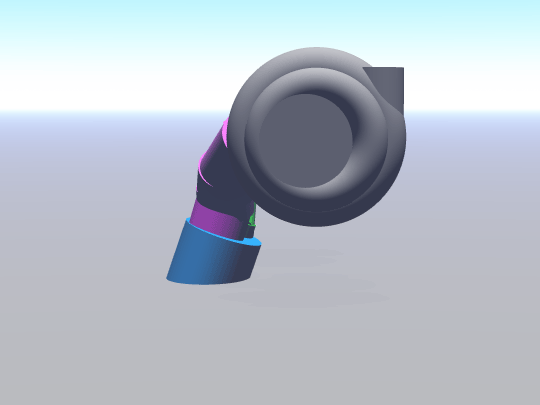

couple more. You also have to imagine how it would look if it were actually bent steel tubing, or if I knew how to actually use a 3d program.
Attached Thumbnails is there anybody who makes a new manifold and ext. waste gate-fmlb4.gif   is there anybody who makes a new manifold and ext. waste gate-fmlb5.gif

Last edited by EpitrochoidMan; 09-09-04 at 02:28 AM.
Old 09-09-04, 02:42 AM
  #5
The Spirit of FLUFF!

iTrader: (1)

RX7SpiritR's Avatar

Join Date: Oct 2002
Location: East Highland, CA
Posts: 1,350
Likes: 0
Received 0 Likes on 0 Posts
I talked with someone about making a SS exhaust manifold for the stock twins and he is looking into it right now. I'll let you know what they say and how much we are looking at.
