Thats not an oil leak! THIS IS A OIL LEAK!
#1
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Thats not an oil leak! THIS IS A OIL LEAK!
gonna try to be as calm as i can about this. Just finished changing my oil and flushed radiator and added new 30-70 mix of coolant.
Warmed her up and decided to go for a wee drive, as i pull in to the gas station just coming out from my street i hear this chaffing noise come from the engine, so i open up the bonnet and WTF! THERES OIL EVERYWHERE! i quickly drove the car back down my street (so low oil pressure light only came on for about 10secs). Also i think its nicely drained most if not all the oil i just put in it, (on the service station floor .....)

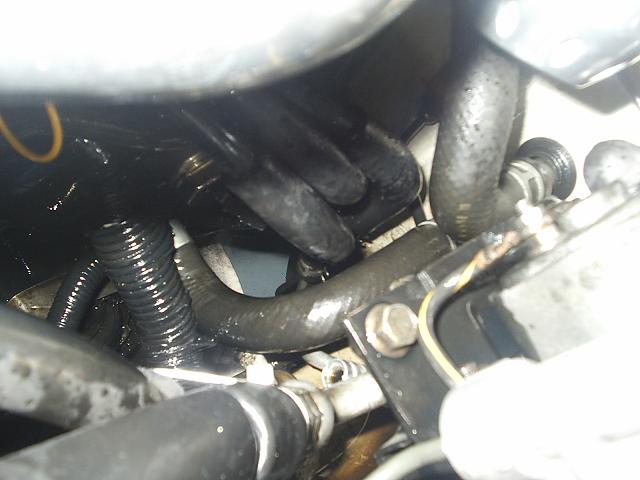

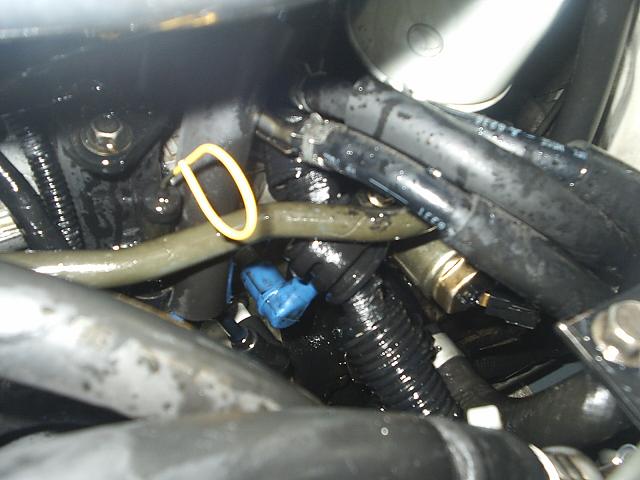

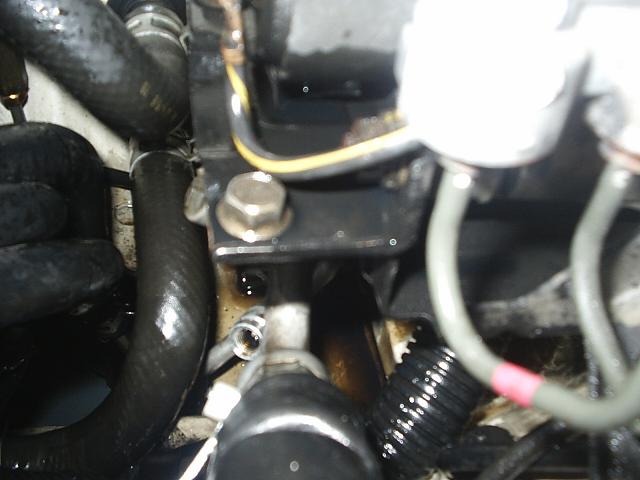

I ve taken some pics of it and i honestly dont know what to make of it, my car has never done this until this time of changin the oil i ve changed the oil a few times b4 on it too, oil filter snug tight, oil drain plug on tight, oil cap obviously back on? wtf!? In the pic i ve noticed theres a shiny pipe that has nothing connected onto it so im hoping that s the culprit? Any help would be much appreciated as im on the brink of jumping out my window. What in the nine hells!!!???
Warmed her up and decided to go for a wee drive, as i pull in to the gas station just coming out from my street i hear this chaffing noise come from the engine, so i open up the bonnet and WTF! THERES OIL EVERYWHERE! i quickly drove the car back down my street (so low oil pressure light only came on for about 10secs). Also i think its nicely drained most if not all the oil i just put in it, (on the service station floor .....)
I ve taken some pics of it and i honestly dont know what to make of it, my car has never done this until this time of changin the oil i ve changed the oil a few times b4 on it too, oil filter snug tight, oil drain plug on tight, oil cap obviously back on? wtf!? In the pic i ve noticed theres a shiny pipe that has nothing connected onto it so im hoping that s the culprit? Any help would be much appreciated as im on the brink of jumping out my window. What in the nine hells!!!???
Last edited by [SLO NIZ]; 01-20-05 at 12:09 AM.
#2
Eats, Sleeps, Dreams Rotary
iTrader: (4)
Join Date: Apr 2003
Location: Denver, NC
Posts: 3,531
Likes: 0
Received 0 Likes
on
0 Posts
is your PCV hooked up?If you have that in NZ Otherwise maybe you filler neck gasket decided to go on vacation on you. but that pipe looks like the most likely suspect to me as well. I am just trying to picture things on the opossite side of the engine bay.
You don't have the catch tank that bolts under the intake elbow in NZ do you?
You don't have the catch tank that bolts under the intake elbow in NZ do you?
#3
Lives on the Forum
iTrader: (8)
I suggest you remove your EGI fuse, refill the engine with some oil, have a friend crank it while you watch in the bay (it will not start) and observe where the oil is gushing from.
That hose could be for an aftermarket oil pressure or temperature gauge? I have no idea what that would go to...it is not stock as far as I can tell.
That hose could be for an aftermarket oil pressure or temperature gauge? I have no idea what that would go to...it is not stock as far as I can tell.
#4
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Will do, i'll have a friend crank it over for me. The pipe is not from a gauge im pretty sure, the inside of that pipe looks to have a thread inside it so what or where the other side to beats me up! could it be some sort of a cap? i ask this beacuse just next to this pipe, theres also another pip that looks quite similar and has a small plastic cap on it, the cap on this pipe has a the ltter "L" on it too...?
oh man this ridicously sucks.
oh man this ridicously sucks.
#5
Rotary Enthusiast
Check that oil filter. Sometimes the rubber seal from the old filter will stick on the engine and when you put the new filter on you have two seals. This causes a big time leak between the seals.
Trending Topics
#8
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Nope, as much as i hoped i did just double gasket it its not, the old filter still has its rubber seal around it (i always smear some old oil around the ring b4 i change it everytime anyway)
#9
Im a tall midget.
iTrader: (28)
Originally Posted by [SLO NIZ]
The pipe is not from a gauge im pretty sure, the inside of that pipe looks to have a thread inside it so what or where the other side to beats me up! could it be some sort of a cap? i ask this beacuse just next to this pipe, theres also another pip that looks quite similar and has a small plastic cap on it, the cap on this pipe has a the ltter "L" on it too...?
#11
Lives on the Forum
My car looked just like that when the mechanic didn't screw the oil filter on tight. I drove my car for about a week with no problems and raced it on the weekend. No trouble for the first couple runs and then the engine spewed oil everywhere exactly like your pics. I could easily turn the filter using just two fingers it was so loose Tightened it up and it's been fine since.
I think you have the same problem. Notice how above the filter everything is clean and everything below is dirty? Mine looked exactly like that, except worse!
There is oil in the a/c but only a cup or so at the most. That is certainly not from the a/c.
I think you have the same problem. Notice how above the filter everything is clean and everything below is dirty? Mine looked exactly like that, except worse!
There is oil in the a/c but only a cup or so at the most. That is certainly not from the a/c.
Last edited by DamonB; 01-20-05 at 06:43 AM.
#13
Rotary Enthusiast
iTrader: (1)
Join Date: Feb 2004
Location: UK
Posts: 899
Likes: 0
Received 0 Likes
on
0 Posts
the 2 silver pipes with screw threads (one marked with L) are the air conditioning pipes (refil, bleed points). no oil in there... i suspect like one of the guys said,,,,the culprit been the oil filter. unscrew it and have a look,,,,is only 2 min job
#14
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Will check oil filter in the morning again,
What do u think the chaffing noise is then? It started to do that at the same time the engine leaked all the oil out.
Cheers for all the great ideas and helps btw
What do u think the chaffing noise is then? It started to do that at the same time the engine leaked all the oil out.
Cheers for all the great ideas and helps btw
#15
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Ok just checked the oil filter and its still tight on there so that rules the easy fix out
here it goes, if that pipe is infact the air conditioning pipe and someone mentioned that it DOES have oil but no where no enough to drain all me oil out then i guess im screwed? cos what else could it be?
1. Its not the oil filter because its still tight
2. Cant be the pipe with no end cos it doesnt hold enough oil to drain the entire block dry
***PULLS BITS OF HAIR OUR!!!***
here it goes, if that pipe is infact the air conditioning pipe and someone mentioned that it DOES have oil but no where no enough to drain all me oil out then i guess im screwed? cos what else could it be?
1. Its not the oil filter because its still tight
2. Cant be the pipe with no end cos it doesnt hold enough oil to drain the entire block dry
***PULLS BITS OF HAIR OUR!!!***
#16
RX-7 Bad Ass
iTrader: (55)
I would remove the filter and inspect the mating surfaces - even if it's on there tight, there could be some other problem, like a bad gasket, a wire that got caught between the filter and the pedastal, etc.
With that verified OK, I would fill up the oil, have a buddy start the car, and watch for where the oil is coming from. With a leak this big, it should be VERY obvious VERY fast where the oil is coming from.
Once you know where the leak is, it should be easy to take care of.
Dale
With that verified OK, I would fill up the oil, have a buddy start the car, and watch for where the oil is coming from. With a leak this big, it should be VERY obvious VERY fast where the oil is coming from.
Once you know where the leak is, it should be easy to take care of.
Dale
#17
Lives on the Forum
Yeah, swap the oil filter first to be certain the gasket or filter itself didn't fail. Always do the cheap and easy stuff first before going to the hard, time consuming expensive things. It amazes me how people always assume the cause of the problem is the most esoteric thing they can invent. Rule out the easy stuff first!
The only things in that area carrying oil are the oil filter and stand and the hardpipe coming from the filter stand and heading to the oil cooler. It's not the friggin air conditioning!
The only things in that area carrying oil are the oil filter and stand and the hardpipe coming from the filter stand and heading to the oil cooler. It's not the friggin air conditioning!
#18
Indifferent
iTrader: (3)
Join Date: Mar 2001
Location: Long Island,NY
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Remove the filter and check to make sure the oring isn't damaged or even missing. Also check the oil pressure sender to see if its tight. Eliminate the simple first. Sucha large oil leak is easy to find.
John
John
#19
Originally Posted by DamonB
Yeah, swap the oil filter first to be certain the gasket or filter itself didn't fail. Always do the cheap and easy stuff first before going to the hard, time consuming expensive things. It amazes me how people always assume the cause of the problem is the most esoteric thing they can invent. Rule out the easy stuff first!
The only things in that area carrying oil are the oil filter and stand and the hardpipe coming from the filter stand and heading to the oil cooler. It's not the friggin air conditioning!
The only things in that area carrying oil are the oil filter and stand and the hardpipe coming from the filter stand and heading to the oil cooler. It's not the friggin air conditioning!
Jeremy
Last edited by jeremyb; 01-20-05 at 11:07 AM.
#21
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Blah! its now 10am so i just woke up! Getting tucked into it now boys, thanks for all the replys! But i really dont understand ive done oil changed before and why is it that i do it this time that it happens???
#22
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Well i ve found the prob! Thanks to everyones help and all of u were right about the filter, I myself was quite scepticle about the filter been the culprit as being the person that screwed it on i didnt notice anything different about screwing it on this time compared to all the others.
But no matter, the filter IS what caused it to leak cos it looks like someone has purposly taking the rubber ring gasket out and put it back on but in a slight angle thus creating no seal what so ever! *argh whys everyone looking at me? :P*

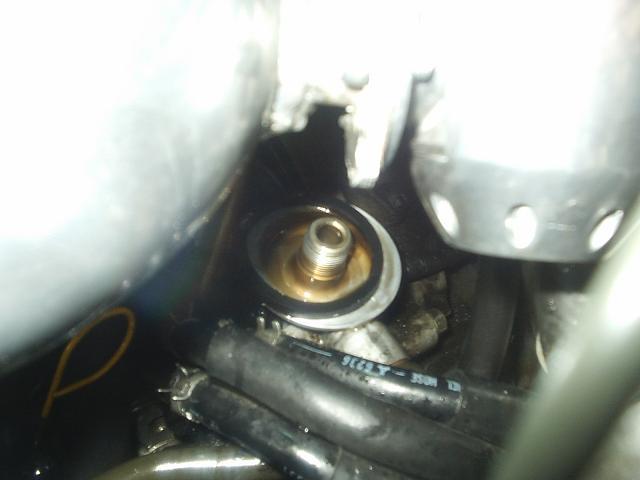

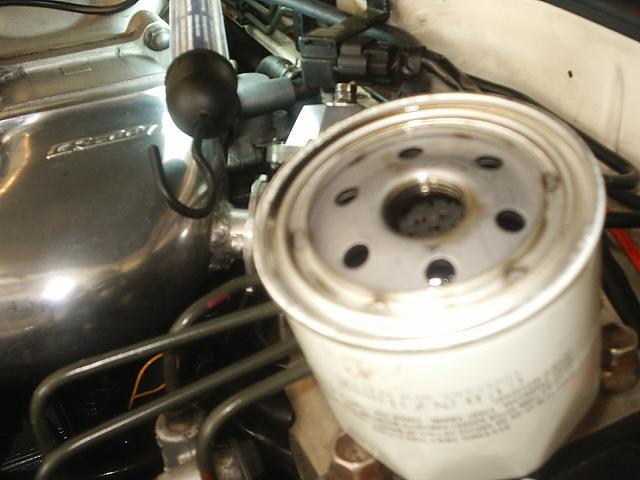

Theres a coupla pics and the pic with the rubber o ring from the oil filter is in the exact state when i un screwed it this morning, but i really still dont understand how it because situated like that tho, im assuming this is totally my fault so any precautions to take whilst doin the oil filter again?
Thanks again guys for ur inputs.
But no matter, the filter IS what caused it to leak cos it looks like someone has purposly taking the rubber ring gasket out and put it back on but in a slight angle thus creating no seal what so ever! *argh whys everyone looking at me? :P*
Theres a coupla pics and the pic with the rubber o ring from the oil filter is in the exact state when i un screwed it this morning, but i really still dont understand how it because situated like that tho, im assuming this is totally my fault so any precautions to take whilst doin the oil filter again?
Thanks again guys for ur inputs.
Last edited by [SLO NIZ]; 01-20-05 at 03:22 PM.
#23
Lives on the Forum
Originally Posted by [SLO NIZ]
But no matter, the filter IS what caused it to leak cos it looks like someone has purposly taking the rubber ring gasket out and put it back on but in a slight angle thus creating no seal what so ever! *argh whys everyone looking at me? :P*
#24
Rotary Enthusiast
Join Date: Jan 2004
Location: New Zealand
Posts: 1,003
Likes: 0
Received 0 Likes
on
0 Posts
http://www.trademe.co.nz/Trade-Me-Mo...n-21374829.htm
u gettin rid of ur baby!! boo hoo hoo hoo !! make sure it goes to a decent owner
u gettin rid of ur baby!! boo hoo hoo hoo !! make sure it goes to a decent owner
#25
Full Member
Thread Starter
Join Date: Apr 2004
Location: new zealand
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by spekdah
http://www.trademe.co.nz/Trade-Me-Mo...n-21374829.htm
u gettin rid of ur baby!! boo hoo hoo hoo !! make sure it goes to a decent owner
u gettin rid of ur baby!! boo hoo hoo hoo !! make sure it goes to a decent owner
Lol, how are ya mate, yeah im afraid its time to let her go.
