Test of stock air-inlet flow restriction.
09-12-04, 03:06 PM
#1
Senior Member
Thread Starter
Join Date: Oct 2002
Location: Bartlesville, OK.
Posts: 394
Likes: 0
Received 0 Likes
on
0 Posts
Test of stock air-inlet flow restriction.
Well, guess what, the stock system sucks. I know big surprise.
I’ve read the posts about reverse-flow problems, the many filter and airbox mods/replacements, etc. So a few weeks ago I decided to try and measure how much restriction to airflow was created by the stock air inlet passages on my ’95 PEP. Other flow-affecting mods are SS downpipe and catback.

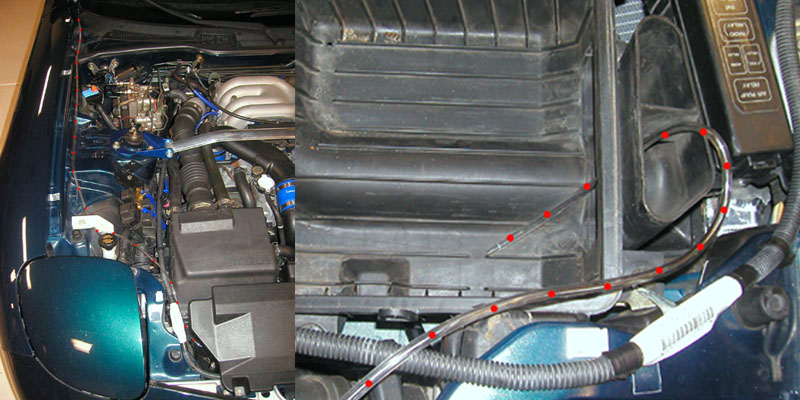

My test setup was to run a 3/16” clear vinyl tube from inside the airbox back in to the passenger compartment where the other end of the tubing was attached to 4-inch diameter mechanic’s vacuum/pressure test gauge. Then I went for a test drive while monitoring the test gauge’s responses.
Worst case I found 7-8 inches of vacuum IN FRONT OF THE FILTER ELEMENT! So regardless of the type of filter, the OE air passage between the air box and the front of the car cause a significant amount of flow restriction.
During this test I was running a Purolator brand filter element with ~9K miles of daily use. Had this been a higher flowing K&N, or even just a new element, I’m sure I would have seen higher vacuum readings.

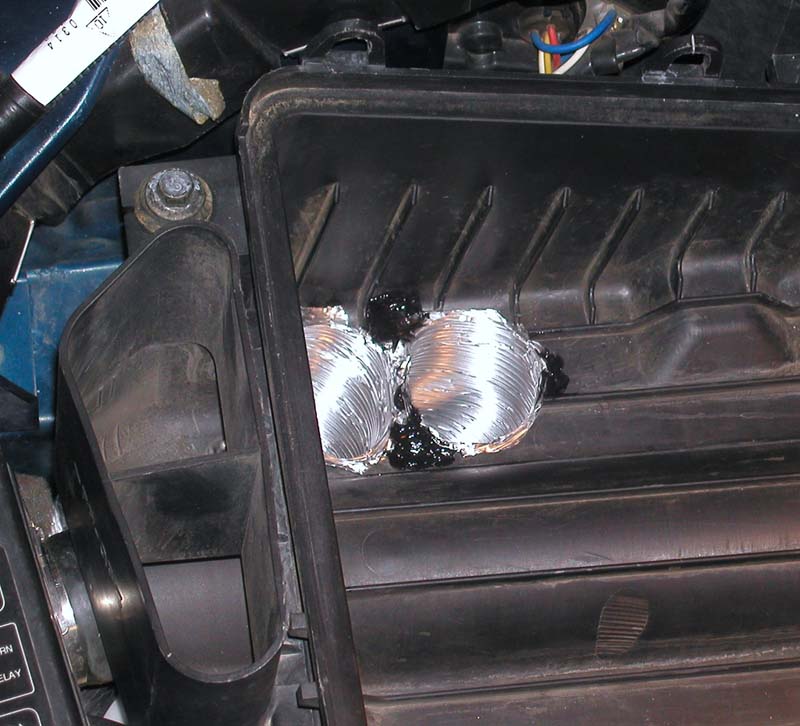

Since I wanted to keep a stock appearance and also maintain as much air to the intercooler, I decided to perform the Robinette Cold Air mod http://www.rx7.org/Robinette/coldair.htm using two each 1-3/4” diameter aluminum flex hoses. Following this I retested and measured zero vacuum under all conditions. Butt-o-meter said there was noticeable improvement in power, particularly at higher RPM’s. Secondary boost recovered faster and held higher at redline. Transition spiking also increased by 2-3 PSI forcing me to add a manual controller for the wastegate; already had one for pre-spool.
