What up guys, I’m rebuilding my master cylinder and I forgot to take pictures of the tear down. Assembled it all and I have 2 left over seals idk where TF they go. Here are the seals
Not sure on those, I didn't end up having to fully rebuild the master I was working on.
Could they be in the bore of the master? Or could they be the seals that go between the master and the fluid reservoir?

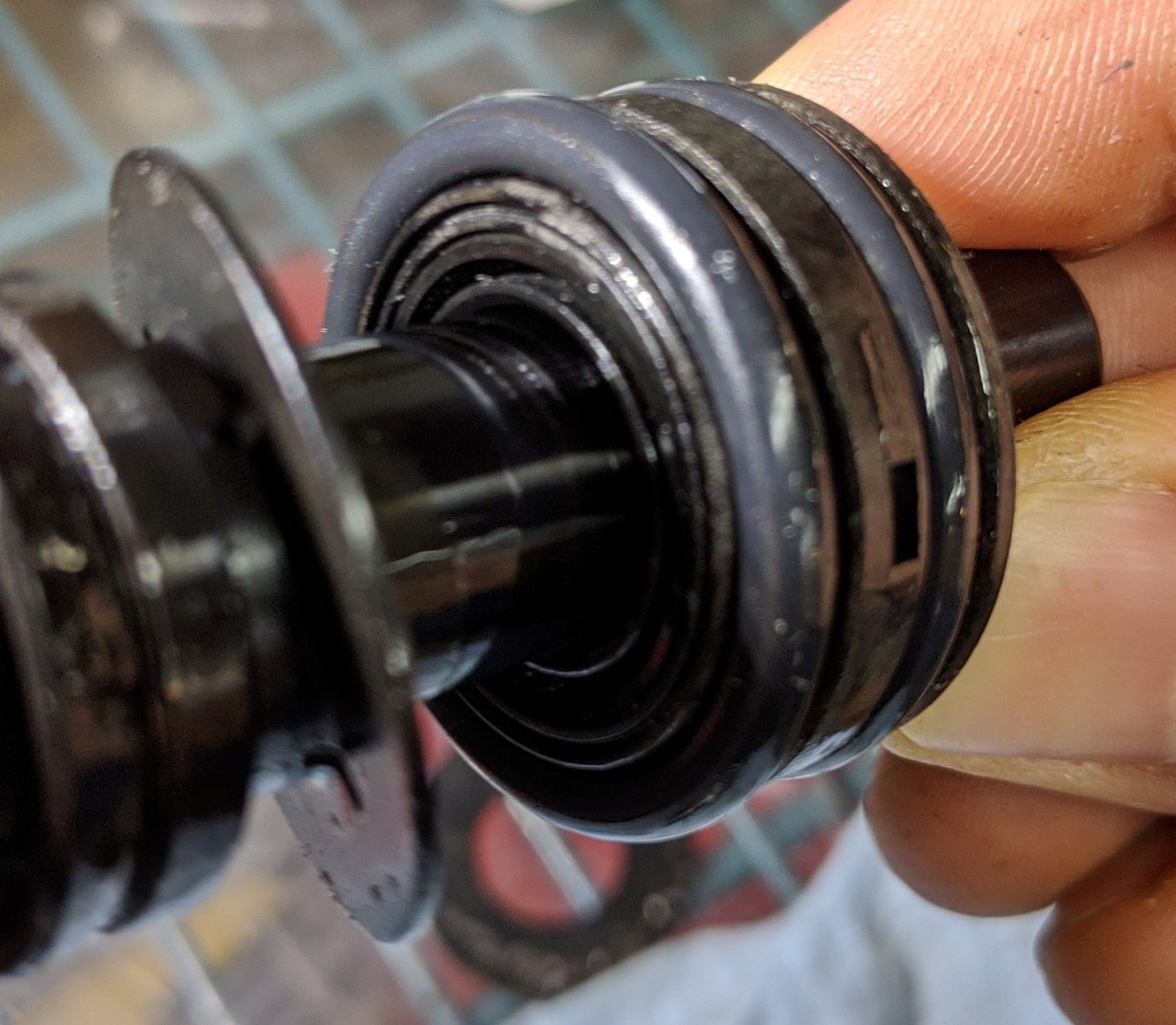

Found a better picture. The seals are on the left of the picture but go inside the plastic piece on the right, seals around the shaft. Recently rebuilt 3 of them, all were leaking from the front all over the brake boosters. All 3 cars were sitting for an extended period of time.
Found a better picture. The seals are on the left of the picture but go inside the plastic piece on the right, seals around the shaft. Recently rebuilt 3 of them, all were leaking from the front all over the brake boosters. All 3 cars were sitting for an extended period of time.
In your picture it shows the two seals that I posted. My question is where do they actually go how did the babies inside the cylinder of the brake master cylinder during assembly. That is where I am confused I do not know which direction or where they go.
