Stupid question about turbo oil return line gaskets...

Thread Tools

Search this Thread

Old 08-13-07, 08:30 PM
  #1
32psi+

Thread Starter
iTrader: (42)

Copeland's Avatar

Join Date: Sep 2006
Location: Raleigh, NC
Posts: 1,323
Received 40 Likes on 32 Posts
Stupid question about turbo oil return line gaskets...
I was too busy taking the damned turbos off to notice if there is a gasket. I'm pretty certain there is but, what do they look like? I can't find a single one anywhere. Anyone have a picture?

Thanks

Aaron
Copeland is offline
Reply Like
Old 08-13-07, 10:29 PM
  #2
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts

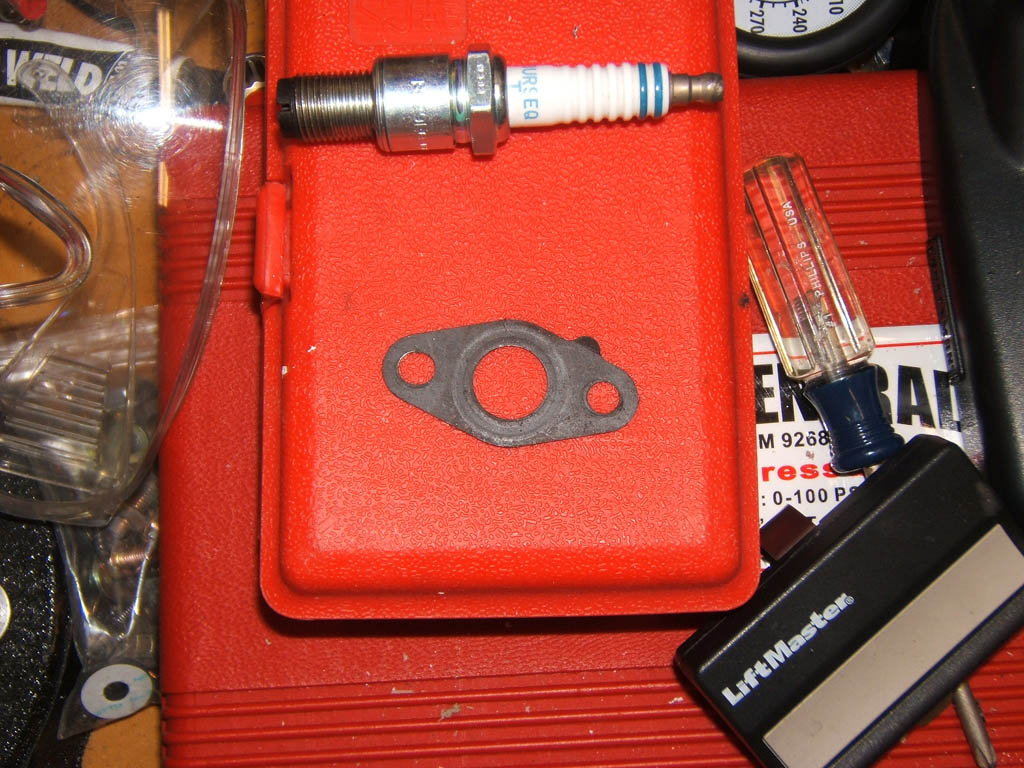

There will be 3 of them that look like the picture attached. The 4th one will be odd ball as that's the one which goes to the front line (engine side).
Attached Thumbnails Stupid question about turbo oil return line gaskets...-turbo_oil_gasket.jpg
Mahjik is offline
Reply Like
Old 08-14-07, 07:00 AM
  #3
Senior Member


drew32's Avatar

Join Date: May 2007
Location: Wilmington, DE
Posts: 285
Likes: 0
Received 2 Likes on 2 Posts
Here is a questions, does it matter which way the gasket faces when installing them?
drew32 is offline
Reply Like
Old 08-14-07, 08:19 AM
  #4
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
Nope, that doesn't matter.

They can only be re-used so much before you need new ones, but those metal crush gaskets work extremely well.

Dale
DaleClark is offline
Reply Like
Old 08-14-07, 12:06 PM
  #5
Senior Member


drew32's Avatar

Join Date: May 2007
Location: Wilmington, DE
Posts: 285
Likes: 0
Received 2 Likes on 2 Posts
whew! good because i just put them in yesterday and was praying i didnt put them in backwards!
drew32 is offline
Reply Like
