Strange place for smoke....
Hi guys, just like every other member on this forum, I've been trying to get my car to run right but every time I fix something, another issue comes up. I just fixed a blown main fuse and started the car. It started up fine and seemed to run well.

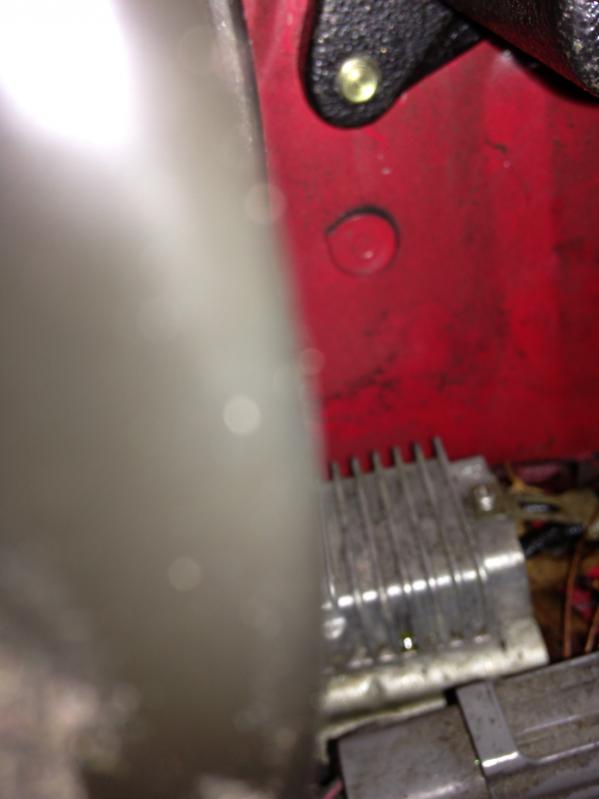

After letting it run for about 5 mins, I noticed a small trail of smoke coming from the engine on the drivers side right by the firewall and fender (the corner basically). It seemed like it was coming from this (see pic. The silver square with ridges on it). Can anyone tell me what that is and is there a possibility of it starting to smoke, or is my issue somewhere else?
After letting it run for about 5 mins, I noticed a small trail of smoke coming from the engine on the drivers side right by the firewall and fender (the corner basically). It seemed like it was coming from this (see pic. The silver square with ridges on it). Can anyone tell me what that is and is there a possibility of it starting to smoke, or is my issue somewhere else?
04-18-13, 11:46 PM
#2
Senior Member
Thread Starter
iTrader: (3)
Join Date: Aug 2005
Location: Foster city Ca
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Ok i figured out it was the fuel pump resistor. Do i have to order this from Ray, or can I pick one up at a local auto parts store? Or can i just disconnect it and not use it? I know more fuel will run through the lines, but will anything else be affected by disconnecting it?
04-19-13, 10:19 AM
#3
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes
on
66 Posts
First you need to slow down and do some analytical thinking about your problem.
If you want your fuel pump to wear out quicker than normal, then remove it and jump across its connectors. Thus giving full voltage to the pump 100% of the time. OK for a race only car but not the best for a street car
Buy at a local auto store? HaHa! A low volume import car that has not been imported since 1995?
Contact Ray but you could try on the wanted or sale forums for one first.
If you want your fuel pump to wear out quicker than normal, then remove it and jump across its connectors. Thus giving full voltage to the pump 100% of the time. OK for a race only car but not the best for a street car
Buy at a local auto store? HaHa! A low volume import car that has not been imported since 1995?
Contact Ray but you could try on the wanted or sale forums for one first.
04-21-13, 09:26 AM
#5
Rogue Engineer
Never heard of the fuel pump resistor before. Crazy idea, but could you setup to bypass a the resistor on a switch? I do SCCA on the weekend and for short 2-5 minute track bursts it may not be a bad mod to juice up the pump.
04-21-13, 10:49 PM
#6
Be careful if it has smoked the fuel pump resistor, because it might have fried some of the wires leading to it as well. Remove it for investigation and double check everything related to it in that location. Nothing worse than an electrical fire
As far as a replacement, you have to go Ray or go second hand parts.. Or go home
As far as a replacement, you have to go Ray or go second hand parts.. Or go home
