Stock Twin Turbo nuts and bolts locations

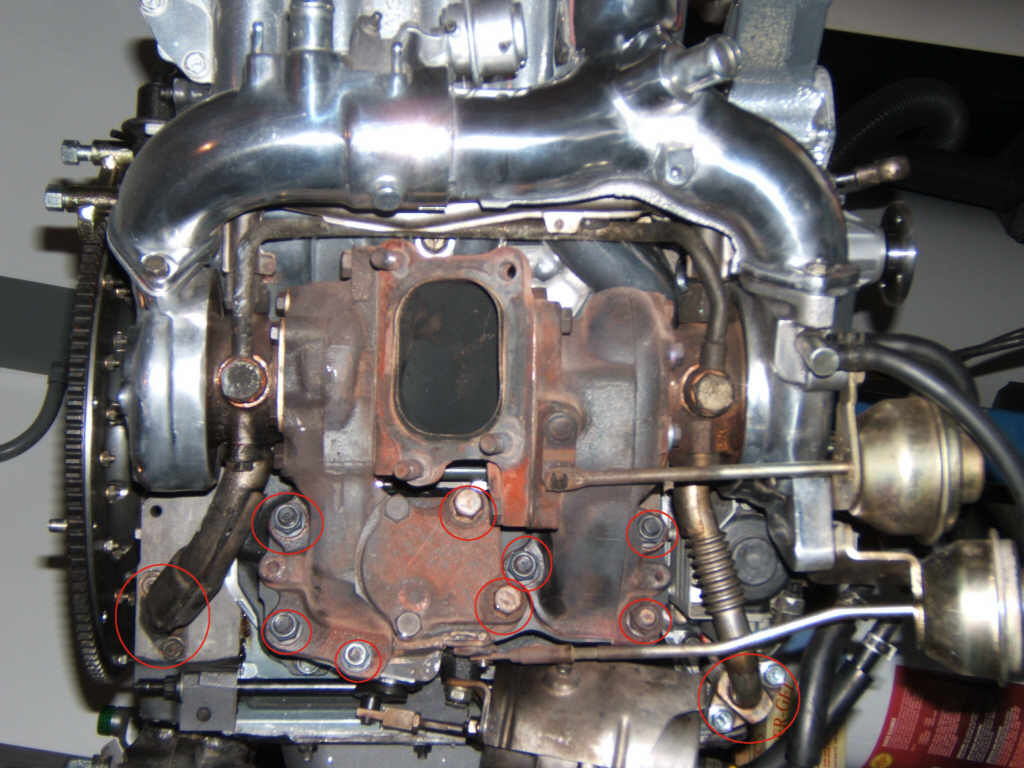

I've seen a lot of posts where people don't know all the bolts needed to remove the stock twins turbos. So, I snapped a quick picture while the engine is still out of the car to show them.
Keep in mind, you also have the coolant connections above the turbos....
The following 2 users liked this post by Mahjik:
nothinguntil (03-04-21),
ZekeO (09-18-19)
#3
Place your ad here...
Originally Posted by Mahjik
Keep in mind, you also have the coolant connections above the turbos....
Great post. I'm sure this will help some people out.
-Rob
#4
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts
Pulling mine off over Christmas to fix a persistent oil leak, this will be of great help! Thanks!
Would you reccomend replacing the return lines at this time or just new gaskets? Pretty shure this is where my leak is originating from.
Would you reccomend replacing the return lines at this time or just new gaskets? Pretty shure this is where my leak is originating from.
#6
Rotary Freak
Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes
on
0 Posts
DamonB had a thread a while back where he wound up replacing his. I think it was to cure a persistent oil leak. Might want to search for that thread or wait to see if he'll chime in on this one.
Trending Topics
#10
Originally Posted by DamonB
Let's see. When I removed my turbos I broke that one, and that one, and that one and stripped that one and that one
For those of you looking to do some turbo work, you'll notice most of those nuts that go to the exhaust manifold studs are new in the picture above. Those nuts are almost $6 each. Anti-Seize will be your friend.
#12
development
Originally Posted by DamonB
Let's see. When I removed my turbos I broke that one, and that one, and that one and stripped that one and that one
#13
NICE! Thanks guys...this is PERFECT timing! I'm about to tackle this for the first time in a week or so
BTW, Mahjik, you wouldn't happen to know of a thread how-to (that still has pics up for disassembling/stripping a long block to a short block, would ya?
~Ramy
BTW, Mahjik, you wouldn't happen to know of a thread how-to (that still has pics up for disassembling/stripping a long block to a short block, would ya?
~Ramy
#14
Originally Posted by FDNewbie
BTW, Mahjik, you wouldn't happen to know of a thread how-to (that still has pics up for disassembling/stripping a long block to a short block, would ya?
#15
Place your ad here...
Originally Posted by Mahjik
Nope, but it's pretty easy. Things will come off in pretty good size chunks. Removal is the easy part, assembly is more time consuming (as you don't care how it comes off, but you care how it goes back together ).
-Rob
#16
Track junkie
Originally Posted by FDNewbie
NICE! Thanks guys...this is PERFECT timing! I'm about to tackle this for the first time in a week or so
BTW, Mahjik, you wouldn't happen to know of a thread how-to (that still has pics up for disassembling/stripping a long block to a short block, would ya?
~Ramy
BTW, Mahjik, you wouldn't happen to know of a thread how-to (that still has pics up for disassembling/stripping a long block to a short block, would ya?
~Ramy
I can lend a hand. Let me know when
#17
Mahjik, good point (as usual).
Rob, who said anything about putting it back together? Maybe next time
Pat, pshhh...sure man. I'll def. welcome all the help I can get, esp. it being my first time and all. I'm prob gonna buy an air compressor, impact gun, and flywheel breaker tool. Hopefully the main pulley doesn't turn out to be impossible (I've heard horror stories haha).
If you're free, I'm planning to tackle it on the 14th onward. The sooner the better, so PM me your availability from the 14th onward and we'll go from there. And of course, food and drinks are on me
~Ramy
Rob, who said anything about putting it back together? Maybe next time
Pat, pshhh...sure man. I'll def. welcome all the help I can get, esp. it being my first time and all. I'm prob gonna buy an air compressor, impact gun, and flywheel breaker tool. Hopefully the main pulley doesn't turn out to be impossible (I've heard horror stories haha).
If you're free, I'm planning to tackle it on the 14th onward. The sooner the better, so PM me your availability from the 14th onward and we'll go from there. And of course, food and drinks are on me
~Ramy
#19
The only time it's hard to pull the turbos is the first time.
#21
Senior Member
iTrader: (1)
Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Received 0 Likes
on
0 Posts
I am replacing the stock turbos with a single kit, eliminating all unnecessary vacuum lines, GZ LIM, and I think a new radiator so I figured the easiest thing to do might be to remove the block.
Oh well. I will try the penetrating oil one more time before pulling it out. Thanks for the tips.
#23
Full Member
iTrader: (1)
Join Date: Jun 2007
Location: Saskatoon
Posts: 194
Likes: 0
Received 0 Likes
on
0 Posts
Alright I am stuck

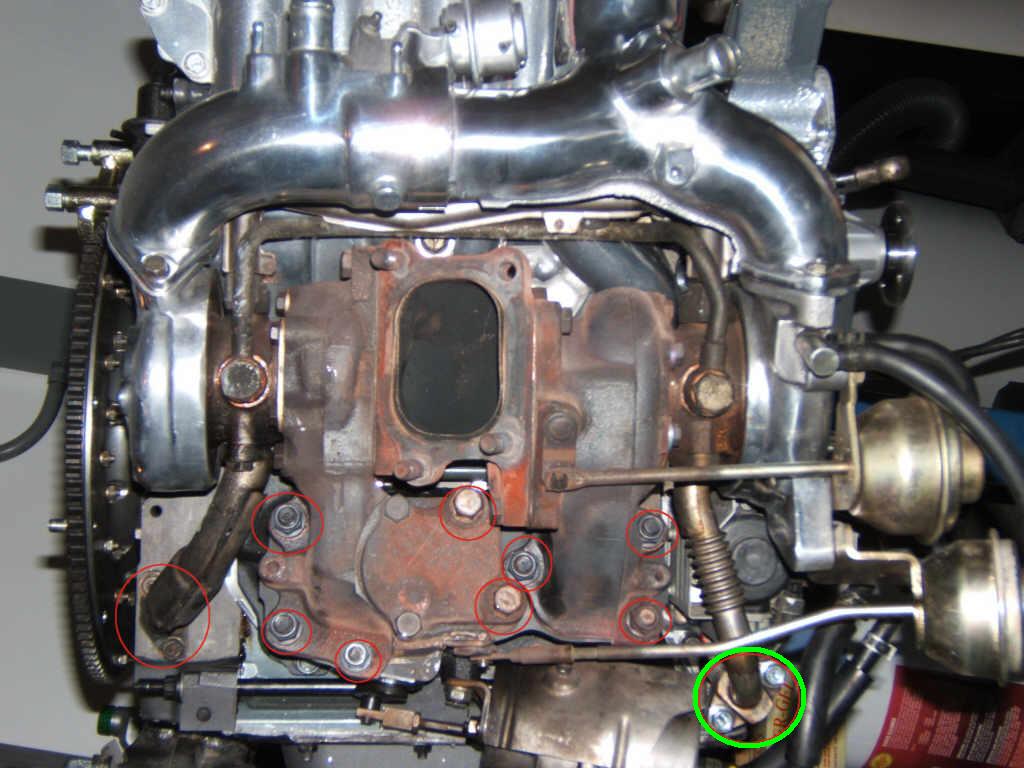

1992 JDM working on replacing the Twins out with OEM. I found so far the process not to be horrifying, however I am stuck on two last nuts needing help. They arnt on insane tight or stripped, its just I cannot get to them. Attached is the modified original picture posted at the top. Is it best to get this from top or under the car? I have been trying extentions, u joints, everything and no luck. HELP!!
