Has anyone got a pic of a stock standard exhaust system?, I have searched but you'd be suprised how hard it is to find one.

The reason I'm asking is that I've been told this exhaust system that this local guys selling off an FD is stock, but looking at it I wouldnt really know as my FD came with aftermarket.
This system only has two parts to it , down pipe and then that connects to a straight through exhaust right to the back to the muffler. I was of the understanding that stock FD system had 3 parts??

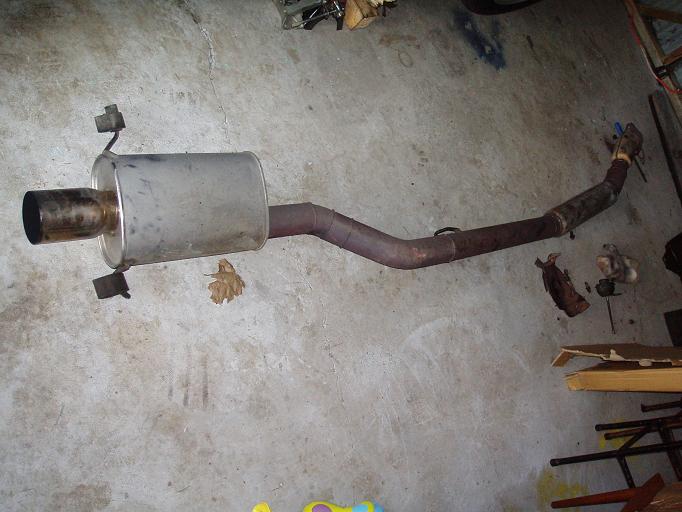

Only real pic i have of it.



Stock FD has a DP with a HUGE pre-cat, then the main cat, then the cat-back you see above... I HAD all 3 pieces and woulda taken a pic for you, but I sold the muffler =( Sorry dude.



i pretty certain the one that came with my car is standard but its jdm, so it might be different to the us spec fd. let me know and i can take a pic for ya



here is a pic of it



The first pic has the markings of a modified stock cat, looks like they cut the first few inches of the inlet off to use the flange, then welded up a 3" pipe all the way back to an aftermarket exhaust. Definitely not stock.



the guy wants like $30 for it, I might grab it, bolt it up and have try, cant hurt.
I heard it on his FD and it sounded pretty good



It does appear to be a resonator where the CAT should be so I would imagine it's not TOO loud...??? Just check it and make sure there's no leaks... $30 is cheap!



so is having a resonator ( where the CAT normally is ) like having a less restrictive CAT but less noise?



To my knowledge, it's like having no cat at all. It's main purpose is to make it quietier. However, putting this on your car may be harmful depending on what mods you have/don't have. Do a search for using a 'mid pipe', which basically means you don't have a cat. Most people i've spoken to don't advise to do such a thing, you'll learn why after you search.



the pic spekdah put up is the same as i took off my jdm fd (well, to where the catalyser was on his pic anyway - i have a catback system on there atm) if u put a silencer box instead of the cat it will be louder than it was with the cat but not as loud as mine will be im just decatting it and havin a straight thru . cops will love me! is it true that when u decat the fd u should put. whats the noise limits in the states? i think its 102db here.



I have the full exhaust for sale i was going to wait untill i got everything back (DP, stock IC, ect.)

PM me



I'm running series 7 twins with full non-seq mod including ported wastegate and a manual boost control tap.



A resonated midpipe is just a straight through pipe with a resonator to deaden sound but not restrict exhaust flow like a cat. Basically think of a "cherry bomb" or "glasspack". The outter diameter of the pipe will be larger so the inner flow would remain 3" and have room for the resonating materials. If that makes any sense at all. I'm terrible at explaining things.....
