Stock Alternator fitment issues
well i conducted a search and have not found any issues like the one i am having
first off, my alternator died on me last week, ok fine no big deal to change right? all is going smooth and i take out the stock alternator to replace it with an "aftermarket stock" alternator but i quickly find out it doesn't fit the stock mount bracket.. i have a 1992 rhd FD.. the fact that its a 1992 and a rhd shouldn't have an affect on the bracket size would it? i mean the alternator is sooo close to fitting and looks exactly the same.. its almost as if the machining process was just a few 16ths of an inch off..
has anybody ran into this issue before? i'm kinda stuck now and am trying to source out another alternator with no luck so far.. (not really interested in a rebuild btw)

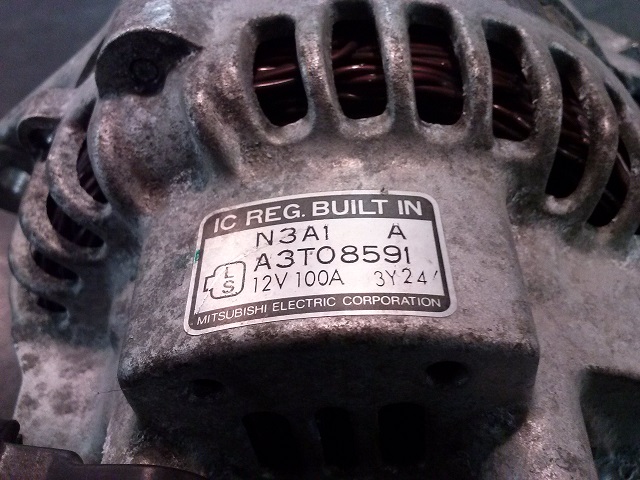

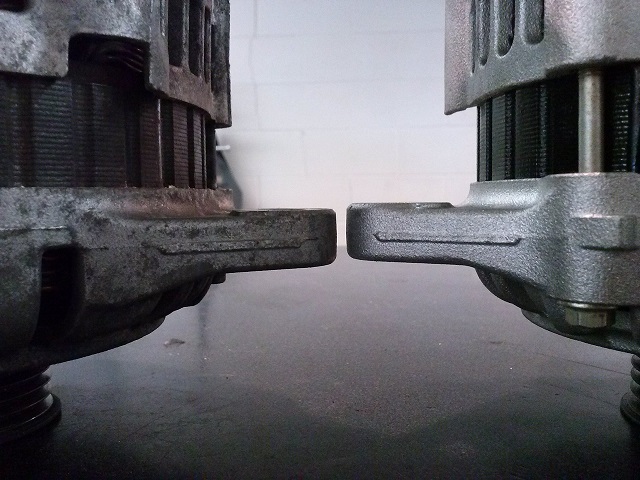

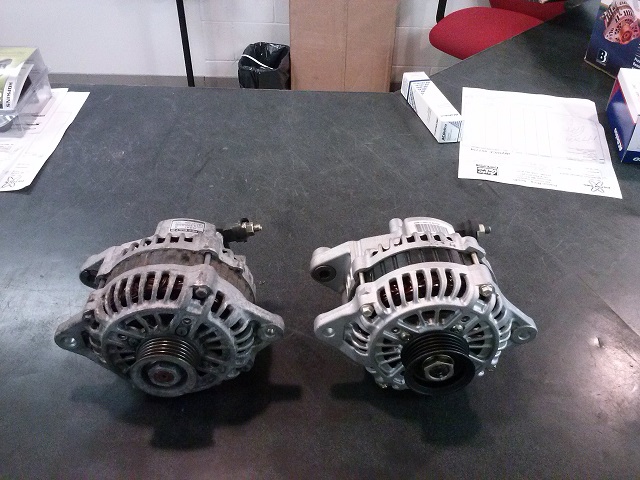

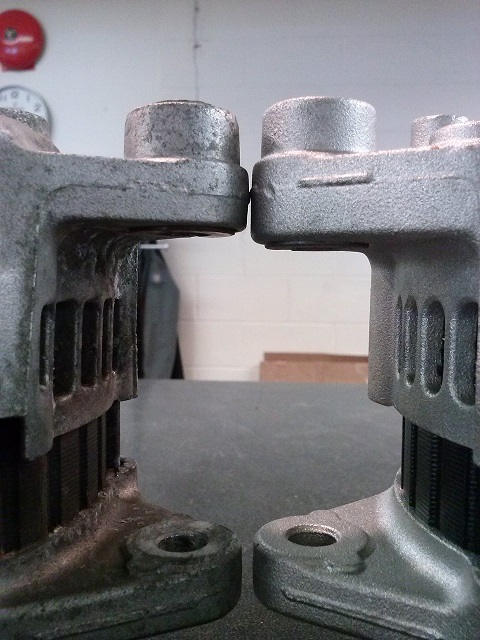

(pics - stock alternator on the left, aftermarket on the right, last pic is of stock tag)
first off, my alternator died on me last week, ok fine no big deal to change right? all is going smooth and i take out the stock alternator to replace it with an "aftermarket stock" alternator but i quickly find out it doesn't fit the stock mount bracket.. i have a 1992 rhd FD.. the fact that its a 1992 and a rhd shouldn't have an affect on the bracket size would it? i mean the alternator is sooo close to fitting and looks exactly the same.. its almost as if the machining process was just a few 16ths of an inch off..
has anybody ran into this issue before? i'm kinda stuck now and am trying to source out another alternator with no luck so far.. (not really interested in a rebuild btw)
(pics - stock alternator on the left, aftermarket on the right, last pic is of stock tag)
#4
PHEn_24
Thread Starter
yeah it was from a local store and i'll have no problem returning it, i might have to just swap the guts worst case scenario if i cant find another one. im a bit hesitant to grind down the tabs just in case something else is slightly off, and it'll probably void warranty. im hoping that maybe it was just a bad mold and not the jdm bracket being slightly different
#5
Senior Member
iTrader: (1)
Join Date: May 2002
Location: Houston, TX
Posts: 705
Likes: 0
Received 0 Likes
on
0 Posts
They appear to have used a completely different casting for the rear housing. Note the tab for the thru-bolt at 2 o'clock is square instead of round.
Why aren't you interested in a rebuild by a local shop? Chances are what you've bought is just a rebuild from China. I'm not aware of anyone selling these new anymore.
Why aren't you interested in a rebuild by a local shop? Chances are what you've bought is just a rebuild from China. I'm not aware of anyone selling these new anymore.
