Solution for the 90 degree elbow to the charge relief valve!

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Solution for the 90 degree elbow to the charge relief valve!

Old 03-25-14, 07:25 PM
  #1
RX-7 Bad Ass
Thread Starter
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,300
Received 294 Likes on 251 Posts
Thumbs up Solution for the 90 degree elbow to the charge relief valve!

Hey guys -

One of the guys here recently swapped out his turbos and had the 90 degree rubber hose that goes from the Y pipe to the charge relief valve break and crumble during the swapout. It's not out of the ordinary, that part sees a LOT of heat from the downpipe and just falls apart.

The stock part number is n3a1-13-765 and it should be about $12 or so from Ray.

I've replaced mine in the past, had it harden, and had to replace it AGAIN. Bleh.

Well, found this -

Amazon.com: HPS (HTSEC90-075-BLK) Black 3/4" 90 Elbow Silicone Hose Coupler: Automotive Amazon.com: HPS (HTSEC90-075-BLK) Black 3/4" 90 Elbow Silicone Hose Coupler: Automotive


It's part number HTSEC90-075-BLK, it's a 90 degree 3/4"/19mm ID black silicone hose. From Amazon it's just shy of $19 with free shipping if you have Prime. It's also available from tons of other places, Google the part number.

First impressions are good, the hose fits VERY snugly on the stock Y-pipe nipple. The hose is WAY long, but that could easily be cut down. Good part is when you cut it down you'll have extra silicone lenghts that could be used for other parts - the hose to the stock BOV, or the hose going to the intake.

It's very thick wall and reinforced.

I would get some Norma Torro hose clamps to go along with it. McMaster-Carr part number 5076K15, $8.46 for a pack of 10. If you haven't used N-T hose clamps, they are GREAT. Tighten super snug, all stainless, and don't cut into silicone hose. I have all my IC piping and intake plumbing done with them. Reasonably priced, too.

One last tip - to evenly cut silicone hose, put a hose clamp around the hose and snug it down. Run a razor knife or razor blade along the hose clamp, using it as a guide to keep your cut straight. Beats the hell out of a ragged nasty cut.

Dale
DaleClark is offline
Old 03-25-14, 08:30 PM
  #2
Rotary Enthusiast
10 Year Member
iTrader: (25)

Peruvianrx7's Avatar

Join Date: Sep 2003
Location: Melbourne, FL
Posts: 1,440
Likes: 0
Received 0 Likes on 0 Posts
Pics.?
Peruvianrx7 is offline
Old 03-25-14, 10:50 PM
  #3
Senior Member
iTrader: (10)

needspartsnow's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 283
Received 2 Likes on 2 Posts
Damn it. I just bought one of those a few months ago at the dealership for like $45....
needspartsnow is offline
Old 03-26-14, 01:49 PM
  #4
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,581
Received 117 Likes on 84 Posts
in for pics
Narfle is offline
Old 03-27-14, 10:23 AM
  #5
Eye In The Sky
iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In Our Heads
Posts: 7,645
Likes: 0
Received 14 Likes on 12 Posts
The best solution is to go single turbo.
cewrx7r1 is offline
Old 04-02-14, 07:56 PM
  #6
RX-7 Bad Ass
Thread Starter
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,300
Received 294 Likes on 251 Posts

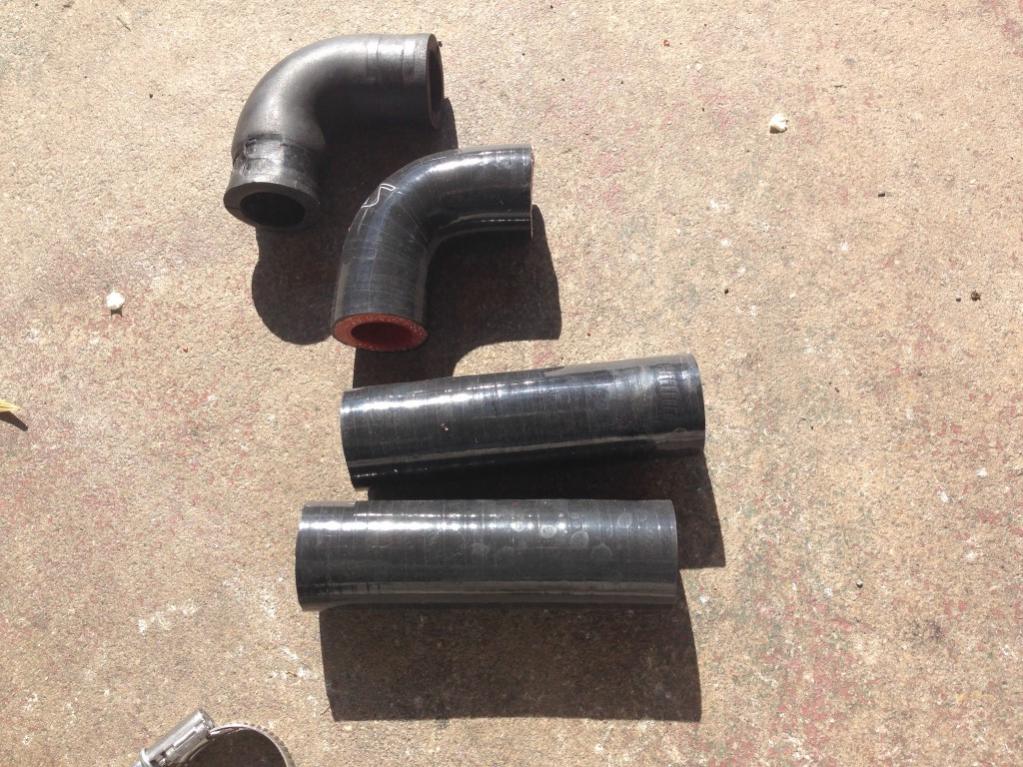

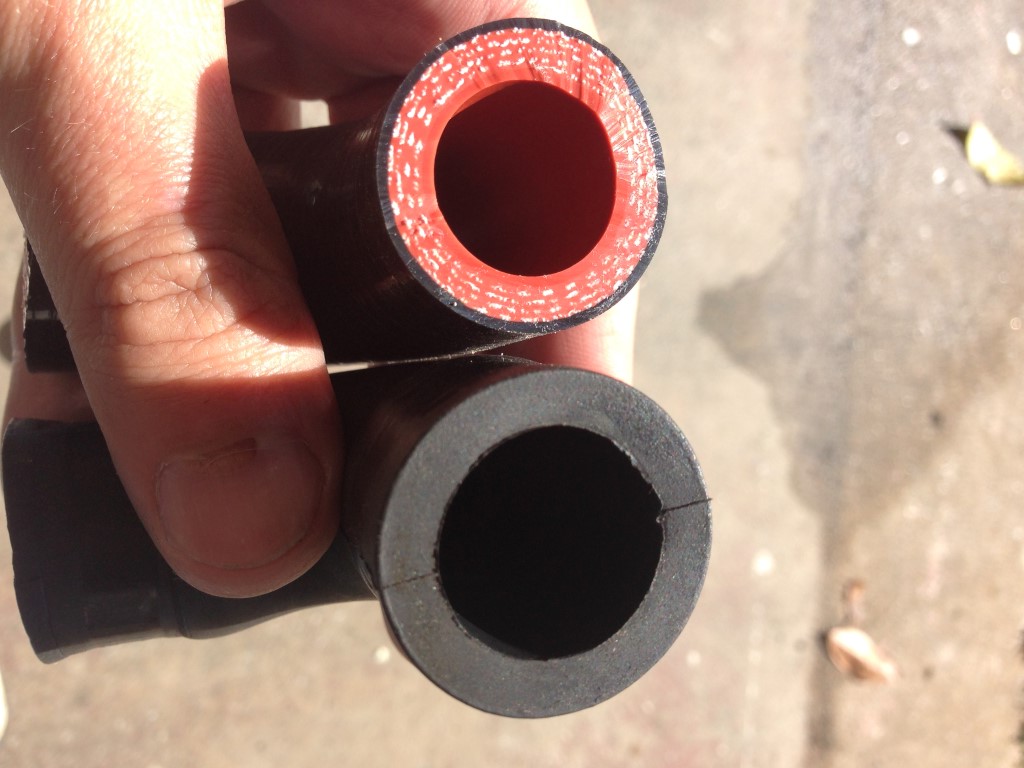

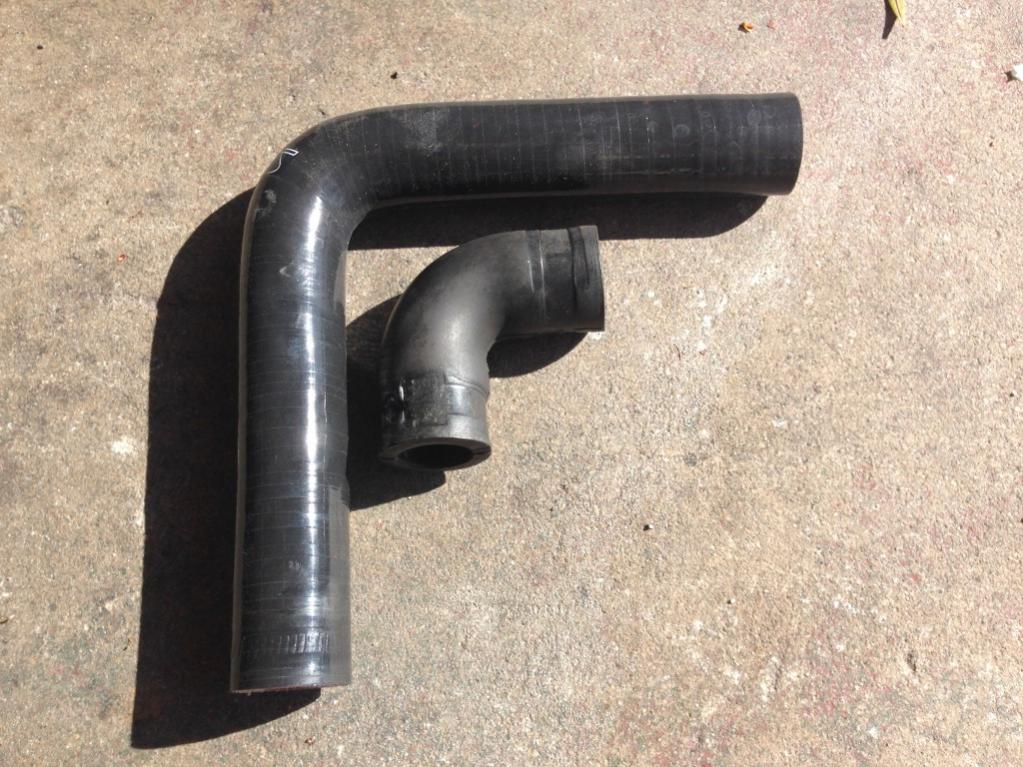

OK, you asked for it, you got it. Pics!

So far so good, fits perfectly, works perfectly.

I also ordered the 45 degree version of the hose for the hose going from the Efini Y-pipe to the blowoff valve. If you have the original Y-pipe, another 90 degree hose would do the trick there.

Dale
Attached Thumbnails Solution for the 90 degree elbow to the charge relief valve!-img_1323.jpg   Solution for the 90 degree elbow to the charge relief valve!-img_1326.jpg   Solution for the 90 degree elbow to the charge relief valve!-img_1327.jpg
DaleClark is offline
Old 04-02-14, 08:25 PM
  #7
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,321
Received 171 Likes on 148 Posts
Thanks for this. Mine isn't leaking or cracked, but I know it's harder than a *****'s heart and I'm probably on borrowed time.
Sgtblue is offline
Old 04-02-14, 08:56 PM
  #8
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 10,978
Received 49 Likes on 44 Posts
nice find
__________________
http://irperformance.com
Engine builds, single turbo kits, parts sales, performance upgrades, maintenance, tuning
732-662-1794 [email protected]
Brand new Mazda oem 13brew motors available. $4699 NO CORE FEE. VERY LIMITED. Check out our new turbo kits http://www.irperformance.com/product...zda/rx7/turbo/
