rollcoal

iTrader: (5)

I started working on the single turbo harness with my girlfriend and i noticed the brown/white wire got cut off the tps somehow.. anyways can someone tell me which pin it goes to because there are 2 brown/white on the ecu connector side. Nothing had been depinned just cut and brought all the way down to the end and left stranded. Also there were 3 connectors that are attached with the fuel temp sensor... can anyone name all 3? because i have 1 left on that loop and can't identify it. thanks

cr-rex

iTrader: (114)

Second wire from the bottom with the clip facing you. What do you mean 3 connectors with the fuel temp? Can you post a picture?

rollcoal

iTrader: (5)

sorry should post my update.. i followed the wire all the way through and looked at the pin out. The fuel temp, omp, and coolant switch were all connected tied together, since i deleted my imp and fuel temp switch i had 2 wires cut and 1 left.. i found out it was my coolant sensor, so I'm gonna have to cut the junction point and resolver the single wire for the coolant sensor. as for the tps i looked up the pin out on the tps and the ecu connector and found the wire i needed.. i must of got tired when i was doing this and took the lazy way and made a thread about this when i solved it out myself aha.. but i don't have a question.. i have a blue connector by the 2 ecu yellow connectors.. whats that connector for and does anyone have a pin out for it?

cr-rex

iTrader: (114)

The blue plug connects to the front harness where it comes through in the passener foot well. There should be a bundle of plugs above the ecu.

rollcoal

iTrader: (5)

yea I'm aware of that, i just want the pin out for that because i have a left over wire from somewhere

cr-rex

iTrader: (114)

oh, my bad... which wire? i have a harness here that i can look at/take a picture of for you

rollcoal

iTrader: (5)

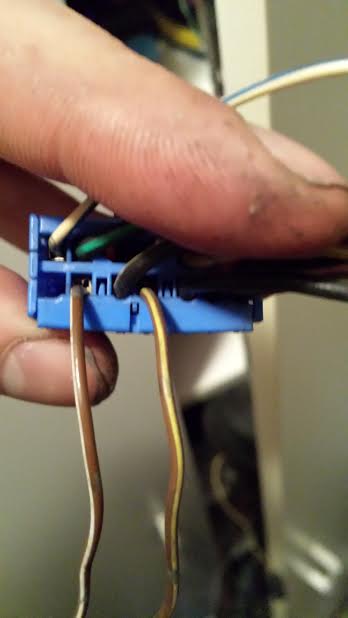

theres actually 2 wires



let me know if you need better pictures, thanks for your help

cr-rex

iTrader: (114)

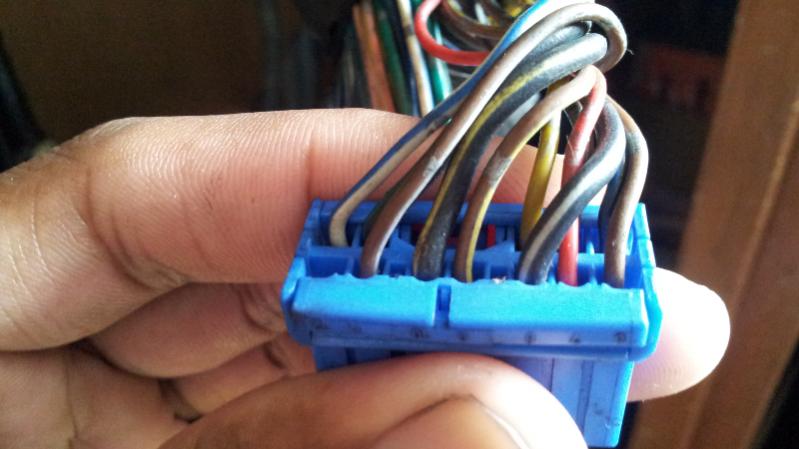

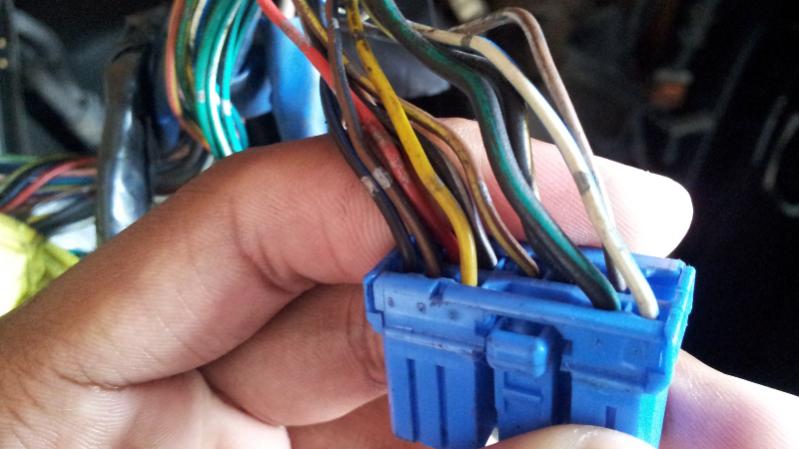

This works for you?

rollcoal

iTrader: (5)

I'm trying to figure out where those 2 dangling wires go.. If you can trace them up to where they go that would be awesome!
