I have a greddy FMIC and I'm lookign to conenct it to a 62-1 that has a 2.5" outlet. The greddy couplers have an ID of 2.75". I need to connect the IC pipe to the compressor outlet via a 90o silicone coupler. I've foudn them for a good price in 2.5", I'm wondering how well this will work on the slightly oversized IC piping.

I have yet to find a 2.5" to 2.75" 90o silicone elbow.

Also please don't recommend welding on an aluminum elbow as I've chosen not to do this for resale reasons.

Thanks for your help/opinions,
- Cody



I can't recall seeing an elbow of any size with different diameters at each end, all I've ever seen are short straight hoses. Is there not room to use an elbow and a reducer?



www.siliconehose.net



^ Well lookie there!

http://www.turboxs.com/shop1.php?what_category=31


...but there's no 2.5 to 2.75



honestly i would give them a call, that site is still under devolpement and i woudlent be suprised if they had one in the warehouse.

cant hurt...



yeah, same with e-bay. I've foudn 4 ply ones on ebay for $26 shipped. constant 2.5" ID kept throughout the elbow


basic question i guess is will the 2.5" stretch over the 2.75 easily enough?



they should have fiber layed in with the silicone, that will break before it stretches.

good luck tho.



even just that little bit? i know they are reinforced but it only needs to stretch 1/4"

I guess I'll just give it a try. I figured someone would knwo from experience, how is everyoen else plumbing single turbos?



I agree with XSTransAm. If a coupler could stretch that much you wouldn't want to use it in the first place. Only be a matter of time before it splits.



hmm, what my solutions then? I could get a small section of 2.5" aluminum pipe, weld it to the end of the 2.75 and then bead the end.

Problems are:

I don't have a pipe beader, section of 2.5" pipe, or an aluminum welding setup

. Anyone happen to have a small piece lying around



I don't know if they make that, but here's some additional options...

http://www.atpturbo.com/Merchant2/me..._Code=SIL-90EL



How much space are you working with? You could get the 2.5" elbow and use a small section of aluminum pipe to step up from 2.5" to 2.75" and couple that section to the intercooler inlet.



what about a 2.5-3 inch? Think the 3" will seal well enough on a beaded 2.75" pipe? I've got nice thick t-bolt clamps



Just use 4" of 2.5" pipe and butt the 2.5" elbow and 2.5" to 2.75" coupler together over the pipe. I doubt it will come loose.

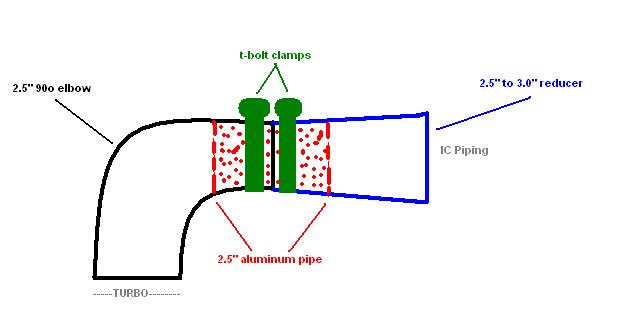

something like this?



Yes, exactly.

EDIT: but use a 2.5" to 2.75" reducer.



Try this web site. I found a straight 2.75 to 2.50 straight, perhaps you can look a bit further and find a 90 degree one. Jack
http://www.extremepsi.com/store/cust...cat=341&page=2



no those are all HighTemperatureSilicone products, they don't make one.



http://www.atpturbo.com/Merchant2/me..._Code=SIL-90EL

2.5" to 3". ATP turbo has tons of neat stuff - VERY handy to have bookmarked if you have a single turbo!

Also - http://www.injen.com/hose.html

Injen has a 2.5" to 2.75" elbow. I've seen their elbows in person, and they're VERY nice.

Dale



So your looking for rubber ???



SAMCO makes what you are looking for...in fact, I bought one

http://www.sporthoses.com/parts/FMPr...-max=all&-find



no that is the brand name. They have their own website and they don't list that part.


This sucks, i just bought the two seperate pieces from eBay. Now I find exactly what I need, DAMMIT!

Where were you guys 2 hours ago.
