Side Door Panel Random Wires ?
Thread Starter
Junior Member
Joined: Jun 2020
Posts: 38
Likes: 1
From: Ontario
Side Door Panel Random Wires ?

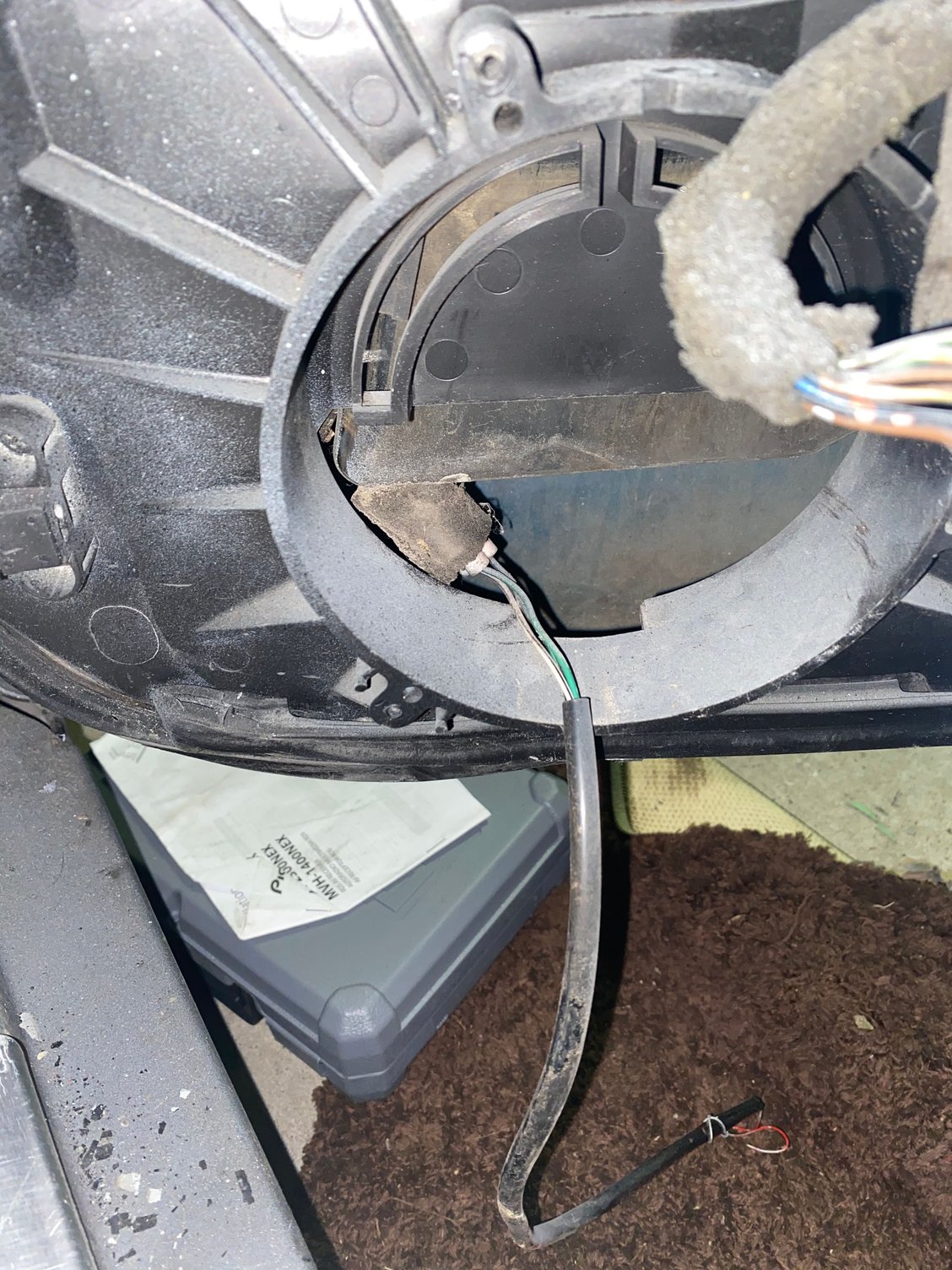

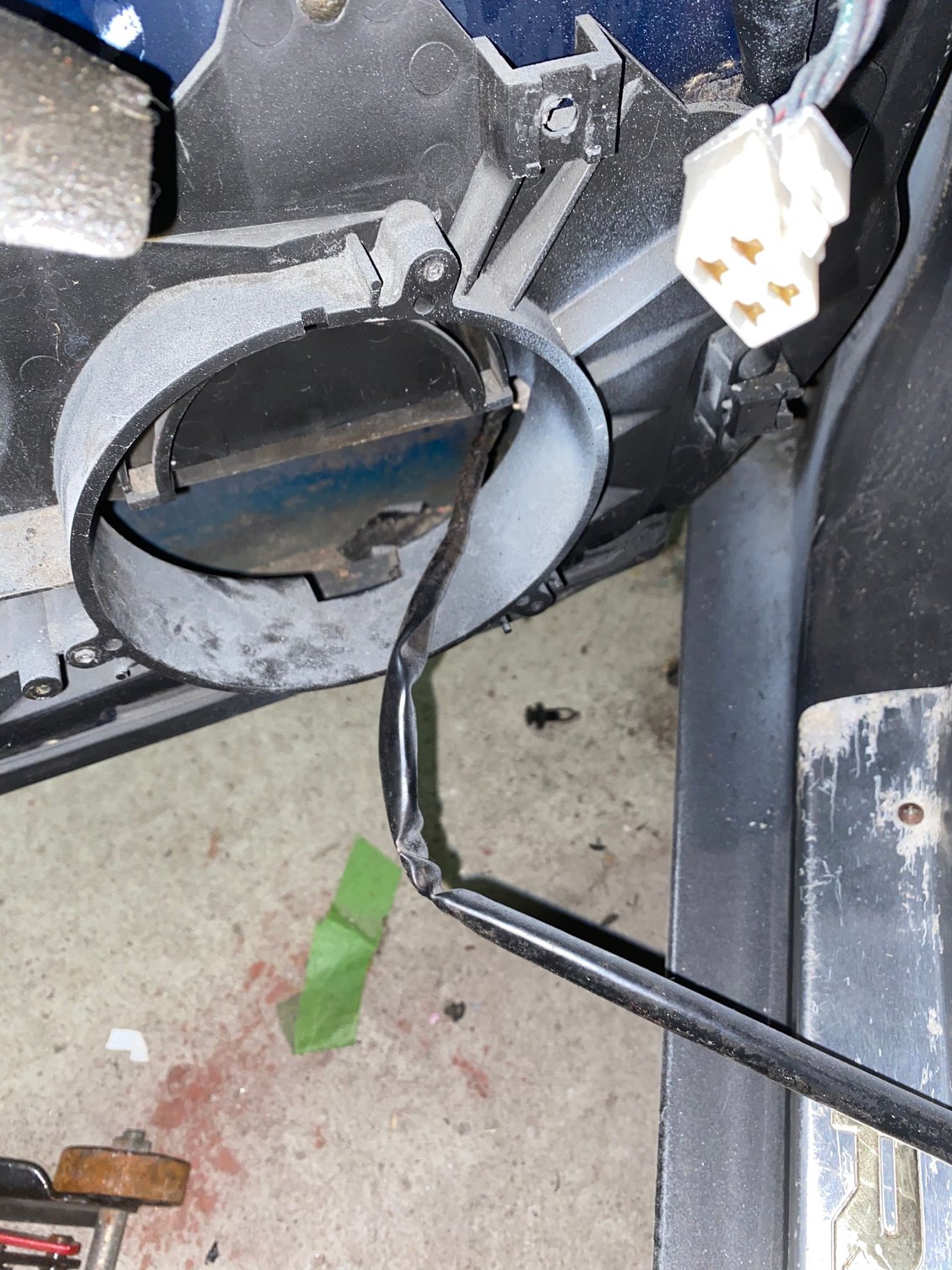

After removing my door panel speakers I noticed a loose wire behind both of my speakers. Can anyone tell me what these wires are for? Maybe power mirrors ?
Joined: Mar 2001
Posts: 31,835
Likes: 3,233
From: https://www2.mazda.com/en/100th/
i don't know, but link to the shop manuals is here Foxed.ca - Mazda RX-7 Manuals
Yeah I think that's the wire going to the mirrors for power adjustment. Do you have non-stock side mirrors?
You can double-check the wiring colors in the wiring diagram.
Dale
You can double-check the wiring colors in the wiring diagram.
Dale
Newly Rebuilt
Joined: Aug 2020
Posts: 112
Likes: 43
From: Australia

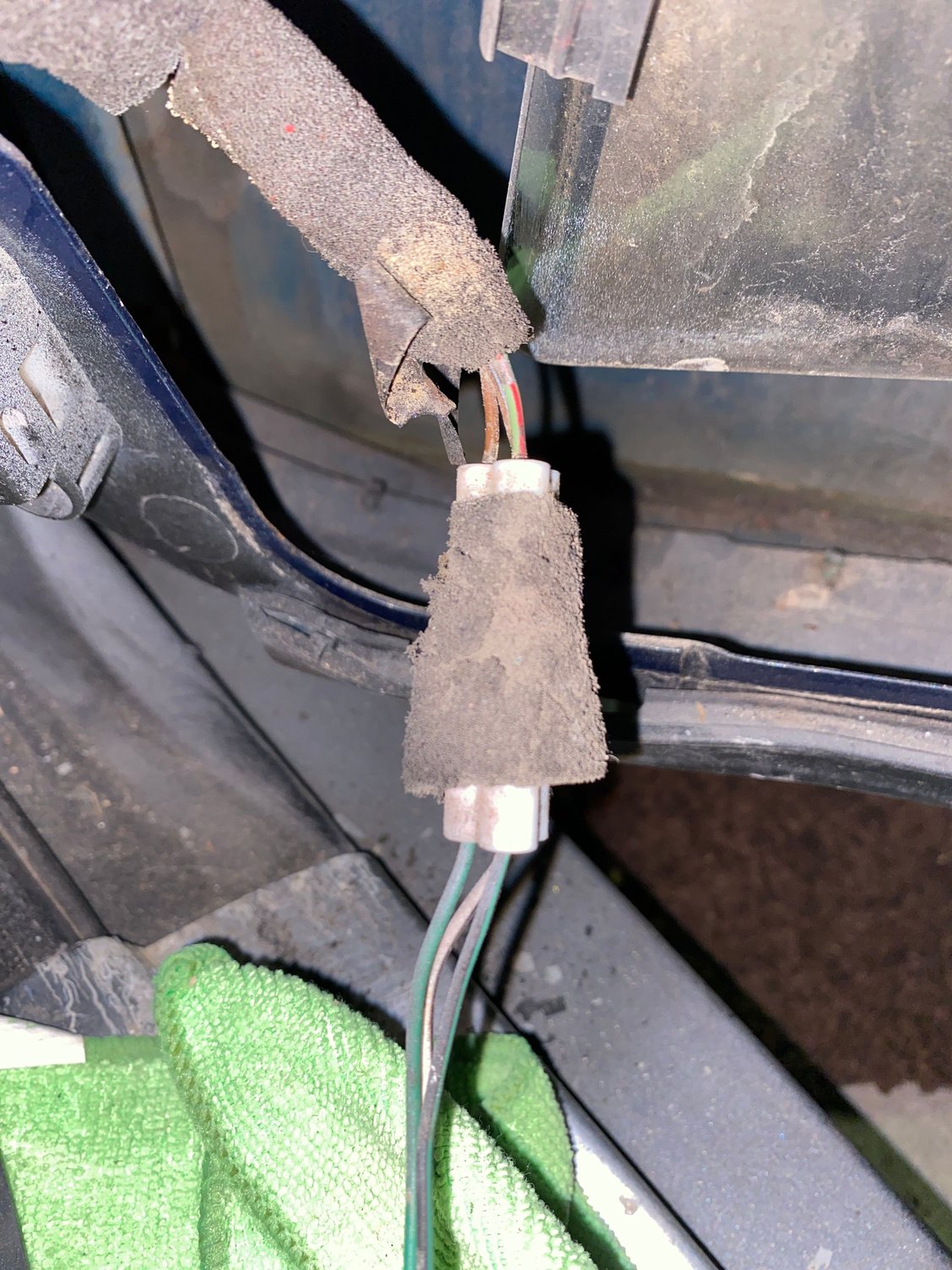

It could be the power window switch cables, colors look about right...
But there looks to only be 3 wires and I'm sure you would have noticed if they weren't working.
The power mirror connectors are 3 wire plugs, take a look at the wire colors on the other side of the connector to see if they match up
But there looks to only be 3 wires and I'm sure you would have noticed if they weren't working.
The power mirror connectors are 3 wire plugs, take a look at the wire colors on the other side of the connector to see if they match up
Last edited by Axton; Aug 14, 2020 at 09:38 AM.
Thread Starter
Junior Member
Joined: Jun 2020
Posts: 38
Likes: 1
From: Ontario
It could be the power window switch cables, colors look about right...
But there looks to only be 3 wires and I'm sure you would have noticed if they weren't working.
The power mirror connectors are 3 wire plugs, take a look at the wire colors on the other side of the connector to see if they match up
But there looks to only be 3 wires and I'm sure you would have noticed if they weren't working.
The power mirror connectors are 3 wire plugs, take a look at the wire colors on the other side of the connector to see if they match up
