Old 11-03-10, 12:52 AM
  #76
Bubblicious DEF.

iTrader: (36)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,265
Likes: 0
Received 4 Likes on 4 Posts
blue that looks dope! just wish the pics were bigger so i can admire and learn from your idea!
Old 11-03-10, 01:07 AM
  #77
I can has a Hemi? Yes...

iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,371
Likes: 0
Received 4 Likes on 3 Posts

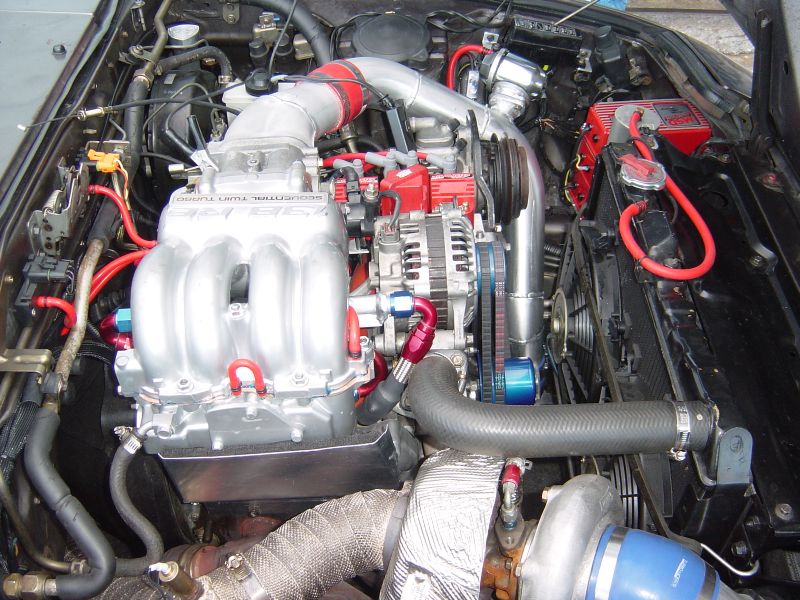

Attached Thumbnails save the whales... save your MOTOR chapter two-passenger-side.jpg
Old 11-03-10, 06:20 AM
  #78
Senior Member

iTrader: (2)

blue87's Avatar

Join Date: Mar 2001
Location: Dearborn, MI
Posts: 255
Likes: 0
Received 1 Like on 1 Post
thanks guys for the comments .. I will see if I can find the original pic on my phone and upload a larger one. I will try and take a pic of the pie in teh car if I can today but the car is at work so it may not be possible until this weekend...
Old 01-05-11, 04:22 AM
  #79
Bubblicious DEF.

iTrader: (36)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,265
Likes: 0
Received 4 Likes on 4 Posts
anybody think about making LIM/UIM gasket out of mica? wondering if it will seal... but should help with heat transferring?
Old 01-07-11, 10:37 AM
  #80
Senior Member

iTrader: (7)

indio84's Avatar

Join Date: Jun 2007
Location: aruba
Posts: 651
Likes: 0
Received 0 Likes on 0 Posts
gr8 thread again by HC.

thanks
Old 01-07-11, 02:39 PM
  #81
Turbo Lover

iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 783
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by doofy
Just wondering if anyone has pictures of what they've done for the stock turbos.

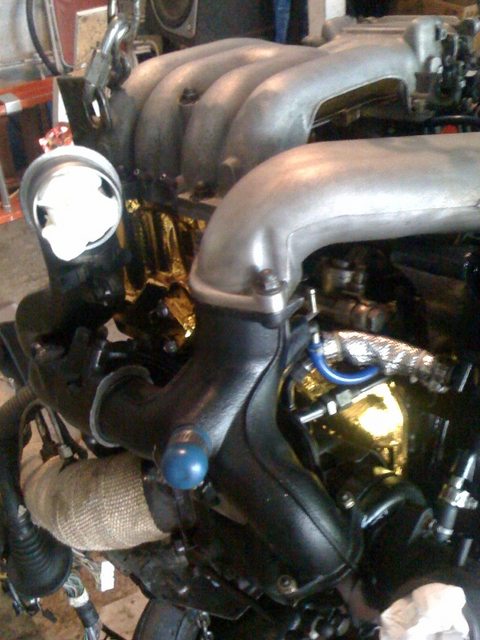

I wrapped the entire LIM in DEI gold tape. Seems to do the job.

save the whales... save your MOTOR chapter two-z3oz3l.jpg
Old 01-07-11, 02:46 PM
  #82
Turbo vert

iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
[QUOTE=Ball joint;10402934]I wrapped the entire LIM in DEI gold tape. Seems to do the job.]


thought you had a single. My thoughts were wrong. you driving that thing now?
Old 01-07-11, 02:53 PM
  #83
r074r'/ |\|00B

iTrader: (14)

Join Date: Jan 2002
Location: KC, KS
Posts: 922
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Ball joint
I wrapped the entire LIM in DEI gold tape. Seems to do the job.
this the stuff?

http://www.amazon.com/010397-Reflect.../dp/B0039Z1V1K
Old 01-07-11, 03:14 PM
  #84
Turbo Lover

iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 783
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by doofy
Yep, that's the stuff. I did the entire LIM and the underside of the UIM.
Old 01-07-11, 03:17 PM
  #85
Turbo Lover

iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 783
Likes: 0
Received 0 Likes on 0 Posts
[QUOTE=just startn;10402956]
Originally Posted by Ball joint
I wrapped the entire LIM in DEI gold tape. Seems to do the job.]


thought you had a single. My thoughts were wrong. you driving that thing now?
Been driving it for seven years now, but never in the winter. It's got pretty much everything but a single turbo. I'll probably have non sequential BNR stage 3's on it for next year.

I'd rather build the car to be responsive and have a more progressive powerband. Single turbos are fun, but I don't like how the power comes on like a off/on switch. Maybe if I was still street racing I'd go for bigger power but I don't do that very much anymore. That and unless you're making 500+whp you're wasting your time.
Old 01-07-11, 03:56 PM
  #86
r074r'/ |\|00B

iTrader: (14)

Join Date: Jan 2002
Location: KC, KS
Posts: 922
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Howard Coleman CPR
mica sheet ultra high temp

http://www.mcmaster.com/#mica/=9ipezt
Are those mica sheets adhesive & flexible like the gold tape mentioned above? The mica seems as it would be a better shield than the gold.
Old 06-11-11, 09:48 PM
  #87
Senior Member

iTrader: (10)

red_dragon's Avatar

Join Date: May 2006
Location: Bay Area, CA
Posts: 619
Received 1 Like on 1 Post
Reviving thread!

Howard, do you have any suggestions for those of us with stock twins or BNRs? Are there any turbo blankets that would fit?
Old 06-12-11, 03:02 AM
  #88
Radioactive Rotary Rocket


GodSquadMandrake's Avatar

Join Date: Aug 2005
Location: Minneapolis, MN
Posts: 1,061
Likes: 0
Received 0 Likes on 0 Posts
Great thread! I had no idea this was happening. Thanks so much Howard.
Old 08-10-11, 01:58 PM
  #89
Rotary Enthusiast

iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 3 Likes on 3 Posts
Is it pretty bad if the turbo blanket touches the lim? I have a t04r and it sits very close to the lim, I squeezed on a turbo blanket but I'm worried about it cause it is like smashed inbetween the turbo and lim, although the lim does have some really good high temp heat reflective tape on it. The cheap turbo blanket seems to hold in the radiant heat good, unlike the cheap exhaust wrap on the downpipe and exhaust manifold, I need to use the dei titanium wrap from my stock turbos down pipe which worked better I think. I also want to get a pettit heat shield, cheap and effective. Good thread. thanks
Old 08-10-11, 10:48 PM
  #90
Original Gangster/Rotary!


iTrader: (213)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 30,529
Received 539 Likes on 326 Posts
Originally Posted by red_dragon
Reviving thread!

Howard, do you have any suggestions for those of us with stock twins or BNRs? Are there any turbo blankets that would fit?
I'd recommend using all the OEM heat shields. Typically at IRP cars leaving with twins get the exhaust manifold, LIM and heat shields coated in 3600 degree cerama-black. The downpipe gets wrapped in the new DEI titanium lavarock wrap. This is for cars seeing track duty, and/or if the owner is concerned about heat management.
Old 08-11-11, 10:28 AM
  #91
Highwayman


chiefboon's Avatar

Join Date: Nov 2008
Location: Houston
Posts: 570
Likes: 0
Received 0 Likes on 0 Posts
Can you discuss the differences between the cerama-chrome and cerama-black coating I've seen from your shop? Really love the chrome look but realize it is likely more expensive. Curious if it is equally effective.

Originally Posted by GoodfellaFD3S
I'd recommend using all the OEM heat shields. Typically at IRP cars leaving with twins get the exhaust manifold, LIM and heat shields coated in 3600 degree cerama-black. The downpipe gets wrapped in the new DEI titanium lavarock wrap. This is for cars seeing track duty, and/or if the owner is concerned about heat management.
Old 08-11-11, 11:11 AM
  #92
Wastegate John

iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes on 9 Posts
^The cerama-black has a higher heat rating than the chrome.


John
Old 08-11-11, 11:43 AM
  #93
Highwayman


chiefboon's Avatar

Join Date: Nov 2008
Location: Houston
Posts: 570
Likes: 0
Received 0 Likes on 0 Posts
As I believe it generally jives with the purpose of this thread, where does IRP send out for their coating and what is the price generally, for a LIM, downpipe, UIM, etc. to be coated? (both cerama-black and cerama-chrome)
