RX-7 FD3S Titanium front Strut bar.
03-28-05, 01:32 PM
#4
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts

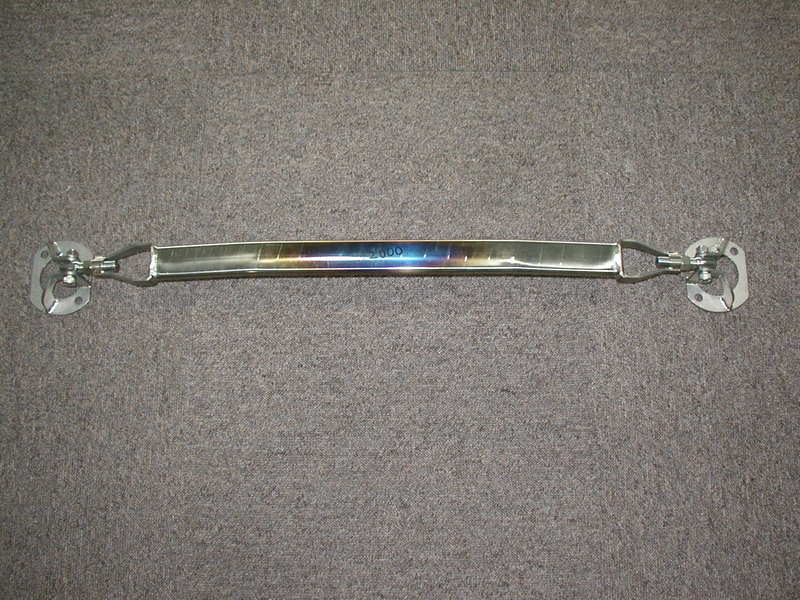

Isn't the top one for a S2000? I've seen the bottom style but the burned center makes no sense to me. Maybe if you wanted to match a burned tail pipe? I don't like it and I love titanium. The end peices look weak and I can't tell if they are aluminum or not. I prefer the clean Cusco (titanium) version with beefy end peices, but everyone has their own taste.
Last edited by GoRacer; 03-28-05 at 01:35 PM.
03-28-05, 07:16 PM
#6
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
^ yes, you can view it on takakaira's web site. It's about $300 + maybe $50 shipping. I was going to have a custome one made but mine would just have been a round tube and not as nice as the Custco version.
03-28-05, 07:20 PM
#7
Wonder what it weighs compared to the aluminum ones. Seems like most of the weight is in the strut pieces and not the bar. On the web site, says 570g for the Ti front bar. I weighed my cork sport and it was 3lb 2 ounces. 570g is equal to 1.26 pounds.
Tim
Tim
Last edited by Tim Benton; 03-28-05 at 07:28 PM.
Trending Topics
03-29-05, 12:18 AM
#9
Has it really come down to the point that we need to save weight on strut bars?? LOL
Titanium tho...mmm...yummy. As for the burned center...I think they're trying to imitate the titanium exhausts w/ burned tips...(which looks good IMO). Burned center on a strut bar...ehh...not my taste
Titanium tho...mmm...yummy. As for the burned center...I think they're trying to imitate the titanium exhausts w/ burned tips...(which looks good IMO). Burned center on a strut bar...ehh...not my taste
03-29-05, 12:21 AM
#10
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
I don't think its exactly for weight savings. Titanium is stronger than aluminum, so it'd be harder to bend and so on. It'd kinda be like having a full steel strut bar, but at the weight of an aluminum one.
-Alex
-Alex
03-29-05, 12:36 AM
#12
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by FDNewbie
Alex, I considered that for a sec, but from my *limited* knowledge, I have yet to hear of someone actually bending their strut bar??
-Alex
03-29-05, 12:39 AM
#13
rain + FD = oops
Join Date: Jan 2005
Location: so Cal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
its not that you would bend it per say. but the bar will flex less! a lot less. and its not for the weight savings. Aluminum is actually much LIGHTER than titanium.
density of aluminum: 2700 kg/m3
density of titanium: 4500 kg/m3
density of aluminum: 2700 kg/m3
density of titanium: 4500 kg/m3
Last edited by fallenengel; 03-29-05 at 12:42 AM.
03-29-05, 12:41 AM
#15
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fallenengel
its not that you would bend it per say. but the bar will flex less! a lot less. and its not for the weight savings. Aluminum is actually much LIGHTER than titanium.
density of aluminum: 2700 kg/m3
density of titanium: 4700 kg/m3
density of aluminum: 2700 kg/m3
density of titanium: 4700 kg/m3
-Alex
Last edited by TT_Rex_7; 03-29-05 at 12:48 AM.
03-29-05, 12:44 AM
#16
rain + FD = oops
Join Date: Jan 2005
Location: so Cal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TT_Rex_7
Aluminum is lighter, but it'll take more aluminum to equal the strength of alot less titanium. Because of that, an aluminum strut bar will be heavier than the titanium. That is if its a high quality strut bar.
-Alex
-Alex
03-29-05, 12:45 AM
#17
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fallenengel
Yes but the titanium bar would have to be equal in size to the aluminum bar to be stronger. If it was built to be just as strong as the aluminum, then yes it would be lighter since you'd be using less material. But if you want to increase rigidity, you would need to use more than that amount.
-Alex
03-29-05, 12:49 AM
#18
rain + FD = oops
Join Date: Jan 2005
Location: so Cal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
the rigidity modulus of titanium is 44/GPa as opposed to 27/Gpa for aluminum. So titanium is about 1.5 times as rigid. However these things don't scale linearly so you would probably need about half as much titanium for the same strenght as an aluminum bar. I think for bars it scales quadratically.
03-29-05, 12:52 AM
#19
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fallenengel
the rigidity modulus of titanium is 44/GPa as opposed to 27/Gpa for aluminum. So titanium is about 1.5 times as rigid. However these things don't scale linearly so you would probably need about half as much titanium for the same strenght as an aluminum bar. I think for bars it scales quadratically.
-Alex
Edit: I think its grade 2 titanium. Either way, if these guys are weighting their aluminum strut bars, and they are heavier than the titanium ones, that pretty much sums it all up right there.
Last edited by TT_Rex_7; 03-29-05 at 12:54 AM.
03-29-05, 01:01 AM
#20
rain + FD = oops
Join Date: Jan 2005
Location: so Cal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
aluminum is not a lot weaker, especially 6061. Even if you needed twice as much aluminum to make a bar as strong as the titanium one, you would only save 20% on weight.
quicky calc:
2units of aluminum * 2700kg/m3 = 5400
1unit of titanium * 4500kg/m3 = 4500
20% weight savings....big whoop. if you wanna trim 1 lb off of your car then lose some weight yourself. but I will state again that the titanium bar is not for weight savings, it is for the rigidity.
quicky calc:
2units of aluminum * 2700kg/m3 = 5400
1unit of titanium * 4500kg/m3 = 4500
20% weight savings....big whoop. if you wanna trim 1 lb off of your car then lose some weight yourself. but I will state again that the titanium bar is not for weight savings, it is for the rigidity.
03-29-05, 01:04 AM
#21
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fallenengel
aluminum is not a lot weaker, especially 6061. Even if you needed twice as much aluminum to make a bar as strong as the titanium one, you would only save 20% on weight.
quicky calc:
2units of aluminum * 2700kg/m3 = 5400
1unit of titanium * 4500kg/m3 = 4500
20% weight savings....big whoop. if you wanna trim 1 lb off of your car then lose some weight yourself. but I will state again that the titanium bar is not for weight savings, it is for the rigidity.
quicky calc:
2units of aluminum * 2700kg/m3 = 5400
1unit of titanium * 4500kg/m3 = 4500
20% weight savings....big whoop. if you wanna trim 1 lb off of your car then lose some weight yourself. but I will state again that the titanium bar is not for weight savings, it is for the rigidity.
I was just simply saying that it will be lighter regardless.-Alex
03-29-05, 01:08 AM
#22
rain + FD = oops
Join Date: Jan 2005
Location: so Cal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
It wasn't directed solely at you Alex, just other members who would try to justify spending 300+ dollars for a weight savings of 1lb. I mean if you want a titanium bar for the looks/brags thats cool. I personally think it looks good too. But 300 bucks??? i need apex seals
03-29-05, 01:10 AM
#23
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fallenengel
It wasn't directed solely at you Alex, just other members who would try to justify spending 300+ dollars for a weight savings of 1lb. I mean if you want a titanium bar for the looks/brags thats cool. I personally think it looks good too. But 300 bucks??? i need apex seals
-Alex
