I bought a re v mount and I can't figure out how the radiator bolts up. Does anyone know or better yet have some pics?



ttt



Well this is disapointing



COD4 tonight?



maybe i'm not sure



Take some pics of the brackets and we should be able to help you out. I am working on my own V-Mount now and there are only so many places for the brackets.
I believe the main reason you won't see any installs is because RE wanted to keep the bracket design secret so that it could not be copied...



What part do you need to know, they are all preety self explanatory, there are 2 big bracket that bolt up to the front tow hooks and 2 small L shape aluminum pieces that mount on the sides of the cross bar

You can pm your # and I can call you when I get home from work and explain it better.

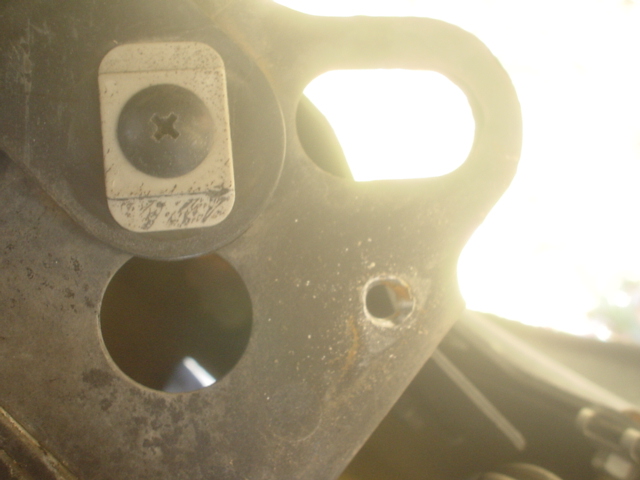

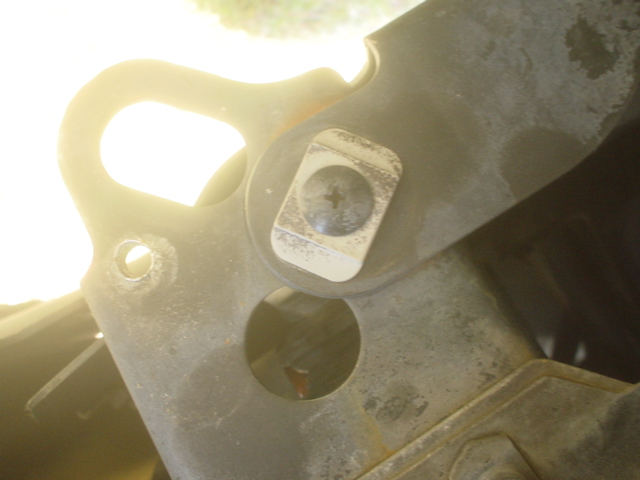

This is where I mounted the bottom radiator support, using the hole the plastic screw was in before holding the plastic peice up.


With the bottom mounted that way the top hits this thing, there seems to be no way I could install the black cross bar this way


Another pic of how high the top of the radiator sits


Which leaves the intercooler like this. Keep in mind this is without the black cross bar, it would sit way higher with it.



you delete the black crossbar, you dont use it...you are preety much on the right track of installing it.



Is the bottom radiator mount in the right spot or does it actually bolt through the long oblong hole?



you need to drill two holes...one in each towing hook. Then, just put the lower bracket bolts in the new holes and your done.



What he said ^



that explains it. Thanks guys i take back all the bad stuff i said about you lol
