couldnt find any hard info outside of some blurry pictures. just wanted to make a thread for anyone that may be in my position at some point later. 7krayziboi helped me pretty much all the way with the location of everything. i loomed mine to make it a neater install and will mount the prop valve of course. as far as what length line goes where, two of them are obvious and you will have to play around with the rest just to get the prop valve and t-fitting mounted where you want.

From FL brake to T fitting

From FR brake to T fitting

From T fitting to Rear banjo of MasterCylinder

From Front banjo of MasterCylinder to IN port of Proportinning Valve

From Out port of Proportinning valve to rear brake line (near fuel lines)

**when bleeding make sure the Proportinning valve is fully open.

you have to remove the two fittings in the prop valve to install the blue fittings that come with the kit.

you also have to remover that "tree split" on the side of the brake booster.

the wrenches you will need:
17 mm
11 mm
10 mm

anyone with one of anthony's abs delete kits please feel free to post your install



any possibility you can re post these pictures, it would help a lot with my install

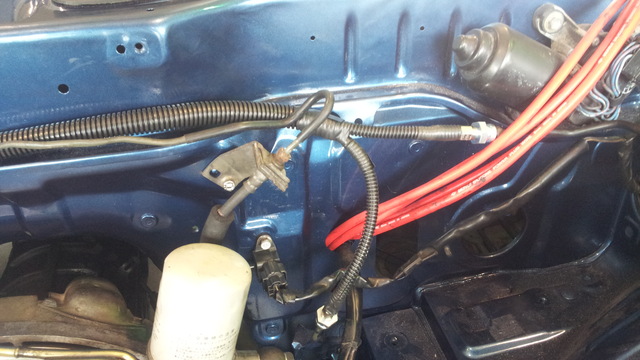

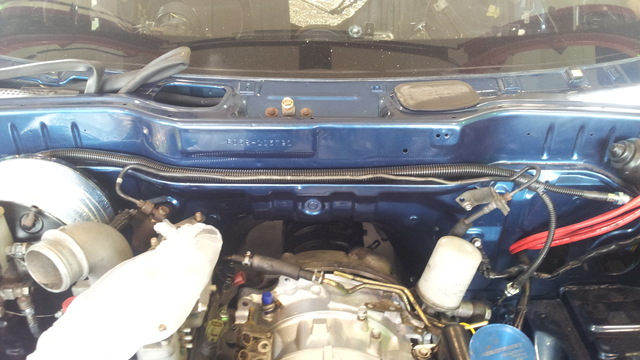

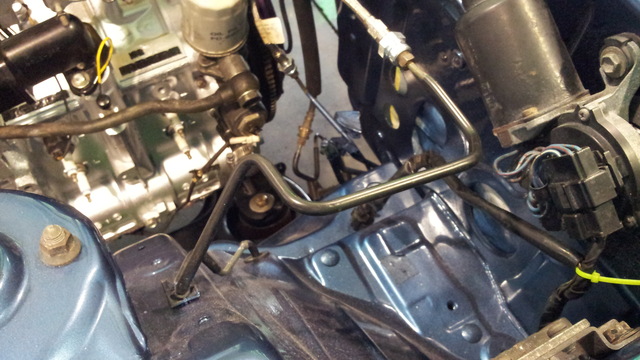

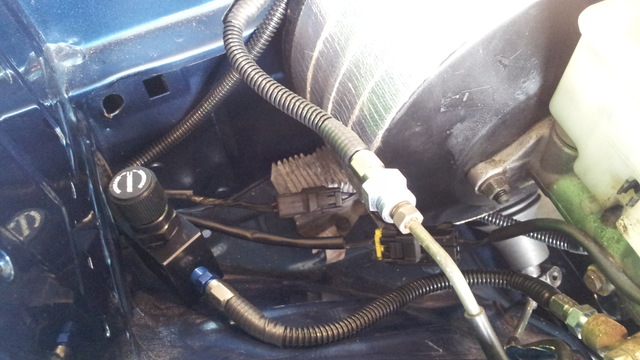

Here you go mine also has line lock option.
