Rev limiter + meth injection
#1
Rev limiter + meth injection
well I was wondering about increasing the rev limiter of the FD being htat I'm very very new to rotaries and know very little about modding them or their limits . I did a quick search
one of the things I found was that with the FD a meth / water injection is a good mod to have to keep the engine cooler , ( on the top of my list (car isnt running yet ) ) , andhte second thing was increasing the rev limiter .. safely trying to see how high I can get the engine to rev given a standalone ( power FC ) seems to be my target
what do you need to do to a rotary to increase the rev limit ?
and about the rev limiter and meth injection .. I read that with the stock rev limiter the meth may still work thus causing a very lean situation with the fuel cut off and all instead of spark cutoff .
I'm very new to the meth injection concept as well
so howmuch of this is true ? howmuch is myth ? and what have you guys learned from your experiences .
(yes I searched already but didn't really get any concrete answers)
one of the things I found was that with the FD a meth / water injection is a good mod to have to keep the engine cooler , ( on the top of my list (car isnt running yet ) ) , andhte second thing was increasing the rev limiter .. safely trying to see how high I can get the engine to rev given a standalone ( power FC ) seems to be my target
what do you need to do to a rotary to increase the rev limit ?
and about the rev limiter and meth injection .. I read that with the stock rev limiter the meth may still work thus causing a very lean situation with the fuel cut off and all instead of spark cutoff .
I'm very new to the meth injection concept as well
so howmuch of this is true ? howmuch is myth ? and what have you guys learned from your experiences .
(yes I searched already but didn't really get any concrete answers)
#2
Rx-hippie
iTrader: (1)
Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Likes: 0
Received 0 Likes
on
0 Posts
The reason it is suggested to increase the rev limit on the PFC is to avoid hitting fuel cut in case you accidental over rev the engine.
It is not so you can see how high you can get the engine to rev, as you put it.
You still don't want to be revving a stock engine that hasn't been race clearanced beyond the stock redline, as you will most certainly damage the rotor tips / side iron.
It is not so you can see how high you can get the engine to rev, as you put it.
You still don't want to be revving a stock engine that hasn't been race clearanced beyond the stock redline, as you will most certainly damage the rotor tips / side iron.
#3
The reason it is suggested to increase the rev limit on the PFC is to avoid hitting fuel cut in case you accidental over rev the engine.
It is not so you can see how high you can get the engine to rev, as you put it.
You still don't want to be revving a stock engine that hasn't been race clearanced beyond the stock redline, as you will most certainly damage the rotor tips / side iron.
It is not so you can see how high you can get the engine to rev, as you put it.
You still don't want to be revving a stock engine that hasn't been race clearanced beyond the stock redline, as you will most certainly damage the rotor tips / side iron.
the reason I asked is because my previous car was a miata which i auto-x'd and I planned to auto-x the fd .. increased rev limiter was so that you wouldnt be bouncing off the rev limiter in second on a fast course .. I figured the same may apply to the RX-7 .. on the miata you have 600 RPM you can retune the car to use safely beyond the stock redline .
stock redline is 6900 , but most auto-xers raise it to 7500 .
which is why I asked if tehre was a limit to where I could raise it to safely . in a piston engine well you know you have various things to do to increase the RPM range .. cams and such ..
I was wondering what you needed in order to do the same to a rotary .
and whats this about raising the rev limiter so you WOULDNT hit the cut off ? I mean I'm a little confused now .
is it unsafe to hit the rev limiter on a rotary unlike it is on a piston engine?
#4
Rx-hippie
iTrader: (1)
Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Likes: 0
Received 0 Likes
on
0 Posts
Hitting fuel cut @ full boost can lead to a blown engine. That's why it is recommend to increase the rev limit on the PFC, and just pay more attention to your tach or shift light.
Race clearance involves making the rotor thinner.. milling off a few mil's from the each rotor side. This provides a larger clearance from rotor side to side iron, so during rotor wobble / e-shaft flex at high rpms the rotor will not impact the side iron and ruin the side seals.
Their really should be no reason to take a stock engine with stock ports beyond 8krpms.. Power will be falling fast after 8k rpms... if you find yourself needing a little bit more speed in 2nd gear during an auto-X it would be better to just change the rear drive ratio.
Race clearance involves making the rotor thinner.. milling off a few mil's from the each rotor side. This provides a larger clearance from rotor side to side iron, so during rotor wobble / e-shaft flex at high rpms the rotor will not impact the side iron and ruin the side seals.
Their really should be no reason to take a stock engine with stock ports beyond 8krpms.. Power will be falling fast after 8k rpms... if you find yourself needing a little bit more speed in 2nd gear during an auto-X it would be better to just change the rear drive ratio.
#5
rotorhead
iTrader: (3)
Power will be falling fast after 8k rpms...
This was posted on these forums a while back. They are chassis dyno results measured in wheel horsepower. The red lines are from a stock FD, and the blue is form a larger single turbo setup.

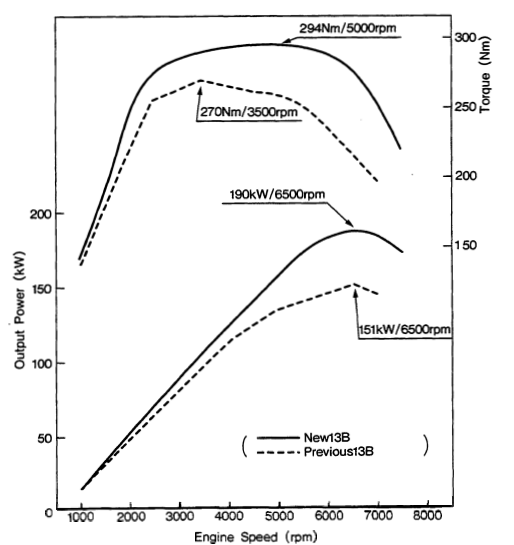

This is engine dyno information as published by Mazda. The solid line is the 93-95 Rx-7 engine, and the dashed line is from an 89-91 turbo Rx-7.
#6
Rx-hippie
iTrader: (1)
Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Likes: 0
Received 0 Likes
on
0 Posts
While hitting overrev fuel cut is something that should hopefully be avoided, I think you're overstating the dangers. Just about every modern engine (piston or rotary) has it and lots of people have hit it inadvertently without grenading the engine.
Yes, but it will still be falling fast even before 8k. Here are two stock dyno sheets:
Yes, but it will still be falling fast even before 8k. Here are two stock dyno sheets:
Thanks for the dyno graphs, been years since I have driven a stock port car. Peak power is lower than I expect, but may still prove to be beneficial revving it out to 8k in 2nd gear during an autocross event rather than shift to 3rd only to slam on the brakes a second later.
Very nice information as always Raymond!
#7
rotorhead
iTrader: (3)
Going back even further:

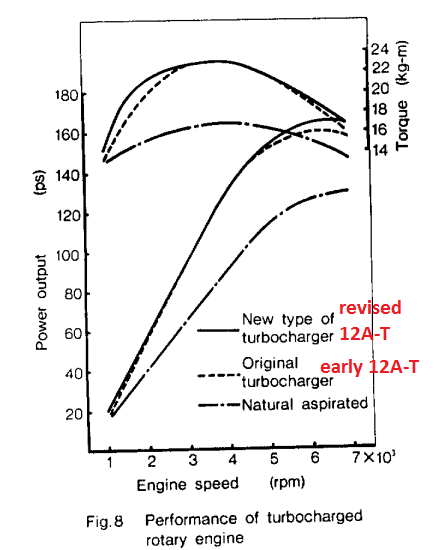

dotted line is the early 12A turbo found in the early 80s Cosmo. Solid line was on a refreshed model with a revised turbine wheel. Both had a single scroll configuration with an undivided manifold and undivided turbine housing. The 20B's had basically a DOHC V8 torque curve, what you would expect from a high end luxury car of the day.
