i am repairing/rewrapping my engine wiring harness, and i have come across a couple of wires that i can't find in the wiring diagram!

this is the blue plug that plugs into the chassis down by the ECU:



i basically need to know where these two wires go (B/G and B/L)

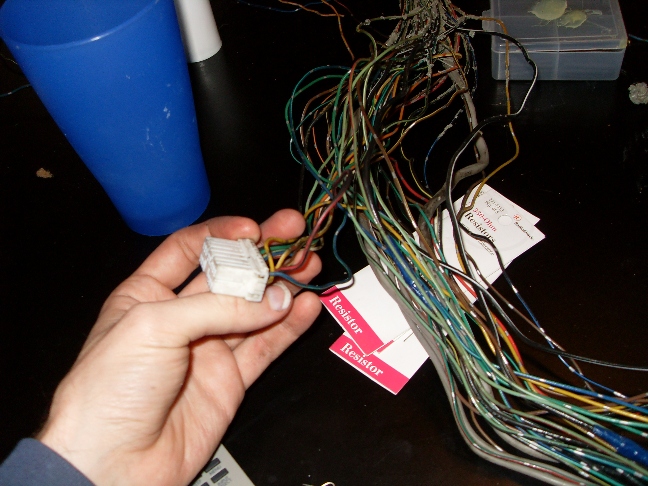

also, i have one more wire:

B/R on the 14pin white plug up under the dash...



well i figured out the wires. thanks for the help guys.


i also put a 330ohm 1/2watt resistor between the emission solenoid wires and +12v and i still have every single ECU code for the emissions solenoids. did i do something wrong?



How did you install the resistors ? Did you cut off the solenoid connector and bridge the resistor betwen the solenoid wire and it's black/white wire on each?


later



i fixed it. apparently the solenoids use 12+ with a switched ground from the ECU.


unfortunately, it didn't fix my fuel cut issue
