Removing ABS to install (Garfinkle) torque brace???

Thread Tools

Search this Thread

Old 11-23-07, 08:41 PM
  #1
Rotary Enthusiast

Thread Starter
iTrader: (8)

13BNUT's Avatar

Join Date: Nov 2004
Location: Long Beach, CA
Posts: 1,020
Likes: 0
Received 0 Likes on 0 Posts
Removing ABS to install (Garfinkle) torque brace???

It seems pretty easy to remove the ABS to install the torque brace, but should I bleed all the brake fluid through the calipers because I dont want to cause a mess around engine bay. Those who have this brace how did you guys do this?
Pics would help also
Old 11-24-07, 12:21 AM
  #2
Old and grumpy

iTrader: (4)

cabaynes's Avatar

Join Date: Mar 2002
Location: San Francisco, CA
Posts: 2,600
Likes: 0
Received 6 Likes on 3 Posts
you shouldnt have to remove the abs to install ANY torque brace. I really doubt it's designed like that.
Old 11-24-07, 12:23 AM
  #3
Old and grumpy

iTrader: (4)

cabaynes's Avatar

Join Date: Mar 2002
Location: San Francisco, CA
Posts: 2,600
Likes: 0
Received 6 Likes on 3 Posts

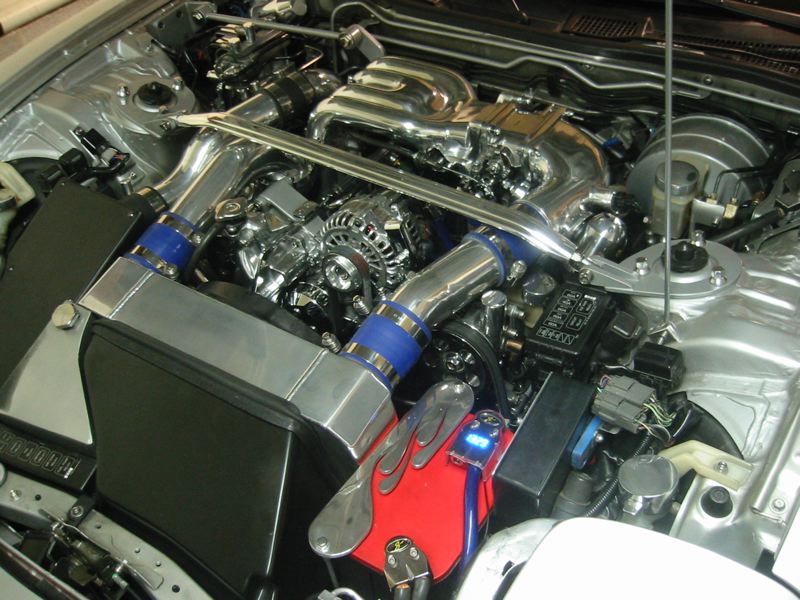

here is a pic of it installed, it goes OVER the abs. no need to take it out

Old 11-24-07, 12:26 AM
  #4
Old and grumpy

iTrader: (4)

cabaynes's Avatar

Join Date: Mar 2002
Location: San Francisco, CA
Posts: 2,600
Likes: 0
Received 6 Likes on 3 Posts

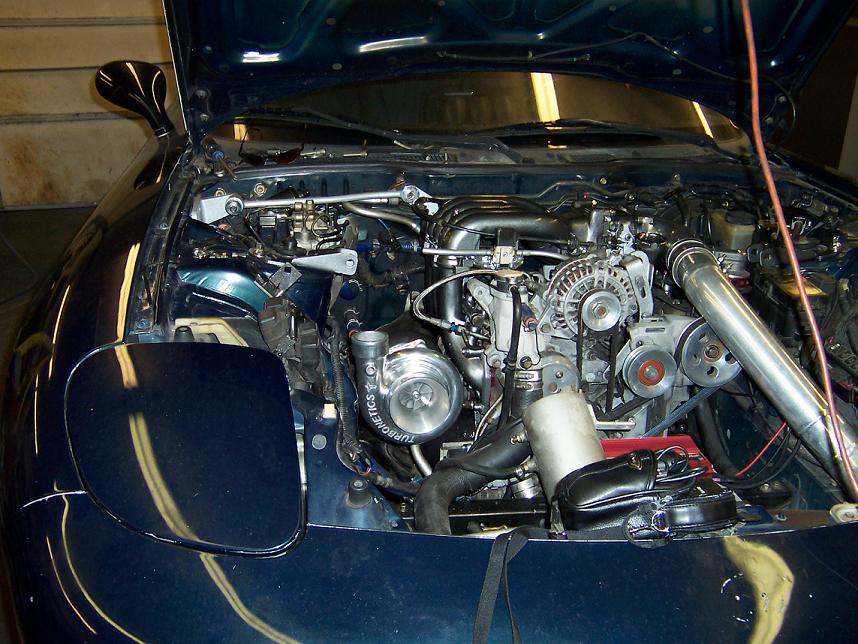

And again

Old 11-24-07, 01:00 AM
  #5
Full Member


HawaiianRedMako's Avatar

Join Date: Dec 2006
Location: Oahu
Posts: 221
Likes: 0
Received 0 Likes on 0 Posts
You can actually make your own with parts from a hardware store. And its adjustable, I'll show a picture next time. My friend makes um, don't know if he would sell it, will ask if interests is large enough for some production run.

And yes you don't need to remove the ABS.

Nice setup, dig your battery brace, did you make it?
Old 11-24-07, 11:00 AM
  #6
Banned. I got OWNED!!!

GARCO MOTORWORKS's Avatar

Join Date: Jul 2004
Location: next to the polishing wheel!!!
Posts: 1,179
Likes: 0
Received 1 Like on 1 Post
Remove the ABS with a rag in hand .You will not drip very much if no one touches the brake ped . Put a rag under the lines to absorb any drips . Drill the holes and install the bracket ,reinstall the ABS and bleed at the wheels . You will not mess your engine bay . You can drill the four holes with a short bit and angle drill but I find it easy and faster to remove the ABS . I think I have installed more of them than any one ,just guessing .Plus most people do not change there brake fluid as often as they should ,this is a good time to put in fresh syn fluid .
Old 11-24-07, 04:07 PM
  #7
Rotary Enthusiast

Thread Starter
iTrader: (8)

13BNUT's Avatar

Join Date: Nov 2004
Location: Long Beach, CA
Posts: 1,020
Likes: 0
Received 0 Likes on 0 Posts
Thanks guys for all the feedback.
