reassembling engine - where do these belong - pics
Need some guidance please. Over the last couple of months, Ive been in the process of repairing my engine.
https://www.rx7club.com/showthread.p...ight=a3dcadman
I have a couple of items that need placement.
One is a light blue connector at the front passenger side of the block in front of the uim.
The second is an insulator plate which I believe is supposed to be somewhere in the turbo area.
It was quite satisfying having the engine start and run first try after all the work. Its a pretty complex puzzle and required a lot of patience and it was only half of engine. Still have more to do though. Ill be posting pics and comments on the thread above as a continuation of that saga.
thanks for your input,
chuck
https://www.rx7club.com/showthread.p...ight=a3dcadman
I have a couple of items that need placement.
One is a light blue connector at the front passenger side of the block in front of the uim.
The second is an insulator plate which I believe is supposed to be somewhere in the turbo area.
It was quite satisfying having the engine start and run first try after all the work. Its a pretty complex puzzle and required a lot of patience and it was only half of engine. Still have more to do though. Ill be posting pics and comments on the thread above as a continuation of that saga.
thanks for your input,
chuck
#2
Senior Member
Join Date: Nov 2001
Location: Malaysia
Posts: 567
Likes: 0
Received 0 Likes
on
0 Posts

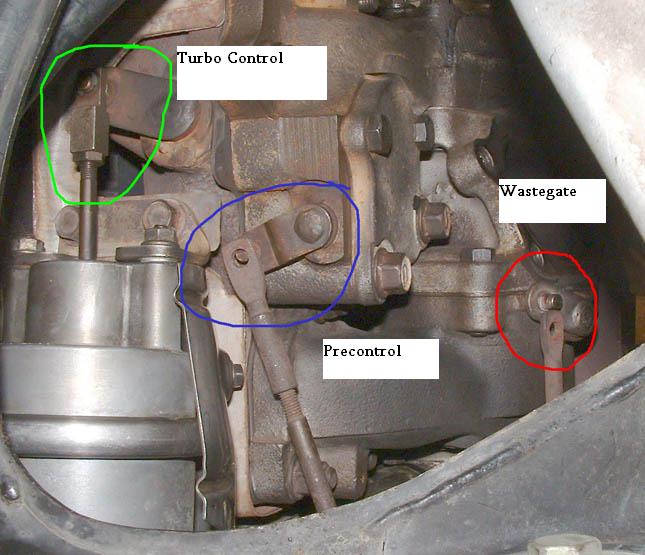

the second pic is definitely below wastegate rod. You have to remove the shield to access /adjust turbo control & precontrol
Last edited by fd3s7007; 01-05-06 at 10:21 AM.
#6
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2004
Location: seattle area
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RotaryResurrection
Blue is for cali electric EGR. Most cars do not have it.
The metal plate is for the passenger side motor mount.
/thread
The metal plate is for the passenger side motor mount.
/thread
chuck
