Rear tie down / feed tow hook install

So I went to install my Feed tow hooks and have 2 problems.

1) The front tow hook doesn't clear the bottom of the 93 bumper. Anyone else have this problem?

and

2) I have no rear tie down that I can find to bolt the toe hook to. That's where you install it apparently as seen in this pic:
Name:  DSC00298.jpg
Views: 842
Size:  78.7 KB

I've called other FD owners and they dont have a tie down in that spot either. Am I crazy or am I missing a part of my car? I have a 93 touring and I confirmed that a 94 touring doesnt have it either. Any ideas?
burtoncr is offline
Old 03-01-08, 12:16 AM
  #2
NASA TTS Build
5 Year Member
iTrader: (2)

Specter328's Avatar

Join Date: Nov 2006
Location: New York
Posts: 816
Thanks: 0
Thanked 0 Times in 0 Posts
1) The stock bumper needs to be cut.

2) You need to buy the tie down in the rear from Mazda, I can check the part number for you tomorrow if you'd like.
Specter328 is offline
Old 03-01-08, 12:23 AM
  #3
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Texas
Posts: 455
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Specter328 View Post
1) The stock bumper needs to be cut.

2) You need to buy the tie down in the rear from Mazda, I can check the part number for you tomorrow if you'd like.
Is you answer to #1 because you installed them?

Sweet, a part number would be awesome thanks!
burtoncr is offline
Old 03-03-08, 05:07 PM
  #4
Senior Member
10 Year Member
Thread Starter

Join Date: Feb 2006
Location: Texas
Posts: 455
Thanks: 0
Thanked 0 Times in 0 Posts
Well, to update this thread. Ray at Malloy said his parts manual says there are two rear hooks listed (~$25 each). He checked his personal car and to his surprise he didn't have either. Also, I've confirmed with quite a few owners including Fritz Flynn and others who have had multiple FDs and it looks like the rear came on very few cars. Ray suggested that maybe they were taken off at port which wouldn't surprise me. Just and FYI.
burtoncr is offline
Old 03-03-08, 05:47 PM
  #5
Warming the planet.
10 Year Member

Gadd's Avatar

Join Date: Dec 2004
Location: Chico, CA
Posts: 843
Thanks: 0
Thanked 0 Times in 0 Posts
Yup, the rear tie down is removed at the port.

Mine fit fine with the OEM front bumper, but if a remember correctly I had to modify the mount for the AC condenser sightly.
Gadd is offline
Old 03-04-08, 01:26 AM
  #6
NASA TTS Build
5 Year Member
iTrader: (2)

Specter328's Avatar

Join Date: Nov 2006
Location: New York
Posts: 816
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by burtoncr View Post
Is you answer to #1 because you installed them?

Sweet, a part number would be awesome thanks!
Yes, I have them on my car. Sorry about the part number I seem to have misplaced my parts catalog and have yet to find it.

Here's picture of the front tow hook:
Attached Thumbnails Rear tie down / feed tow hook install-tow.jpg
Specter328 is offline
Old 03-04-08, 03:29 PM
  #7
Warming the planet.
10 Year Member

Gadd's Avatar

Join Date: Dec 2004
Location: Chico, CA
Posts: 843
Thanks: 0
Thanked 0 Times in 0 Posts

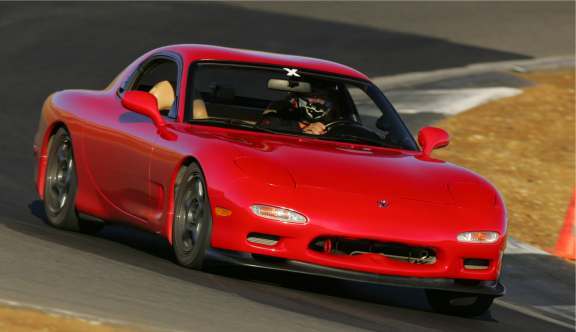

Best picture I could find of mine

Name:  hook.jpg
Views: 486
Size:  18.0 KB
Gadd is offline
Old 03-04-08, 04:05 PM
  #8
Lets Go Hokies!
15 Year Member
iTrader: (5)

afterburn27's Avatar

Join Date: Aug 2001
Location: Greenville, SC
Posts: 1,728
Thanks: 0
Thanked 2 Times in 1 Post
Ah, crap... my car doesn't have the stock rear tie-down either. Looks like I am calling Ray Crowe again!
afterburn27 is offline
Old 04-02-08, 09:53 PM
  #9
Playing Well
iTrader: (19)

Natey's Avatar

Join Date: Aug 2004
Location: Santa Cruz
Posts: 3,882
Thanked 54 Times in 43 Posts
I never cut my front bumper and my FEED hook fits fine. I probably oughtta put a little tape on the paint so it doesn't get scratched, but it does fit without *gasp* cutting.


Natey is offline
Old 04-02-08, 11:11 PM
  #10
Junior Member

Join Date: Sep 2007
Location: Los Angeles, California
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by burtoncr View Post
So I went to install my Feed tow hooks and have 2 problems.

1) The front tow hook doesn't clear the bottom of the 93 bumper. Anyone else have this problem?

and

2) I have no rear tie down that I can find to bolt truck part the toe hook to. That's where you install it apparently as seen in this pic:


I've called other FD owners and they dont have a tie down in that spot either. Am I crazy or am I missing a part of my car? I have a 93 touring and I confirmed that a 94 touring doesnt have it either. Any ideas?
Ooohhhh, cut the bumpers men..
kerpal is offline
Old 04-02-08, 11:52 PM
  #11
Mr Sparkles
10 Year Member
iTrader: (12)

Chadwick's Avatar

Join Date: Jun 2001
Location: Smyrna, TN, USA
Posts: 785
Thanks: 0
Thanked 0 Times in 0 Posts
Rear tie down left side part number: FD01-56-252B
Rear tie down right side part number: FD01-56-251B

Dan
Chadwick is offline
Old 10-04-09, 12:06 PM
  #12
Chad Carson
iTrader: (29)

Fire85GSLSE's Avatar

Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Chadwick View Post
Rear tie down left side part number: FD01-56-252B
Rear tie down right side part number: FD01-56-251B

Dan
Dan you always come thru!

I know this is an old thread but I have a few questions.

1. Does anyone have a picture of what the rear tie downs look like on the car? Maybe someone that has both in a pic?

2. Why can the aftermarket front hook be a bit longer and slightly higher?
Then no rubbing or cutting the bumper and if you had to strap it down to trailer the strap will not rub the bumper?

Sorry if this has already been covered. I am searching for towing solutions for my FD. Ripped the fuel lines loading on my old trailer and now resolved that buy getting better trailer. Now need to figure out a better way to tow or strap down the car.
Fire85GSLSE is offline
Old 01-13-14, 05:16 AM
  #13
RX7FD3S
iTrader: (3)

Join Date: Jun 2005
Location: South Bay, North Cali.
Posts: 1,482
Thanked 6 Times in 4 Posts
Reviving an old thread to add some pics. This thread has helped me locate the part number for the tow hook tie down so i was able to order from Ray last year. Over the holidays, i finally got to install my FEED rear tow hook and snapped some pics. hope this will be helpful for other FD owners when searching for rear tow hook info.

cheers.

The tow hook tie down part:


The tie down bolt location next to the fuel tank:


Tow hook tie down installed:




FEED tow hook installed:
Attached Thumbnails Rear tie down / feed tow hook install-1.jpg   Rear tie down / feed tow hook install-2.jpg   Rear tie down / feed tow hook install-3.jpg   Rear tie down / feed tow hook install-4.jpg   Rear tie down / feed tow hook install-5.jpg

RX7LINK is offline
Old 01-13-14, 11:52 AM
  #14
Comb the Desert!!!
10 Year Member
iTrader: (18)

mrhetrick's Avatar

Join Date: Feb 2005
Location: Ashburn, Virginia
Posts: 662
Thanks: 0
Thanked 0 Times in 0 Posts
Continuing with the theme of thread revivals, this one brings me to further questions.

1. If you have the FEED front bumper (TYPE II R), is modification required in order to make this fit? Seems to me that a "FEED" bumper would not need to be altered in order for a "FEED" tow hook to fit...

2. This one is almost a no-brainer, but what the hell. I have the Amemiya style street diffuser, and it appears that adding an OEM rear tie down would require cutting of the diffuser, so adding the FEED rear tow hook as well, you certainly must do some cutting.

Hmmm, anyone got pics of the above two examples?

Much appreciated!

Mike
mrhetrick is offline
Old 01-13-14, 04:31 PM
  #15
RX7FD3S
iTrader: (3)

Join Date: Jun 2005
Location: South Bay, North Cali.
Posts: 1,482
Thanked 6 Times in 4 Posts
Originally Posted by mrhetrick View Post
Continuing with the theme of thread revivals, this one brings me to further questions.
1. If you have the FEED front bumper (TYPE II R), is modification required in order to make this fit? Seems to me that a "FEED" bumper would not need to be altered in order for a "FEED" tow hook to fit...
2. This one is almost a no-brainer, but what the hell. I have the Amemiya style street diffuser, and it appears that adding an OEM rear tie down would require cutting of the diffuser, so adding the FEED rear tow hook as well, you certainly must do some cutting.
Hmmm, anyone got pics of the above two examples?
Much appreciated!
Mike
1. FEED Type II front bumper doesn't require any cutting to install the front tow hook.



2. yes, the Amemiya street diffuser will require cutting. I don't know anyone with a rear tow hook running that diffuser.
Attached Thumbnails Rear tie down / feed tow hook install-_mg_8428_2.jpg
RX7LINK is offline
Old 01-13-14, 05:09 PM
  #16
Comb the Desert!!!
10 Year Member
iTrader: (18)

mrhetrick's Avatar

Join Date: Feb 2005
Location: Ashburn, Virginia
Posts: 662
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for the reply.

Hate to have the diffuser cut, but, it seems it is the only option.

Oh well, I am sure it will not look too bad...............I hope.

Mike
mrhetrick is offline
Old 01-14-14, 07:50 AM
  #17
10-8-10-8

SA3R's Avatar

Join Date: Jan 2012
Location: Australia
Posts: 845
Thanks: 0
Thanked 3 Times in 3 Posts
*My car has an OEM hook on each side of the rear.

Maybe I'm missing something, but (on the rear) what is the purpose of bolting a tow hook onto a tow hook? Seems weird? I mean the stock rear tow hooks work fine during the times I've used them.

Wouldn't bolting another hook thru the eyelet of the stock hook introduce more points for potential failure, more bolts to loosen, and extra weight?
SA3R is offline
Old 01-15-14, 12:07 AM
  #18
JBF
Senior Member
iTrader: (13)

JBF's Avatar

Join Date: Apr 2011
Location: Willow Springs, CA
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
Both of my FDs have rear hooks on both sides as well.....
JBF is offline
Old 04-01-15, 07:42 PM
  #19
Turbo Punk
10 Year Member
iTrader: (3)

Integral's Avatar

Join Date: Oct 2005
Location: San Diego, CA
Posts: 584
Thanked 0 Times in 0 Posts
odd...i definitely don't have a tow hook in the rear. i was told that the vehicles shipped from japan WITHOUT the tow hooks. that doesn't make much sense to me, but whatever...i definitely don't have either in the rear.

ordered, though. thanks, ray crowe!
Integral is offline
Old 04-02-15, 09:05 AM
  #20
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,089
Thanked 149 Times in 129 Posts
IMO, it's not a 'tow hook'. As mentioned earlier in the thread, it's a tie-down. Putting the heavy-duty red ring at the end doesn't change that. It was meant for securing the car during shipping and probably pulled off as part of 'dealer prep'. The stock rear tie-down bracket is strong in tension, but pretty weak from side-to-side. Seems like it would bend relatively easy. Probably really only appropriate to secure the car on a trailer...which is why I got one. Have a second tie-down and toying with the idea of using two to make it stronger in deflection.

Last edited by Sgtblue; 04-02-15 at 09:13 AM.
Sgtblue is offline
Old 04-02-15, 11:54 AM
  #21
Turbo Punk
10 Year Member
iTrader: (3)

Integral's Avatar

Join Date: Oct 2005
Location: San Diego, CA
Posts: 584
Thanked 0 Times in 0 Posts
Originally Posted by Sgtblue View Post
IMO, it's not a 'tow hook'. As mentioned earlier in the thread, it's a tie-down. Putting the heavy-duty red ring at the end doesn't change that. It was meant for securing the car during shipping and probably pulled off as part of 'dealer prep'. The stock rear tie-down bracket is strong in tension, but pretty weak from side-to-side. Seems like it would bend relatively easy. Probably really only appropriate to secure the car on a trailer...which is why I got one. Have a second tie-down and toying with the idea of using two to make it stronger in deflection.
fair enough - mazda even refers to it as a "tie down" and if you talk to any parts person that's not ray they'll shrug and say they don't have a tow hook, but they have tie downs.

the point to attach a "hook" to the end would be for a more prominent, easy to catch fixture...as far as i can tell.
