Rat's nest: Double checking my work

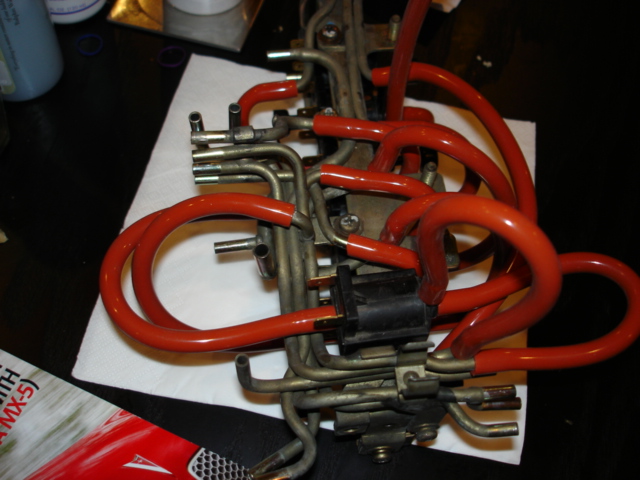

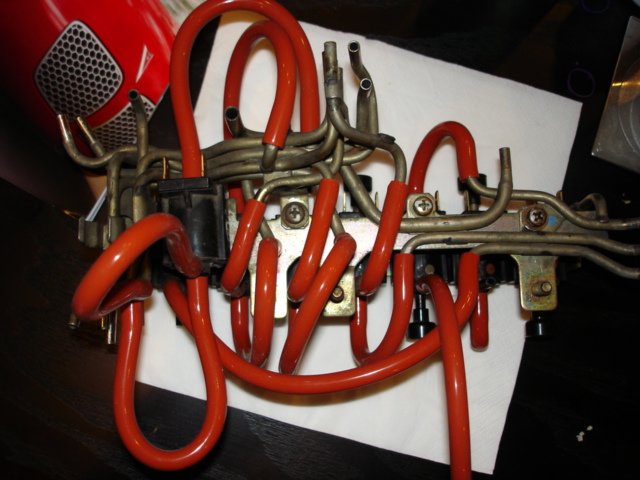

I finished plugging in new hoses for the rat's nest last night and took some pictures. I'm pretty confident I have the hoses on the driver's side all plugged in correctly. On the passenger side, I'm slightly less confident since the vacuum hose diagram isn't as clear. Do these hoses look like they're plugged into the proper places?
10-02-05, 11:17 AM
#3
development
good jub, but the littlest bit of oil makes silicon slippery like soap...zip tie for a little bit of security. I know you don't want to take the UIM off again.
I also had to put a zip tie in the WG pill line so the pill didn't get blown to actuator nipple, made for bad boost control
I also had to put a zip tie in the WG pill line so the pill didn't get blown to actuator nipple, made for bad boost control
