Ive been sitting on this for a while,

Integrating this into the factory fuel tank.

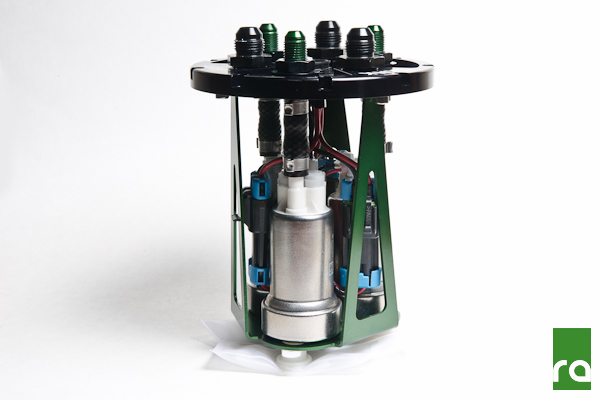

Some links and pictures.

Radium Engineering - Blog - New Product Release: Fuel Cell Surge Tank

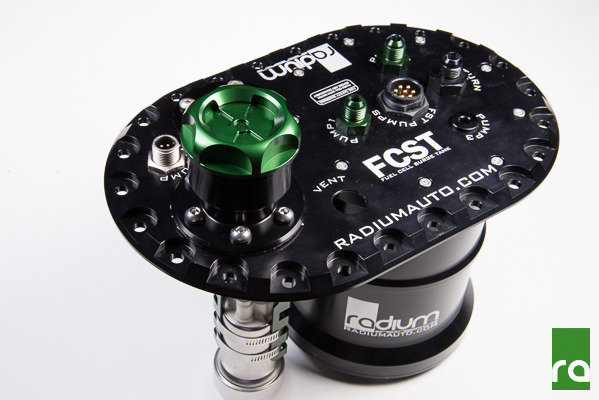

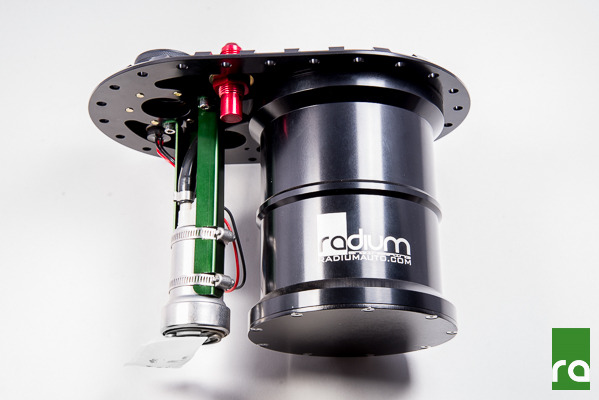

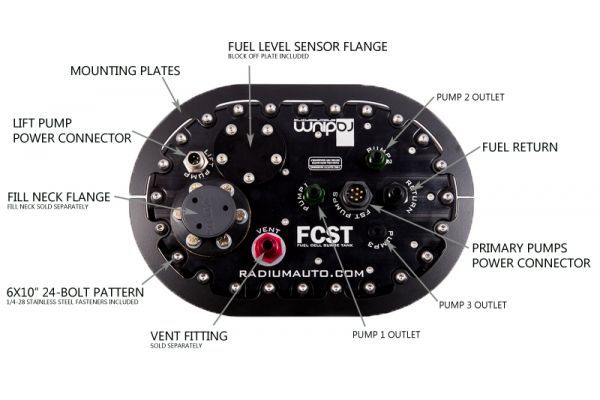

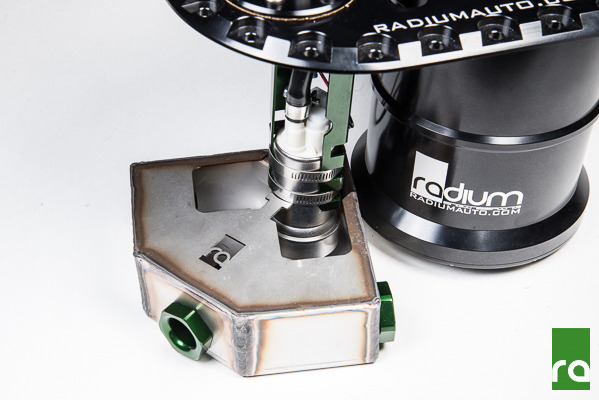

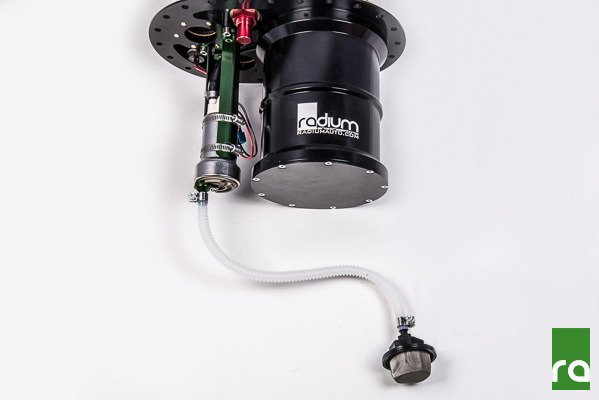

Fuel Cell Surge Tank








What I like about it..
- Everything is hidden
- I particularly like the idea of low pump noise hidden away (street car)

Hurdles to overcome
- Modifying fuel cell to suit , will it fit? is the fuel cell deep enough?
- Potential extra cooling needed for the fuel

Just wanted to put out there and see if anyone has anything to add to this project !



Very nice! Honestly it would be less of a hassle to just get a custom fuel tank fabricated and built around this rather then trying to get this to work in the factory tank.



I think the factory hole at the top could be cut bigger and a flange to suit welded . Seems simple.

I'm worried more about the height of the An 90 degree bend fuel lines at the top not clearing the body.



These clear for me using the CJ billet dual pump hanger. Should clear for you as well. Right now I am only using this for a single lift pump which feeds dual partially submerged Bosch 044's. So far this has held up very well for me.

http://m.summitracing.com/search/product-line/fragola-performance-systems-series-3000-low-profile-race-hose-ends



Those look perfect thanks !
