Which female plug(color?) connects to the blue male end on the belly of the UIM?

Besides the solenoids, what did the other plugs go to?

Thanks,
Andrew



Andrew,

I'll fix it for $40 an hour.

Chuck
Sugar Land



The white one goes to the map sensor on the UIM the other plugs go to the EGR, alternator, watepump x 2, timing x 2,ground, knock, injectors, THe big grey plug goes on the throttle body back drivers side ,there are also two on the front of the UIM I just can't think of the name of them.

Lance



so the white plug goes to the blue male insert under the UIM? cewrx7r1, thanks for the offer but ive got it all done except for that wire and hookin' up the fuel lines.

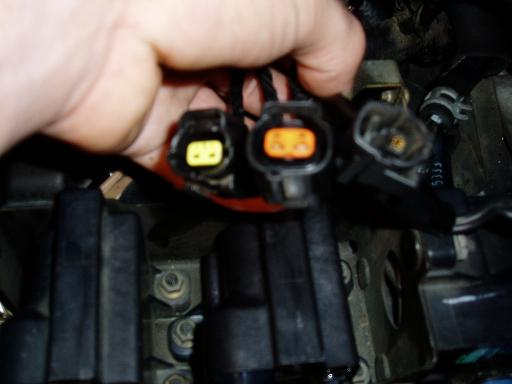

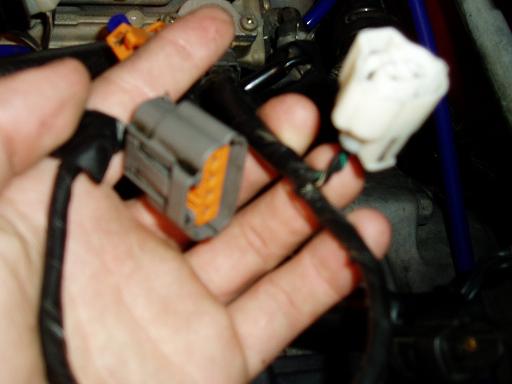

here are the plugs in talkin' about...both sets were near the firewall. I think the yellow plug in the first pic goes to the blue male end under the UIM but not sure. And remember, i've done the full non-sequential conversion so...there is alot of stuff ive takin' out...



if it is the blue connector on the front side of the uim, then it is for the egr on 93 california cars or 94 and up electric egr cars. It is not needed if you have a 93 noncali car or a manual egr 94. If it is the Blue/Green connector then it is the IAT sensor on the uim.
Art
