My 93 rx7 has an auto to a manual swap done to it (not done by me , car was way to good of a price clean body, perfect interior , and low miles.) from what I know swap was done with the auto differential, auto harness , and auto Ecu . From what I could tell wiring job look ok as far as reverse lights and speedometer working great . One question I have is I recently started having secondary boost issue , I’m seeing on vacuum line diagram that auto and manual are a little different .

From what I can tell the automatic has an extra vacuum chamber along with an extra check valve underneath the UIM to the double throttle . I’m planning on changing all the rat nest lines to silicone and was wondering do I leave the extra vacuum chamber or change it to the way a manual car is . On the manual it has a filter where the check valve would be and removed the vacuum chamber as well? Would changing it to the way the manual cars came do I need to change the Ecu as it not sure if the solenoids actuate at different times from an auto to a manual or should I leave it the way the automatic cars came ?

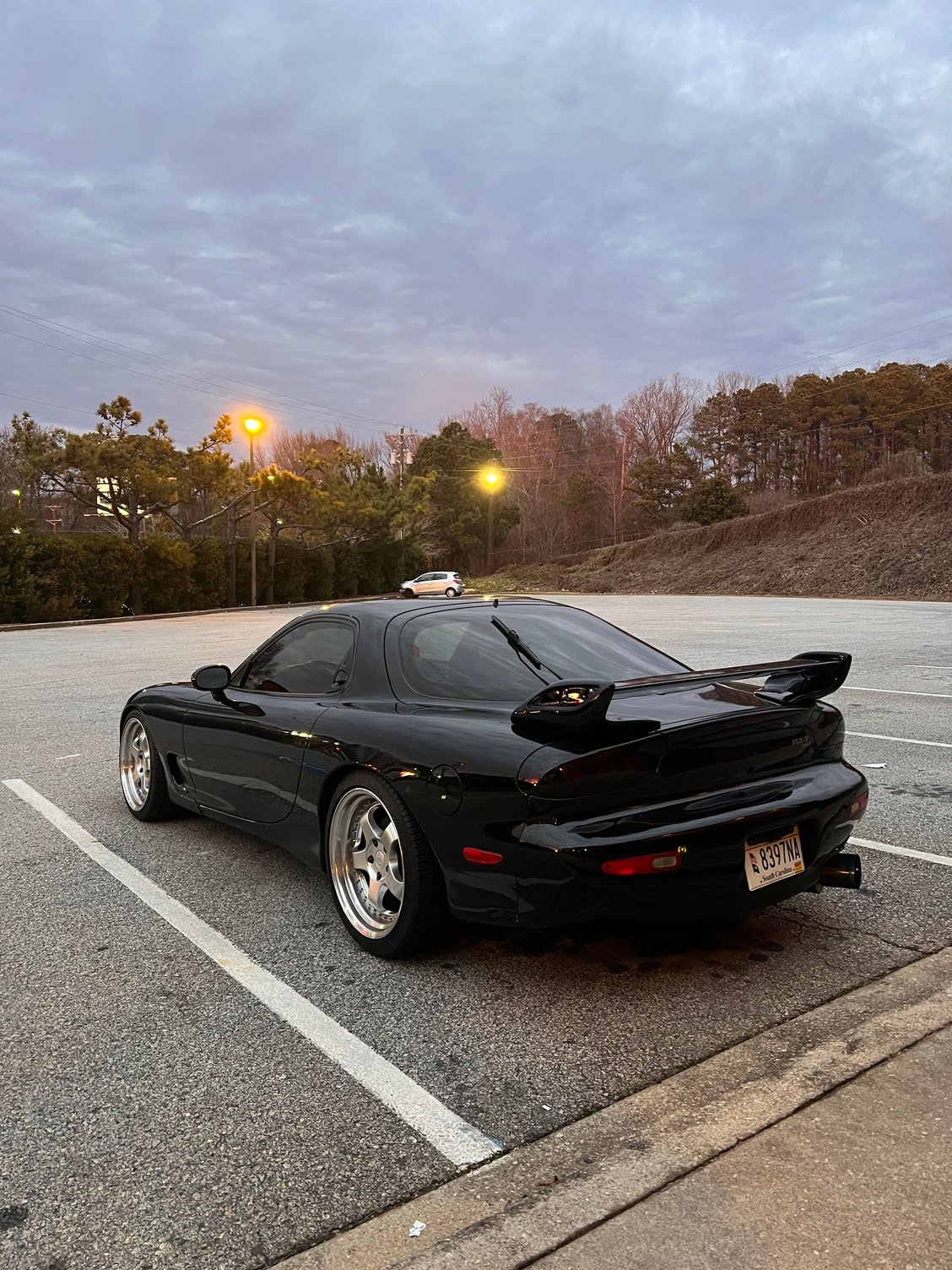

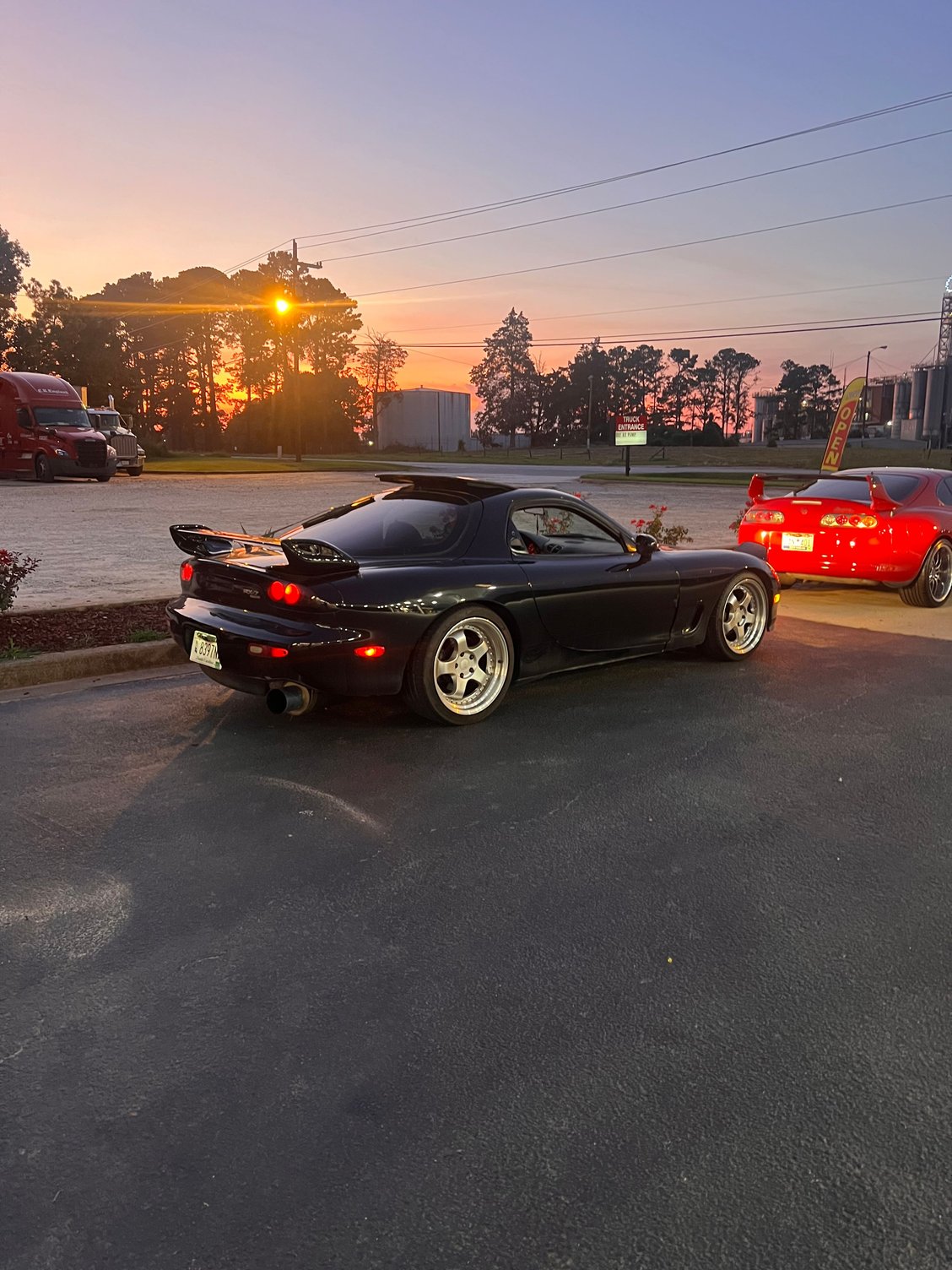

Here are some pictures of the rx7



Follow the manual vacuum diagram and the auto ecu is fine. If you get a power fc, you can do the simplified sequential diagram and make life a whole lot easier. Unless you need the emissions stuff in place for inspections or something, it would be worth while to remove it



I do plan on getting a power fc later on but right now the car is basically stock with only suspension, wheels , and fatback exhaust . So you think the automatic Ecu will be fine doing the vacuum lines the way the manual cars came ?

also I’m from South Carolina and have no need for emission stuff .



OP if interested I have a power fc with commander took it off of my 93 rx7 ssm. Shoot me a pm if interested



tried sending a pm but it is saying your storage was full !



I cleared some messages



Dan from FX JDM has a pretty detailed write up on this

https://drive.google.com/file/d/1hDC...dLV/view?pli=1
