Power Windows work..without fuse?
01-07-13, 06:02 PM
#1
Power Windows work..without fuse?
So my power windows work, albeit very slowly, and I was checking my fuses in the engine bay, and noticed there is a fuse next to the 15A ABS and 20A Tel that says "Power Wind".
Well I opened the box and there is no fuse in that spot, but the windows work. Is there something else that this is for?
Well I opened the box and there is no fuse in that spot, but the windows work. Is there something else that this is for?
01-09-13, 02:14 PM
#2
Recovering Miataholic
Nope, that is the only circuit path for the power windows on a (stock) FD.

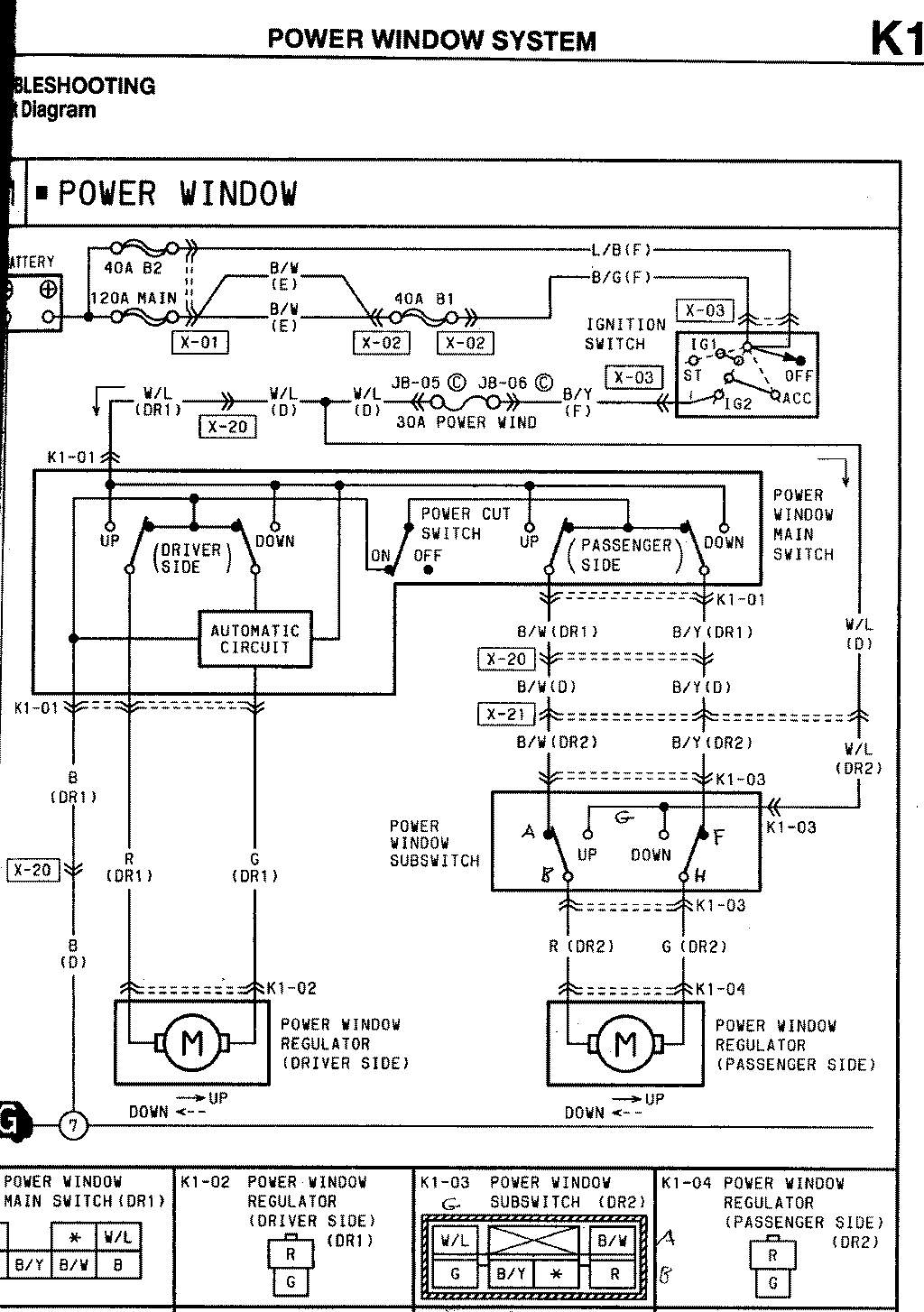

The schematic below is from the Body Electrical Troubleshooting Manual for a 1994 RX-7, showing the 30 ampere "Power Wind" fuse.
The schematic below is from the Body Electrical Troubleshooting Manual for a 1994 RX-7, showing the 30 ampere "Power Wind" fuse.
