Possbily bad Hatch glass seal?? - RX7Club.com - Mazda RX7 Forum

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Possbily bad Hatch glass seal??

Old 01-21-19, 03:10 PM
  #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2018
Location: Houston
Posts: 27
Thanked 0 Times in 0 Posts
Possbily bad Hatch glass seal??

Can you guys help identify if I have a bad glass seal on a 93 rx7.

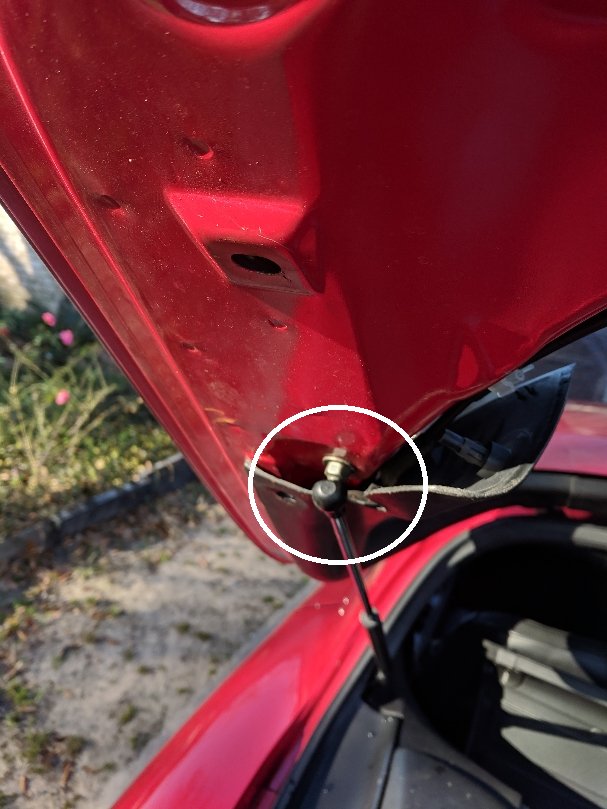

After a heavy downpour, I raise the hatch and notice water pouring out from where the dampers are mounted. I researched and found out that the most common cause is the foam gasket behind the taillights, so I've sealed it up.
It's been raining stupid hard again a week later so I went to check. The new seal I put in are working but I'm still getting water in the spare tire area.
I removed the plastic trim and noticed water building up like in the last picture. This could explain rust in certain areas. Could this be the cause of a bad glass seal?

removed the plastic trim

water buildup

water falls from here

water also falls from here

since water is getting inside, it's causing all this rust

and rust here
anh_cloud9 is offline
Old 01-21-19, 03:30 PM
  #2
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
Most likely it's the spoiler gasket. I've seen them leak before, not uncommon. Especially since it looks like you have an aftermarket spoiler.

The rubber weatherstripping around the hatch would have to be REALLY shot and obviously faulty to leak inside.

Tail light gasket has nothing to do with water in the hatch, that's too low.

Dale
DaleClark is offline
The Following User Says Thank You to DaleClark For This Useful Post:
anh_cloud9 (01-21-19)
Old 01-21-19, 06:08 PM
  #3
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,277
Thanked 16 Times in 16 Posts
Dale, I think he said he was suspecting the seal of the hatch glass to the hatch - IMO, that could be the issue. I've had water drain out (outside of hatch) from around that seal after washing the car and raising the hatch, but it has never caused any issues inside the car.
DaveW is offline
The Following User Says Thank You to DaveW For This Useful Post:
anh_cloud9 (01-31-19)
Old 01-22-19, 04:31 AM
  #4
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,096
Thanked 149 Times in 129 Posts
^DaveW, I think what you're describing is water that simply accumulates in the glass channel. It's outside the seal, but under the molding. In the OP's case, I'd suspect the spoiler mounts as well.
Sgtblue is offline
The Following User Says Thank You to Sgtblue For This Useful Post:
anh_cloud9 (01-31-19)
Old 01-22-19, 09:19 AM
  #5
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,277
Thanked 16 Times in 16 Posts
Originally Posted by Sgtblue View Post
^DaveW, I think what you're describing is water that simply accumulates in the glass channel. It's outside the seal, but under the molding. In the OP's case, I'd suspect the spoiler mounts as well.
You and Dale are correct, but if the hatch glass seal WAS defective in some way, the fact that water gets into that channel could also make a leak into the hatch area possible.
DaveW is offline
Old 01-22-19, 10:35 AM
  #6
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,096
Thanked 149 Times in 129 Posts
Regardless, it’s reasuring I’m probably not the only one cussing the water that drools out from under the hatch window molding even after drying the car an hour earlier.
Sgtblue is offline
Old 01-22-19, 12:11 PM
  #7
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
^Yep. Once I get the car 99% dry I pop the hatch and get that "drool" water as well as the water in the drip rail around the hatch.

Dale
DaleClark is offline
Old 01-22-19, 12:29 PM
  #8
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,096
Thanked 149 Times in 129 Posts
Yeah, mine would drain, but inside the hatch area. I always needed to have towels ready. Got one of these for Christmas, we’ll see if it helps....

https://www.autogeek.net/dp-turbo-car-dryer.html
Sgtblue is offline
Old 01-22-19, 03:44 PM
  #9
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
BTW, I love these threads where OP never shows back up .

Dale
DaleClark is offline
Old 01-25-19, 08:24 AM
  #10
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,691
Thanks: 0
Thanked 13 Times in 13 Posts
Iím getting water into my hatch as well. But I think mine is because of a crappy paint repair/mask job which dried out the weatherstrip and it cracked unfortunately. Are these available? I tried locating one but no luck. Thanks
silverTRD is offline
Old 01-25-19, 08:26 AM
  #11
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
They may be available new, but they don't typically get too messed up so they should be easy/cheap to get used as well.

Dale
DaleClark is offline
Old 01-30-19, 07:28 PM
  #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2018
Location: Houston
Posts: 27
Thanked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
BTW, I love these threads where OP never shows back up .

Dale
Im still here haha .
I took your advice and purchase some spoiler gasket and I'm waiting for them to come in, install, and wait to see if that actually resolve my issue.

​​​​​​First time owning an older car and I've never even heard of spoiler gasket so it never crossed my mind that was the issue. These gasket we're cheap enough to order at 11 a piece. Cheap insurance i suppose93-95 Rx7 Rear Spoiler Gasket - Outer Right (FD03-51-9G6)93-95 Rx7 Rear Spoiler Gasket - Outer Left (FD03-51-9G7)
anh_cloud9 is offline
Old 01-31-19, 08:25 AM
  #13
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
Nice! Hope that does the trick for you!

Dale
DaleClark is offline
The Following User Says Thank You to DaleClark For This Useful Post:
anh_cloud9 (01-31-19)
Old 01-31-19, 04:57 PM
  #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2018
Location: Houston
Posts: 27
Thanked 0 Times in 0 Posts
Lets hope they do the trick.
I just installed them last night and it just started pouring where I'm at. *fingers crossed*.
anh_cloud9 is offline
Old 02-01-19, 04:38 PM
  #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2018
Location: Houston
Posts: 27
Thanked 0 Times in 0 Posts
After several hours of heavy downpour, I found that the spoiler gasket resolved the issue. I no longer have any water leaks coming into the hatch now.
anh_cloud9 is offline
Old 02-01-19, 05:26 PM
  #16
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 10,096
Thanked 149 Times in 129 Posts

The OCD in me would want to do something about that scale inside the hatch. Maybe clean the loose stuff up and some POR15 ?
Sgtblue is offline
Old 02-02-19, 09:31 AM
  #17
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
Yeah, if you have some rust going on in there it should be treated and sealed.

Glad that gasket did the trick!

Dale
DaleClark is offline
