please tell me this piece isn't important

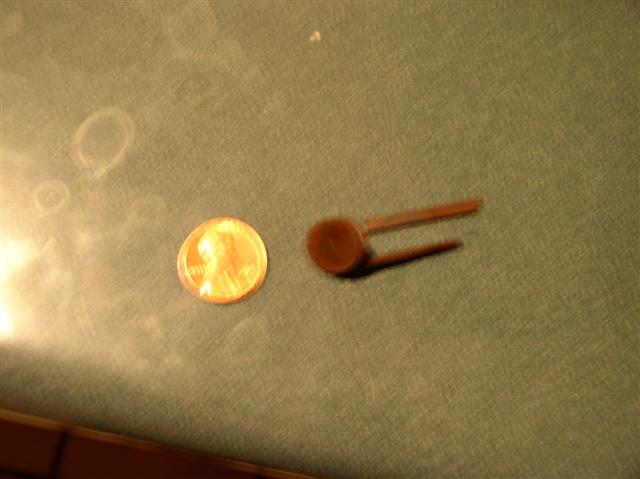

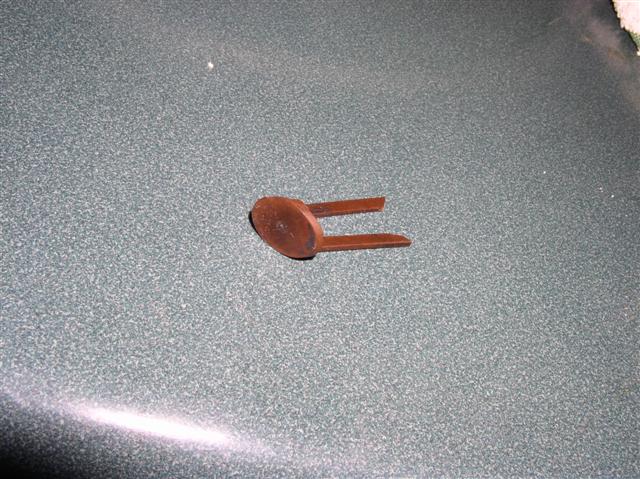

found this in my LIM !
04-10-05, 07:41 PM
#2
I luv my carbon footprint
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
That's an important piece and it's half of the secondary injector diffuser. Its purpose is to atomize the fuel better and therefore help prevent flooding. You can get to them by removing the secondary fuel rail and Ray at Malloy Mazda will sell you a new set of secondary diffusers for about $30.
04-10-05, 07:46 PM
#3
DETH TRP
Thread Starter
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
awesome, I knew someone could tell me right away. So I'm not going to cause any immediate damage if I run the car without this piece until it comes in?
BTW: thanks for the ultra quick and complete response.
BTW: thanks for the ultra quick and complete response.
04-10-05, 07:50 PM
#4
I luv my carbon footprint
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
It won't cause any damage running it that way and on second look that came from a primary injector diffuser, not a secondary injector diffuser. You'll have to remove the ACV and the rat's nest to pull the primary fuel injector rail which is obviously more of a pain in the ***. The primary injectors are keyed to fit in the hole one way and you should buy a new set of primary injector insulators for $4.00 and replace them while you're in there.
04-10-05, 08:16 PM
#5
DETH TRP
Thread Starter
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by mgoddard1
It won't cause any damage running it that way and on second look that came from a primary injector diffuser, not a secondary injector diffuser. You'll have to remove the ACV and the rat's nest to pull the primary fuel injector rail which is obviously more of a pain in the ***. The primary injectors are keyed to fit in the hole one way and you should buy a new set of primary injector insulators for $4.00 and replace them while you're in there.
Are the primary diffusers also a 1 piece unit? So just 1 primary diffuser, and 2 insulators will do the trick?
04-10-05, 08:25 PM
#6
I luv my carbon footprint
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
That should do the trick if the other one isn't broken too. If the LIM is off you should be able to see the other one in one of the primary intake runners in the center iron sitting under one of the primary injectors. If you don't see it then the other one may be broken off too.
04-10-05, 08:36 PM
#7
DETH TRP
Thread Starter
iTrader: (7)
Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by mgoddard1
That should do the trick if the other one isn't broken too. If the LIM is off you should be able to see the other one in one of the primary intake runners in the center iron sitting under one of the primary injectors. If you don't see it then the other one may be broken off too.
well I plan to do this with the LIM on the car, by taking off the UIM and going from the top. So I'll just go ahead and order both, just to be sure. Thanks for all the help.
Trending Topics
04-10-05, 10:56 PM
#10
I won't let go
Ditto. You don't "need" them. Can't say that you'll have an issue running lopsided like that, but I don't see why you would.
I've run mine without them with no issues. If you have nice clean injectors, the fuel will atomize just fine without them.
I've run mine without them with no issues. If you have nice clean injectors, the fuel will atomize just fine without them.
