Pipe on Oil Filler Pedestal

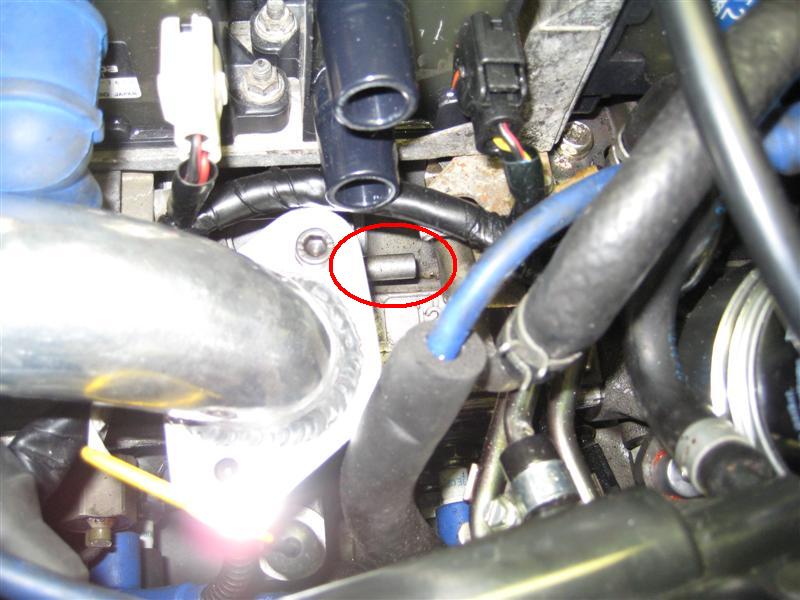

Can someone identify this pipe below the oil filler, coming out the back of the pedestal for the oil filler pipe?

Is this something that needs to be blocked off, or is it OK as is?
Attached Thumbnails Pipe on Oil Filler Pedestal-oil_filler_pedestal-medium-.jpg
jkstill is offline
Reply Like
Old 03-09-08, 08:09 PM
  #2
Banned. I got OWNED!!!

GARCO MOTORWORKS's Avatar

Join Date: Jul 2004
Location: next to the polishing wheel!!!
Posts: 1,179
Likes: 0
Received 1 Like on 1 Post
Crank case vent for a sec gen . My motor was built with a sec gen iron and I run a hose out of the nipple to a filter then from the filter to under the car for a crank case vent . The filter is positioned so the oil that is in the air can drop out and flow back to the motor and not go on the ground .
GARCO MOTORWORKS is offline
Reply Like
Old 03-09-08, 08:30 PM
  #3
I win


skir2222's Avatar

Join Date: Jun 2004
Location: NJ
Posts: 1,875
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by GARCO MOTORWORKS
Crank case vent for a sec gen . My motor was built with a sec gen iron and I run a hose out of the nipple to a filter then from the filter to under the car for a crank case vent . The filter is positioned so the oil that is in the air can drop out and flow back to the motor and not go on the ground .
I was going to say I defiantly never seen that on my motor! Nice to know though.
skir2222 is offline
Reply Like
Old 03-10-08, 10:53 AM
  #4
Searching for 10th's

Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,247
Received 29 Likes on 18 Posts
Interesting. So if that pipe has not been blocked off in some way, it needs to be connected line to return the oil somewhere.

I will see if I can probe it with a wire to determine if it is blocked off.

Any reason I could not just block it off? I have the ReSpeed filler pipe, and still have the PCV valve connected.

The reason I was looking at this, is that I found quite a bit of oil on top of the engine, and it had run down the block, making it appear that the oil pan was leaking.
jkstill is offline
Reply Like
Old 03-10-08, 04:16 PM
  #5
Banned. I got OWNED!!!

GARCO MOTORWORKS's Avatar

Join Date: Jul 2004
Location: next to the polishing wheel!!!
Posts: 1,179
Likes: 0
Received 1 Like on 1 Post
Yes just block it off , I do use mine but on several I have pulled the tube and threaded the hole and put in a plug .
GARCO MOTORWORKS is offline
Reply Like
Old 03-25-08, 01:58 PM
  #6
Searching for 10th's

Thread Starter
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,247
Received 29 Likes on 18 Posts
Originally Posted by GARCO MOTORWORKS
Crank case vent for a sec gen . My motor was built with a sec gen iron and I run a hose out of the nipple to a filter then from the filter to under the car for a crank case vent . The filter is positioned so the oil that is in the air can drop out and flow back to the motor and not go on the ground .
I asked Rob at Pineapple Racing about this as well.

To paraphrase, this is 3rd gen iron. The 2nd gen ports would not line up for an FD.

The early FD's had this pipe, and it came plugged from the factory.
jkstill is offline
Reply Like
Old 03-25-08, 03:12 PM
  #7
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,022
Received 866 Likes on 615 Posts
Originally Posted by jkstill
I asked Rob at Pineapple Racing about this as well....
The early FD's had this pipe, and it came plugged from the factory.
^ I think I can confirm. My 93 has it, it is plugged and it's the original motor.
Sgtblue is offline
Reply Like

Trending Topics

Old 05-18-09, 04:57 PM
  #8
Rotary Freak

iTrader: (7)

ScrappyDoo's Avatar

Join Date: Nov 2004
Location: Woodbridge, Ontario
Posts: 1,855
Received 0 Likes on 0 Posts
I know this thread is a year old but I think I am leaking oil out the same pipe.

When someone said that it is plugged from factory do they mean from within? Or is is capped externally?

Thanks in advance.
ScrappyDoo is offline
Reply Like
Old 05-18-09, 05:39 PM
  #9
ERTW

iTrader: (4)

rd_turbo's Avatar

Join Date: Oct 2004
Location: Mississauga, ON
Posts: 810
Likes: 0
Received 0 Likes on 0 Posts
The embossed region is either not drilled and the nipple is not there or capped with a rubber cap.
rd_turbo is offline
Reply Like
Old 05-18-09, 05:42 PM
  #10
Junior Member

InfoManiac's Avatar

Join Date: May 2009
Location: DE
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
What garco said is correct
InfoManiac is offline
Reply Like
Old 05-18-09, 06:04 PM
  #11
Rotary Freak

iTrader: (7)

ScrappyDoo's Avatar

Join Date: Nov 2004
Location: Woodbridge, Ontario
Posts: 1,855
Received 0 Likes on 0 Posts
Thanks for the quick reponses.
ScrappyDoo is offline
