Pics of my new set up

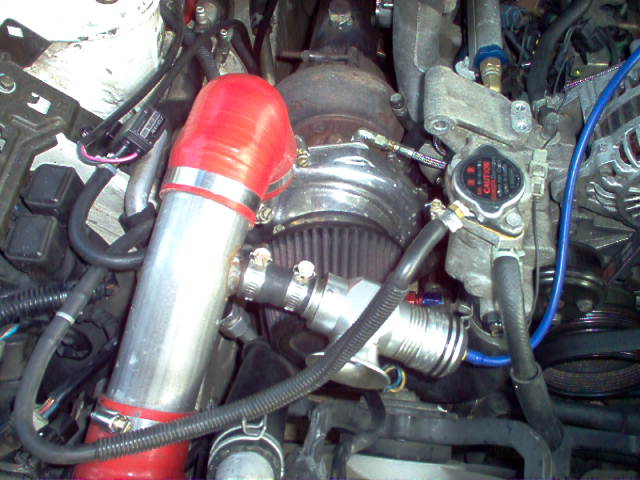

hey guys...although i still have a lot of cleaning up to do in the engine bay i thought id share a few (bad quality pics) of my new set up
#2
T-bird painter
Thread Starter
Join Date: Feb 2003
Location: nellis airforce base, las vegas
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts

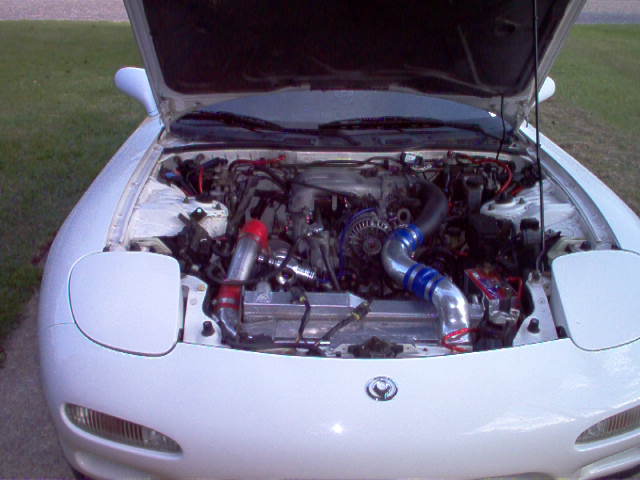

another

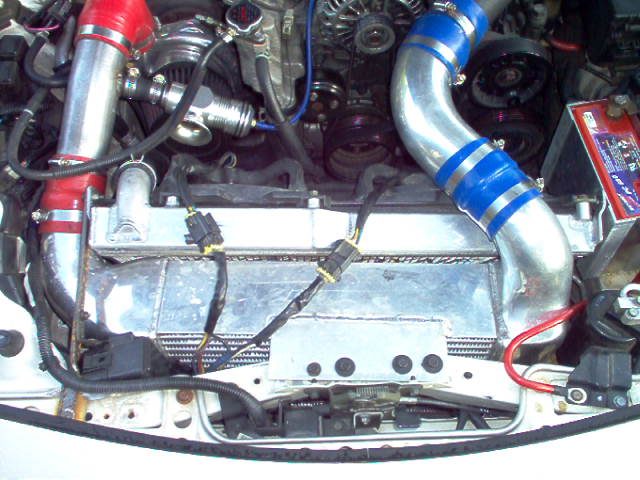

i made a write up of how i went single turbo for under 5k...heres the greddy 2 row i got for 300 bucks..yeah im a bargain shopper
#4
T-bird painter
Thread Starter
Join Date: Feb 2003
Location: nellis airforce base, las vegas
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts

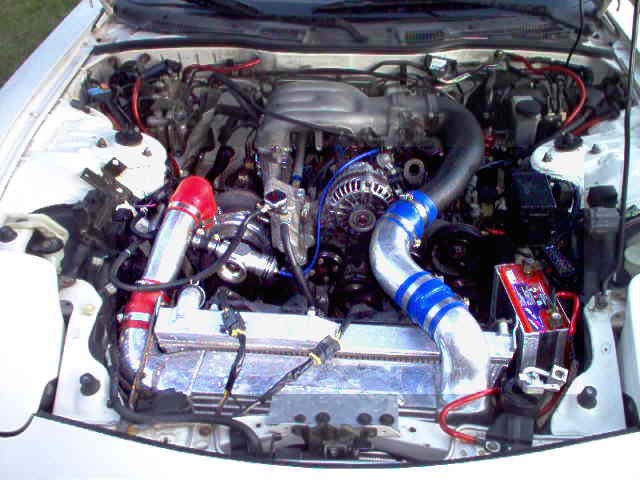

last one
hope to have dyno results soon...took it to the track on a bad clutch and still managed a 12.7 slippiin 3rd gear everytime. tell me what ya all think...once again sorry for the bad pics
Trending Topics
#9
Banned. I got OWNED!!!
Join Date: Jul 2002
Location: DC
Posts: 1,035
Likes: 0
Received 0 Likes
on
0 Posts
If you don't mind..
Can you list all the mods you got on your fd,
to support your single.
I assume you using you are tuned.. By who?
what you set you A/F ratio ?
How much boost you running to run your 12.7et?
Can you list all the mods you got on your fd,
to support your single.
I assume you using you are tuned.. By who?
what you set you A/F ratio ?
How much boost you running to run your 12.7et?
#10
T-bird painter
Thread Starter
Join Date: Feb 2003
Location: nellis airforce base, las vegas
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts
yeah here is a rundown
turbo garrett 62-1...400bucks
manifold-200bucks
powerfc and commander-1100bucks
wastegate-300bucks
k2rd fuelrail-100 bucks
bosch 1600cc injectors-100bucks
aeromotive fuel pressure reg-125bucks
nippondenso fuel pump-125bucks
block off plates-70bucks
greddy (trust) two row ic...get this...350bucks
bov...had one already
profecbspec2 boost controller-250bucks
oil lines-free
plug wires-free
downpipe-free
couplers and clamps-100bucks
total:3220 bucks
oh yeah 500 for install and tuning
turbo garrett 62-1...400bucks
manifold-200bucks
powerfc and commander-1100bucks
wastegate-300bucks
k2rd fuelrail-100 bucks
bosch 1600cc injectors-100bucks
aeromotive fuel pressure reg-125bucks
nippondenso fuel pump-125bucks
block off plates-70bucks
greddy (trust) two row ic...get this...350bucks
bov...had one already
profecbspec2 boost controller-250bucks
oil lines-free
plug wires-free
downpipe-free
couplers and clamps-100bucks
total:3220 bucks
oh yeah 500 for install and tuning
#11
T-bird painter
Thread Starter
Join Date: Feb 2003
Location: nellis airforce base, las vegas
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts
i was at 15lbs of boost during the run...i have to get dyno tuned to dial things in a little better...my installer and tuner was steve osley "stevenoz" from the forum...he is awesome.
