OS Giken Twin Plate

So I got this from a place that got an FD clip. I have a couple of questions.

1. Does anyone know the model # for this part?
2. Do I need the pull to push converter?
3. Is the release bearing different from stock one, do I need a new/different release and pilot bearing?
4. What other parts will I need to make this work on my FD?

Thanks.

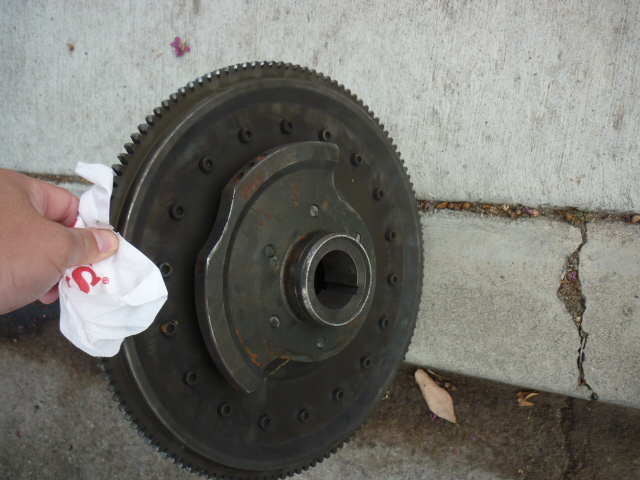

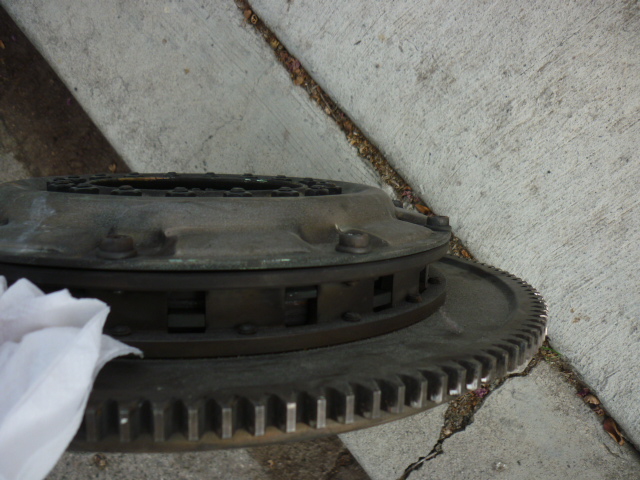

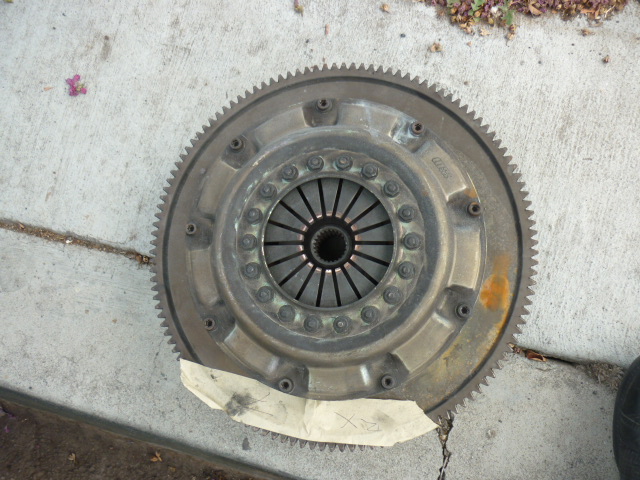

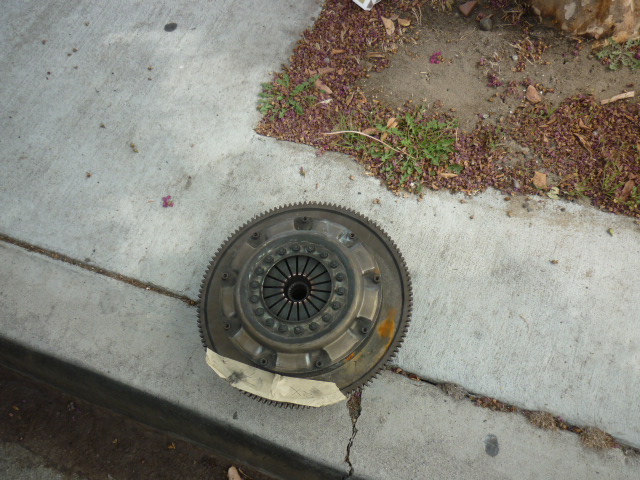

Attached Thumbnails OS Giken Twin Plate-p1480372.jpg   OS Giken Twin Plate-p1480373.jpg   OS Giken Twin Plate-p1480374.jpg   OS Giken Twin Plate-p1480375.jpg   OS Giken Twin Plate-p1480376.jpg

Reply
Old Oct 3, 2011 | 10:20 PM
  #2
FCNAred's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (2)

Joined: Oct 2001
Posts: 678
Likes: 0
From: Baltimore
you will need a pull to push converter for that older model clutch. it should come with right bearing for the setup which will be OS giken specific and have a specific offset for twinplate clutch vs single or triple. Depending on how much meat is left on there, it might be cheaper just to sell it to someone with an FC and get a new clutch. The cost of the setup parts to run that clutch may prove to be prohibitively expensive especially if it isn't in very very good shape to begin with.
