Oily air filters in M2 Box
#1
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Oily air filters in M2 Box

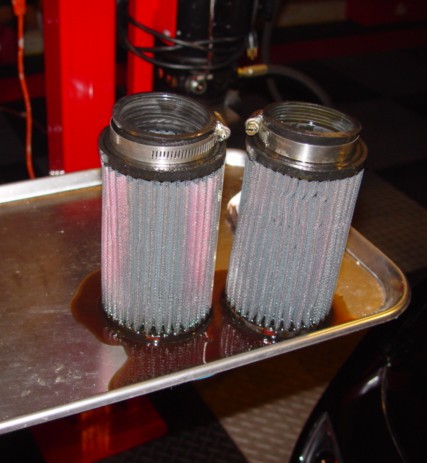

Any one have air filters this oily?
I had a oil leak but I could not find the source. Till I opened up the M2 air box. The FD is driven <1000 miles a year. The turbo's have been rebuilt about 3 years ago along with the motor and has about 10K miles since I bought the FD.

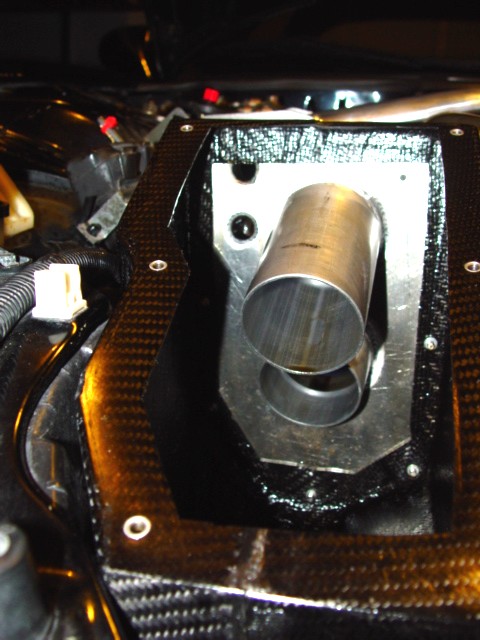

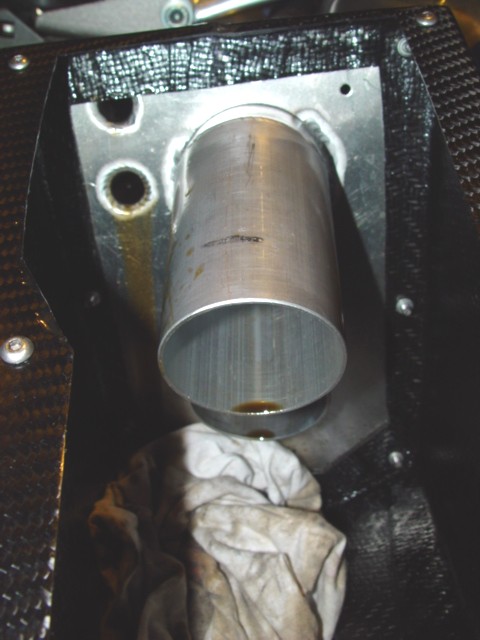

The air box had oil pooled inside it. The pic is after I wiped the oil out.
I'm not sure where to start to find problem. But if the turbo's have 10K on them I would have expected them to last longer. I expect the IC may have oil in them as well. So I will pull it to drain if any.
The FD runs great pulls in all gears even breaks traction when 2nd turbo's come on line on 1st and 2nd gear.
Oil lines and oil pan don't leak. Apparently the oil has accumilated in air box then finally leaked out the bottom of M2 box. Any suggestions on problem?
I had a oil leak but I could not find the source. Till I opened up the M2 air box. The FD is driven <1000 miles a year. The turbo's have been rebuilt about 3 years ago along with the motor and has about 10K miles since I bought the FD.
The air box had oil pooled inside it. The pic is after I wiped the oil out.
I'm not sure where to start to find problem. But if the turbo's have 10K on them I would have expected them to last longer. I expect the IC may have oil in them as well. So I will pull it to drain if any.
The FD runs great pulls in all gears even breaks traction when 2nd turbo's come on line on 1st and 2nd gear.
Oil lines and oil pan don't leak. Apparently the oil has accumilated in air box then finally leaked out the bottom of M2 box. Any suggestions on problem?
Last edited by powermalex; 12-27-04 at 12:55 AM.
#3
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rated R1
It's oil blowing from the turbos and probably getting into the box via the BOV and/or the CRV. I would not worry about it too much.
Is that, that normal to have that much oil blowing from the BOV? The accumulation is based on <3000 miles on these filters. When I do drive though I do drive it hard and hit 2nd turbo's at least in 1st to 3rd gear.
I was thinking of pulling the turbo's to make sure the return lines are clear.
Could the seal on the turbo shaft gone bad and started leaking?
#6
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by allenhah
I think it's considered fairly normal. I have the older M2 CAI, which has the separate ports for the different hoses, so it's easier to see where the oil comes from, and I could see little spray patterns of oil coming from the stock BOV hose.
If its all coming from the BOV then I will have a custom can built into the M2 box that I will just drain every other tank full of gas. May even put a drain plug at the bottom of the intercooler.
(What is CRV ackronym stand for?)
Any one else have that much oil blow by?
#7
Rotary Enthusiast
iTrader: (5)
This is not normal.
I've had an M2 CAI for several years and usually clean the filters annually, 5 to 10K mi, and only have a thin film of oil that's heavier by the connects for the blow off valve and charge relief valve.
I'd be suspect of those rebuilt turbos. It could also be problems with the PCV valve but more lekely the turbos. Your intercooler and piping is probably full of oil too.
Jack
I've had an M2 CAI for several years and usually clean the filters annually, 5 to 10K mi, and only have a thin film of oil that's heavier by the connects for the blow off valve and charge relief valve.
I'd be suspect of those rebuilt turbos. It could also be problems with the PCV valve but more lekely the turbos. Your intercooler and piping is probably full of oil too.
Jack
Trending Topics
#10
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Looks like the internals of the turbos are shot. This suck they work great but leak oil interally on the compressor side. Anyone have a parts breakdown of the Hitachi turbo's. I'd like to rebuild them myself. I have a reciept from the previous owner from Majestic Turbo's Looks like they rebuilt it twice.
#12
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
I'm looking to just upgrade to the 99 spec twins. Doe any one know if thats a ball bearing setup?
I like the sequential set up. Anyone know of a good place to buy one.
I like the sequential set up. Anyone know of a good place to buy one.
#13
All Spooled Up
iTrader: (7)
Take them off and tear them down yourself, it's not that hard to do. Take good pics and notes as you dismantle the parts. USe scribe marks on all the mating surfaces while dissembling. Order two new overhaul kits for your unit. Spread the parts out on a good clean work table, clean everything up very good. Check for cracks throughout the passages. Do some porting while you're there, especially on the wastegate. I have a ton of pictures of where I overhauled my own stock turbos 4 years ago, also went Non-sequential while I was in there. Now I'm single turbo.
If you have the time, skill level and patience - Do it yourself. You'll appreciate your effort when the car is back up and running.
Tom
If you have the time, skill level and patience - Do it yourself. You'll appreciate your effort when the car is back up and running.
Tom
#14
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by badddrx7
Take them off and tear them down yourself, it's not that hard to do. Take good pics and notes as you dismantle the parts. USe scribe marks on all the mating surfaces while dissembling. Order two new overhaul kits for your unit. Spread the parts out on a good clean work table, clean everything up very good. Check for cracks throughout the passages. Do some porting while you're there, especially on the wastegate. I have a ton of pictures of where I overhauled my own stock turbos 4 years ago, also went Non-sequential while I was in there. Now I'm single turbo.
If you have the time, skill level and patience - Do it yourself. You'll appreciate your effort when the car is back up and running.
Tom
If you have the time, skill level and patience - Do it yourself. You'll appreciate your effort when the car is back up and running.
Tom
Tom
Send me pics. (powermalex@aol.com) The efini turbos are $2595.00 from RX7.com
My turbos have been rebuilt before with ~10K mile on them.
I may just have a bad rebuild. Anyway I may want to rebuild with ball bearing.
Alex
#15
Urban Combat Vet
iTrader: (16)
Originally Posted by powermalex
I'm looking to just upgrade to the 99 spec twins. Doe any one know if thats a ball bearing setup?
I like the sequential set up. Anyone know of a good place to buy one.
I like the sequential set up. Anyone know of a good place to buy one.
#17
Urban Combat Vet
iTrader: (16)
Originally Posted by powermalex
BNR have a web site?
http://www.bnrsupercars.com/
Looks like the site is under contruction...only a phone number. Search under BNR for the latest posts about them. I know GoodfellaFD3S likes his and seems to know about them. I'm not endorsing them, it's just that I'm probably going to be replacing/rebuilding mine within the next year or so and looking at options.
https://www.rx7club.com/time-slips-dyno-121/dynoed-new-bnr-twins-low-boost-341297/
Last edited by Sgtblue; 12-27-04 at 08:42 PM.
#19
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 7Langit
Rotary Performance has Efini ball bearing turbos for sequential OEM setups. They claim 20 more hp I believe, plus much faster spool-up.
I'm looking at those Efini Turbos. I'll call them Tuesday if they have them in stock and are ball bearing. I'm going to pull my turbos out tomorrow as well.
With any luck they are rebuildable. If not I'm going with a new Efini.
#20
Rotary Enthusiast
iTrader: (5)
The Efini twins are not ball bearing. Those are a good choice since they are totally new turbos. If you have the supporting mods or intend to build your car up, then consider the BNR's.
It wasn't just a bad rebuild you had. Most rebuilt turbos don't last if you manage to get a set that works for a while.
It wasn't just a bad rebuild you had. Most rebuilt turbos don't last if you manage to get a set that works for a while.
#21
Glug Glug Glug Burp
Join Date: Jan 2002
Location: Scott AFB, IL
Posts: 3,819
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 7Langit
Rotary Performance has Efini ball bearing turbos for sequential OEM setups. They claim 20 more hp I believe, plus much faster spool-up.
Alex, got your call. Was a little late listening to my voicemail, so I'll call you back tomorrow. I don't believe there is any kind of "BB rebuild" available for the stockers.. IIRC, the M2 BB twins required a little more than just removing shafts and converting to BB. I could be wrong though. There was a thread around here somewhere.. I think SPOautos had a set? Someone did... can't remember the results though. I'll see if I can dig it up.
Justin
#22
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Well I pulled the turbos out. The 2nd turbos are shot. Lots of end play. I plan to rebuild them myself and have them as standby when the Efini turbo's go out. So based on the amount of driving the FD see's that will be in about 20 years. May be I'll just sell the core.
Anyone know of a rebuild kit with ball bearings replacement. I assume they are better than the bushings.
Comments anyone ball bearing vs. bushings for turbo rebuild?
Anyone know of a rebuild kit with ball bearings replacement. I assume they are better than the bushings.
Comments anyone ball bearing vs. bushings for turbo rebuild?
#24
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
#25
Senior Member
Thread Starter
Join Date: May 2002
Location: MidWest
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts

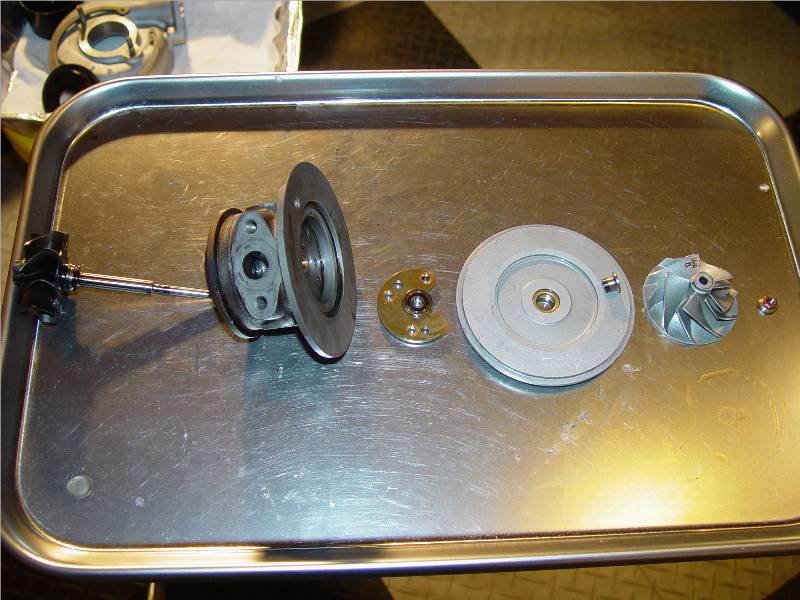

Well took apart the 2nd turbos. Looks like it was a bad rebuild. Anyway I decided to go with new Efini Turbos. Just finished with the install and back from a test run. Damn thing is crazy. Tires break traction fast to 2nd gear. Now I have a new problem. The turbos spool up fast and when the 2nd turbos come on line its peaking at 16.5 psi ~17psi.
I got to get her back down to 13 psi At least thats what M2 tells me the Stage 3 ECU can handle.
Looks like its time for larger injectors, fuel pump and Power FC so I don't knock the motor.
Anyone know a cheap way to get her back down. Some one suggested to drill out the waste gate pill or install a Home Depot boost controller.
Comments welcome. Anybody want to buy a use twin core, secondaries are shot. It needs a new shaft.
I got to get her back down to 13 psi At least thats what M2 tells me the Stage 3 ECU can handle.
Looks like its time for larger injectors, fuel pump and Power FC so I don't knock the motor.
Anyone know a cheap way to get her back down. Some one suggested to drill out the waste gate pill or install a Home Depot boost controller.
Comments welcome. Anybody want to buy a use twin core, secondaries are shot. It needs a new shaft.
Last edited by powermalex; 02-09-05 at 10:08 PM.
