Oil Neck lines

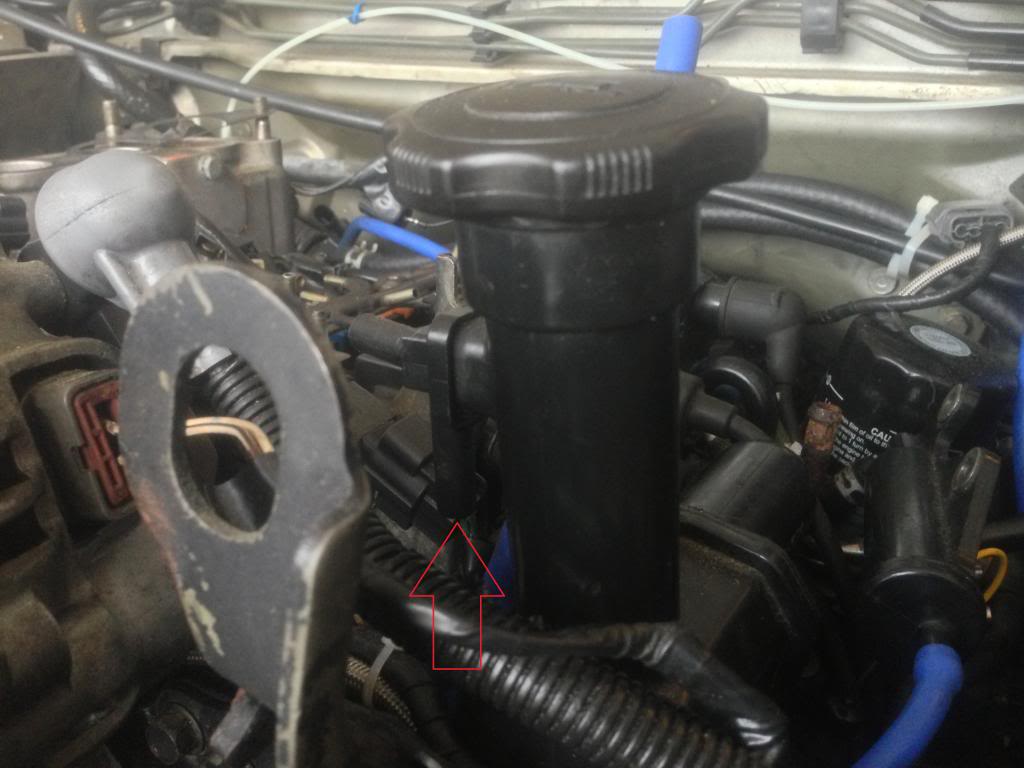

Hey guys I cant find a picture of where the lines going to the oil neck are and I was wondering if you could help me figure out what goes on here.

Name: oilneckarow.jpg Views: 12 Size: 71.1 KB
tafkamb2 is offline
Reply Like
Old 02-13-13, 03:29 PM
  #2
Original Gangster/Rotary!


iTrader: (213)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 30,529
Received 539 Likes on 326 Posts
Top one goes to the UIM with the PCV valve inline, bottom one has a molded hose which goes to an OEM hardline which routes it over to a nipple on the black plastic elbow mounted to the front turbo compressor inlet.
GoodfellaFD3S is offline
Reply Like
Old 02-13-13, 03:58 PM
  #3
Senior Member

Thread Starter

tafkamb2's Avatar

Join Date: Jun 2007
Location: florida
Posts: 483
Likes: 0
Received 1 Like on 1 Post
Oh now it makes sense I changed out the twins and put on a single turbo. Thanks for the info!
tafkamb2 is offline
Reply Like
Old 02-15-13, 02:05 PM
  #4
JBF
Senior Member
iTrader: (13)

JBF's Avatar

Join Date: Apr 2011
Location: Willow Springs, CA
Posts: 605
Likes: 0
Received 2 Likes on 2 Posts
If you're using an RE-Speed neck with the -10AN fitting, what is the recommended usage for it to work with the UIM and PCV?
