3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.
Sponsored by:

Non seq turbo's now with picture how-to

Thread Tools

Search this Thread

Old Feb 2, 2006 | 04:53 PM
  #1
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Non seq turbo's now with picture how-to

Like many others I have taken the decision to convert my turbo system to non sequential. Although I did extended research before I started this I mostly found only theoretical input (scruderia website). Still I, and maybe a lot of others are still left behind with a lot of questions.

I have added some pictures to give comment to. I guess that the persons who are daring enough to take this job on are technically capable to remove the turbo's, something I already did months ago.

Pictures:

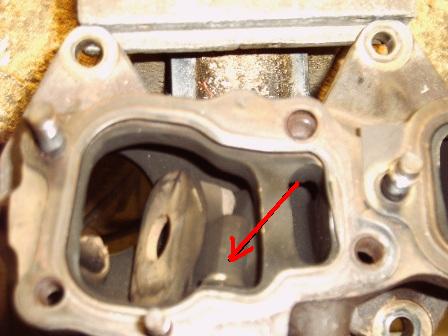

1. the exhaust manifold wastegate whit an arow where I will cut it. No need for this anymore as this is the flapper controlling the prim and sec turbo.

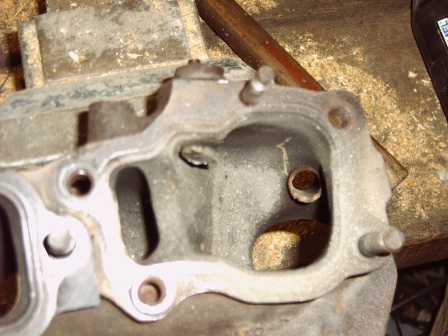

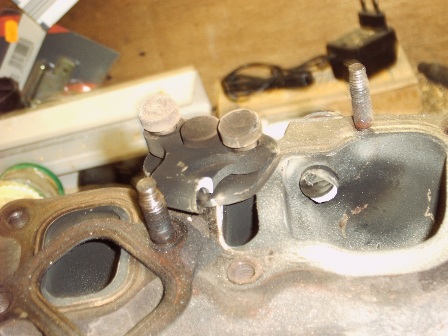

2. This shows the flapper cut off. On the outside part of the flapper you will need to put a weld. There is already a small plate point welded the the manifold so at least you do not need to weld it to casted steel which needs special treatment when directly welded to it (relief from tension)
3. Cut away of the flapper

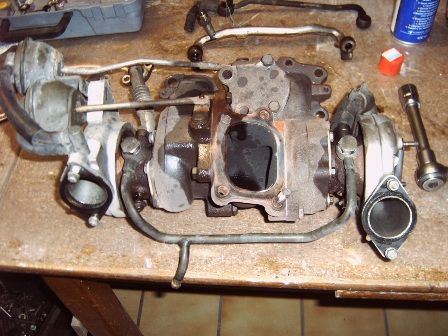

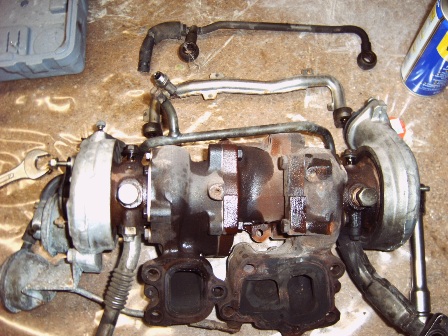

4 and 5 Remove the oiline in order to be able to part the turbo's from the manifold. Make a picture to remeber what goes where.
Attached Thumbnails Non seq turbo's now with picture how-to-exh-manifold-wastegate.jpg   Non seq turbo's now with picture how-to-flapper-cut.jpg   Non seq turbo's now with picture how-to-cut-wastegate.jpg   Non seq turbo's now with picture how-to-oil-line.jpg   Non seq turbo's now with picture how-to-oil-lines.jpg


Last edited by Speedworks; Feb 2, 2006 at 04:57 PM.
Reply
Old Feb 2, 2006 | 05:09 PM
  #2
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium

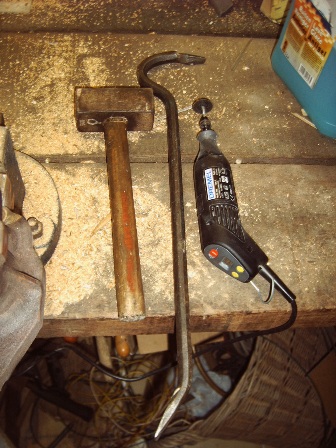

1. Tools I used to cut the flapper off. Dremel, hamer and iron. I made a cut about 3/4 deep and then smacked the upper end of the iron in the slot.. 2 smacks and broke rightoff.
2. Turbo's are apart. You will need to loosen up the C-clips of the actuators. This is very simpel. Put a wide and thick flathead screwdriver against the 2 tips of the clip and tap the handheld of the screwdriver with the palm off your hand. The clip will jump right off. Remember to catcj it.

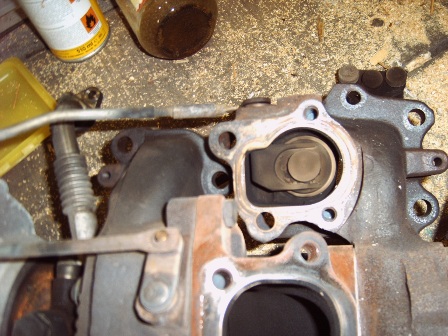

3 this is the waste gate of the primary turbo (right?).

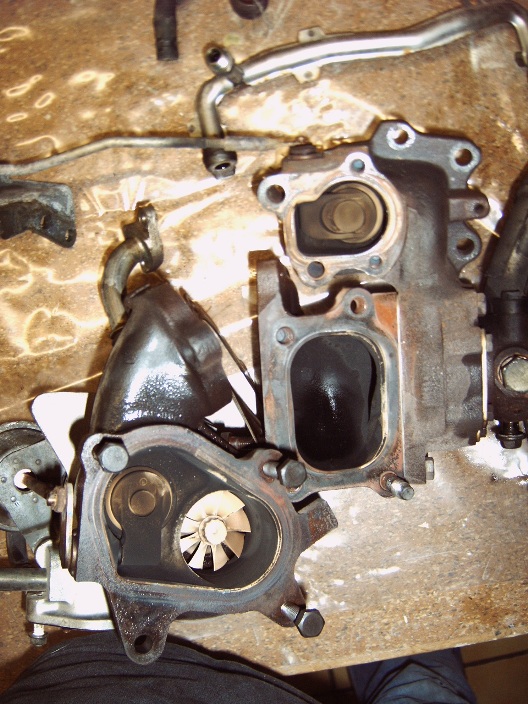

4 Both primary and secundary turbo waste gates

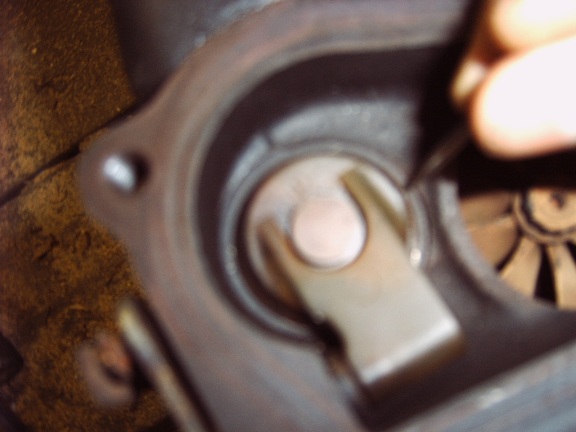

the wastegae holes are 2.56 cm wide and according to the wastegate porting threads they need to be opened up untill 1.25inches (3.18cm)
A first check means that 1.25" would be as wide as the flapper plate, making me doubt if it will still close at all.

Secondly, are you supposed to port both wastegates or only one? The primary wastegate is easy accessible with the flapper open, the secondairy turbo wastegate flapper cannot be oopened fully and would give great trouble reaching the port.

Any advice?
Many thanks
Attached Thumbnails Non seq turbo's now with picture how-to-tools.jpg   Non seq turbo's now with picture how-to-turbos-apart.jpg   Non seq turbo's now with picture how-to-wastegate-prim-turbo.jpg   Non seq turbo's now with picture how-to-wastegates.jpg
Reply
Old Feb 3, 2006 | 01:38 AM
  #3
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Guys??
Reply
Old Feb 3, 2006 | 08:38 AM
  #4
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
nobody has any comments on the wastegate porting? How much needs to be done and is it for both gates or just one?

I would like to do it this weekend :p
Reply
Old Feb 3, 2006 | 09:27 AM
  #5
dubulup's Avatar
development
Tenured Member 15 Years

Joined: Aug 2002
Posts: 5,714
Likes: 7
From: Lafayette, LA
There is only one WG port that needs to be worked.

you should remove or weld the pre-control door shut.
Reply
Old Feb 3, 2006 | 11:12 AM
  #6
12anitroussandrail's Avatar
Junior Member
Tenured Member 05 Years

Joined: Oct 2004
Posts: 15
Likes: 0
From: cali
does anybody know where i can get the flanges for the front and rear turbos for this year. i have the turboes and want to install them on a 1st gen 13b.
Reply
Old Feb 5, 2006 | 03:51 PM
  #7
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Update

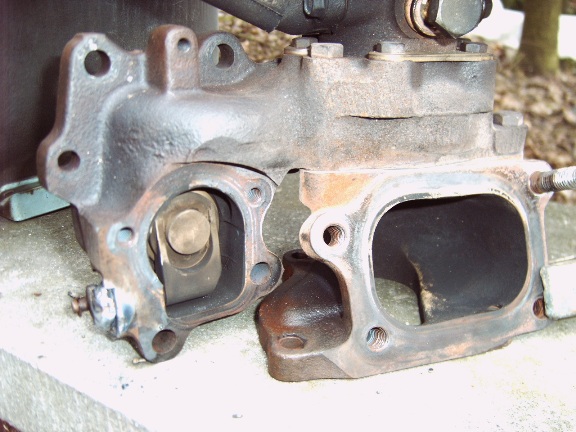

Yesterday I decided to do the weldings on the wastegate flappers (see pics)

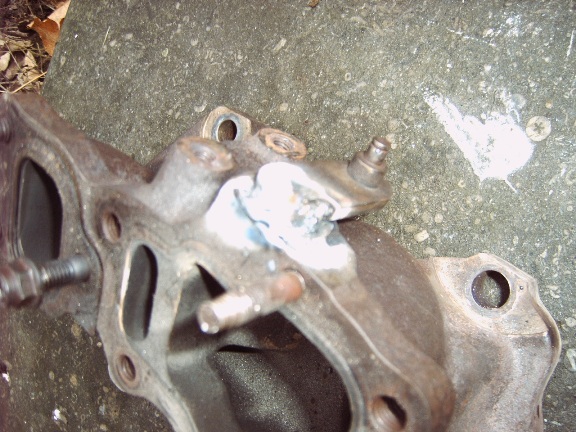

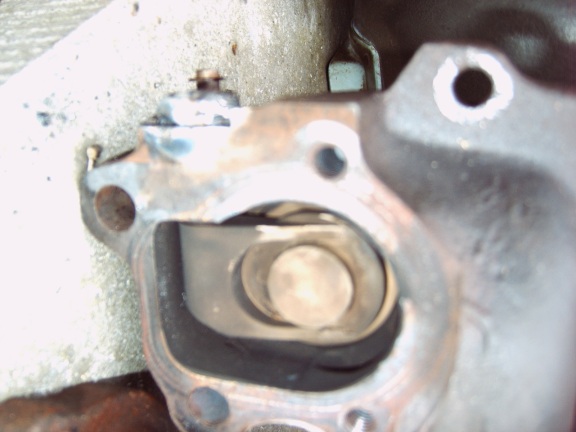

1. I welded the exhaust manifld flapper. it was already cut off but to prevent it from rambling around I spot welded it.

2. The secundary wastegate has been welded. wether this is open or closed doesn't really matter anymore in my believe because the exhaust manifold door has been removed. In my opinion it's better closed therefor making the chamber between exhaust port and turbine smaller, hopefully decreasing the lag in that way. Any additional foundation for this? Well I tend to believe it creates some kind of a venturi where air is being speeded up in a natural way.
Anyway it won't speed up much here because the shape doesn't allow undisturbed flow but that's basically my theory. Closing the door will also decrease the volume of this chamber, thus lowering the amount of exhaust gases that need to fill this room before making the turbine spool.

3 additional picture of the welds.

Luckily the turbo manifolds all have little steel plates between the flapper levers and the manifold preventing you to be welding to cast steel which forces you to "untension" it by heating it up red hot or taping the part with a hammer untill it's completely cooled.

Ofcourse, this is meant to be a FULL non seq conversion. No turning back here.
Attached Thumbnails Non seq turbo's now with picture how-to-precontorl-wastegate-welded.jpg   Non seq turbo's now with picture how-to-precontrol.jpg   Non seq turbo's now with picture how-to-exh-manifold-welded.jpg
Reply
Old Feb 16, 2006 | 12:40 PM
  #8
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Update

Due to a busy schedule at work (presentation of the new '06 Hyundai Santa Fe) I had little time to work on he non seq project.

Basically I was thinking to port the wastegate with my Dremel but I returned from that option because it would take to much of my time.

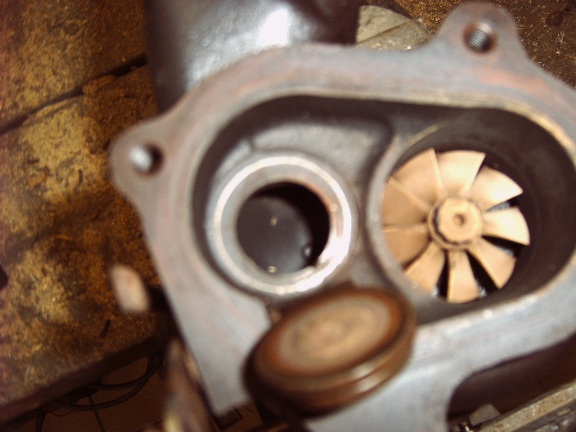

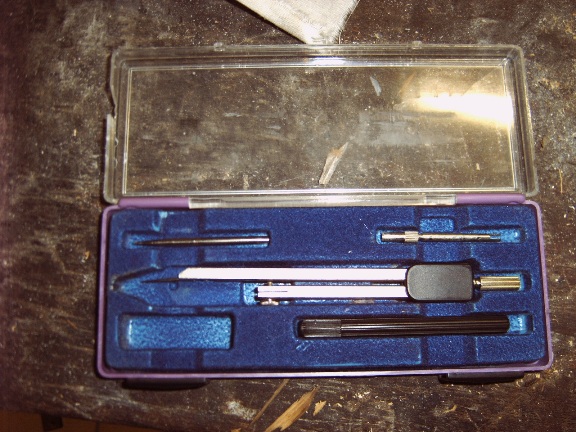

The added pictures show the "tool" I used, the wastegate closed and then opened with the outher markings. Basically you need to take of 2mm all around to port it to 1.24". BUT,the wastegate is going pretty deep into the housing so I just recommend you go to a machine shop and have it machined.


to bad for the bad pictures... my digicam is just a piece of crap I guess
Attached Thumbnails Non seq turbo's now with picture how-to-tool.jpg   Non seq turbo's now with picture how-to-wastegate-marking.jpg   Non seq turbo's now with picture how-to-wastegate-marked.jpg
Reply
Old Feb 16, 2006 | 02:44 PM
  #9
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium

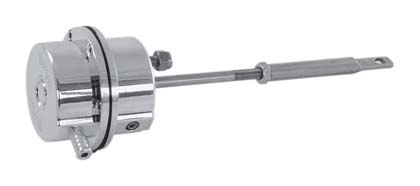

I'm also looking at the possibility to use an adjustable actuator touse on the wastegate instead of the OEm one. The brand is Forge and well known for it's quality. The internals can be exchanged with higher/lower load springs.Maybe this can contribute to limiting the boost creep and spikes?
Attached Thumbnails Non seq turbo's now with picture how-to-fmacs14s-adjustable-actuator.jpg

Last edited by Speedworks; Feb 16, 2006 at 02:54 PM.
Reply
Old Feb 19, 2006 | 06:45 AM
  #10
dgeesaman's Avatar
Moderator
Tenured Member: 20 Years
Liked
Loved
iTrader: (8)

Joined: May 2002
Posts: 12,313
Likes: 27
From: Hershey PA
I don't think it will offer any help, since porting the wastegate solves boost creep.

Using a heavier spring might work very well for people with a PFC in combination with the stock wg solenoid for boost control. But this solution couldn't possibly beat a ball-spring boost controller for value and adjustability.

But it sure does look nice.

Dave
Reply
Old Feb 19, 2006 | 06:51 AM
  #11
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Thanks, i run a PFC and the ball-spring controller was the choice to control boost. I was just thinking about the heavier spring in the adjustable wastegate actuator which would be more stabile when turning up boost.
Reply
Old Feb 19, 2006 | 06:54 AM
  #12
dgeesaman's Avatar
Moderator
Tenured Member: 20 Years
Liked
Loved
iTrader: (8)

Joined: May 2002
Posts: 12,313
Likes: 27
From: Hershey PA
I think you'll run into limits with your turbo efficiency before a stock wastegate actuator will have issues.

Dave
Reply
Old Mar 18, 2006 | 03:18 AM
  #13
Jed_only_red_RX7's Avatar
Full Member
Tenured Member 05 Years

Joined: Jan 2004
Posts: 122
Likes: 2
From: Jeddah, Saudi Arabia
So did you weld both wastegates for the prime and second Turbos??

Let me know pls as im working on the same setup.
Reply
Old Mar 18, 2006 | 05:24 AM
  #14
samiralfey's Avatar
Sisu, sauna and Sibelius
Tenured Member 05 Years

Joined: Dec 2005
Posts: 106
Likes: 0
From: Sapporo, Japan
Originally Posted by Speedworks
to bad for the bad pictures... my digicam is just a piece of crap I guess
Try to use the macro function when taking close shots
Reply
Old Mar 18, 2006 | 01:03 PM
  #15
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Jed, I replied your PM.

Primary is not to be welded. This one needs machining to allow the wastegate for extra flow.
As i replied in the PM, Having the secundary flapper welded shut or open is up to you
Reply
Old Mar 19, 2006 | 01:49 AM
  #16
Jed_only_red_RX7's Avatar
Full Member
Tenured Member 05 Years

Joined: Jan 2004
Posts: 122
Likes: 2
From: Jeddah, Saudi Arabia
Many Thanks Dude
Reply
Old Mar 19, 2006 | 11:14 AM
  #17
omochi's Avatar
fd-withdrawal
Tenured Member: 20 Years

Joined: Jun 2001
Posts: 673
Likes: 0
From: Canada
did you have to do anything w/ ur vacuum lines?\ i'm asking b/c my nonseq ws done the same way but the rats nest was left untouched.

edit: also, this is for anyone in general- but do you have to adjust anything on a PFC if you run nonseq? in particular, set it to off for seq control? thanks

Last edited by omochi; Mar 19, 2006 at 11:34 AM.
Reply
Old Mar 19, 2006 | 04:21 PM
  #18
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
As far as I'm up to date with my info you can leave all the connectors of the wiring harness connected to the solenoids. At least when you are running a PFC. For other ECU's you might need to use resistors to make everything work.

Yes, the vacuumlines will need to be changed. In any case it will get a LOT more simpeler than the original setup.

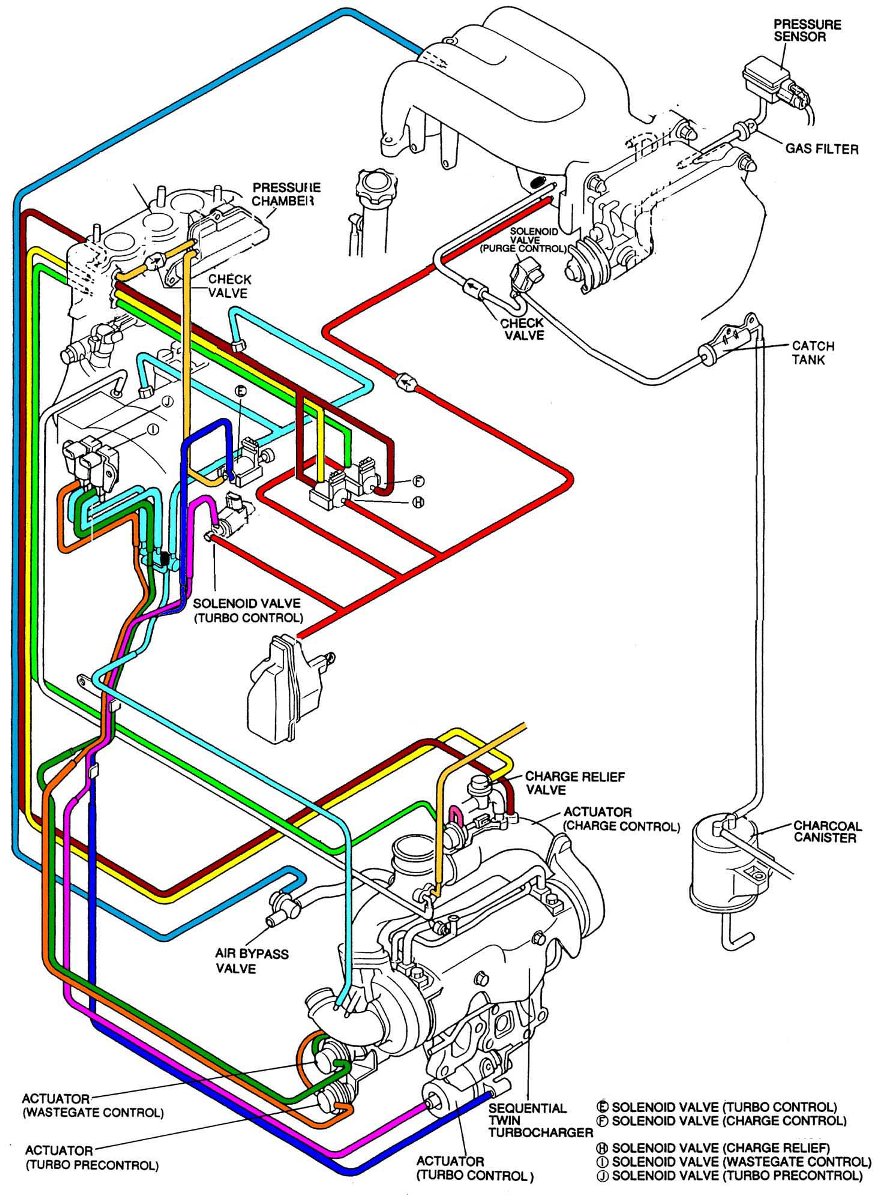

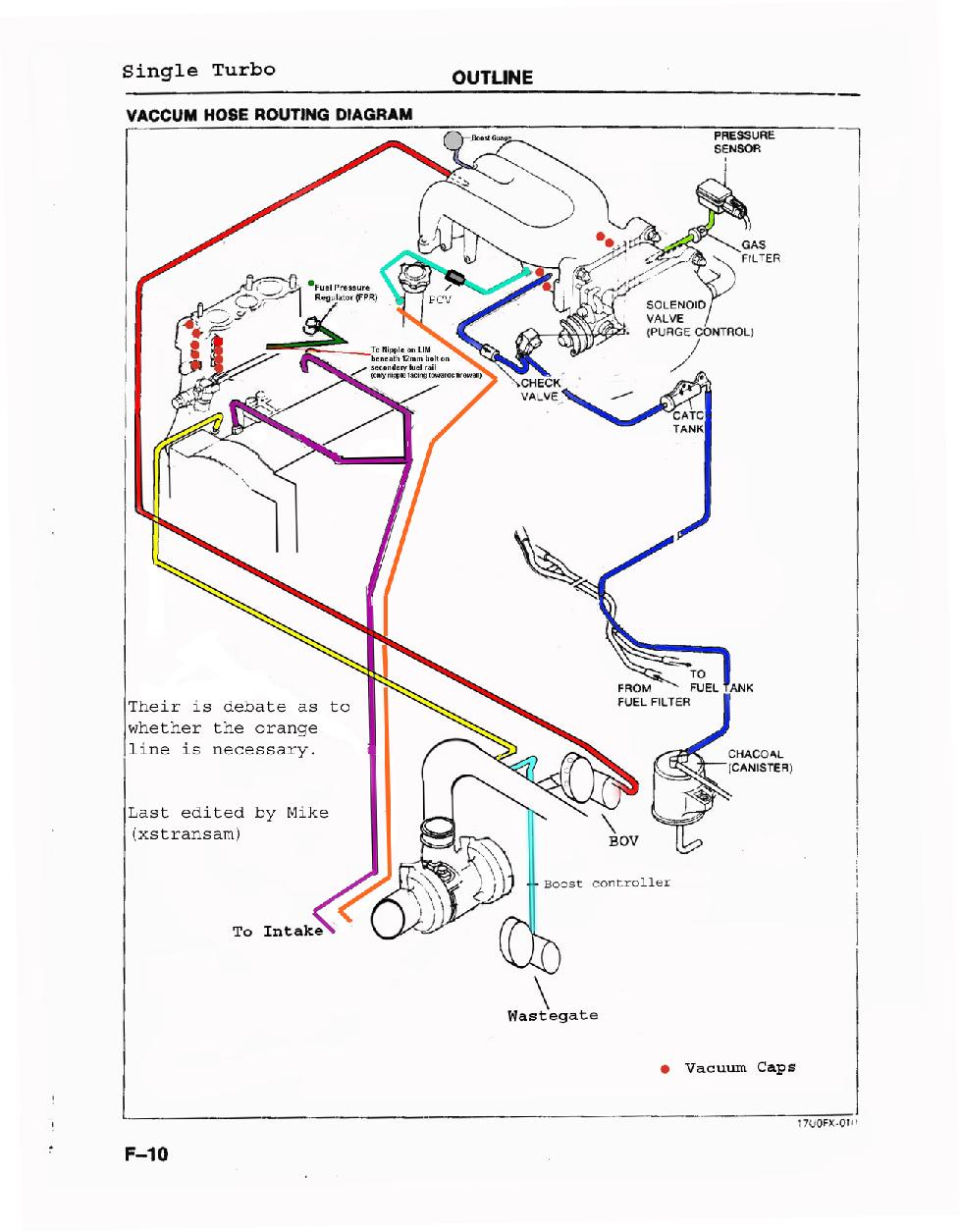

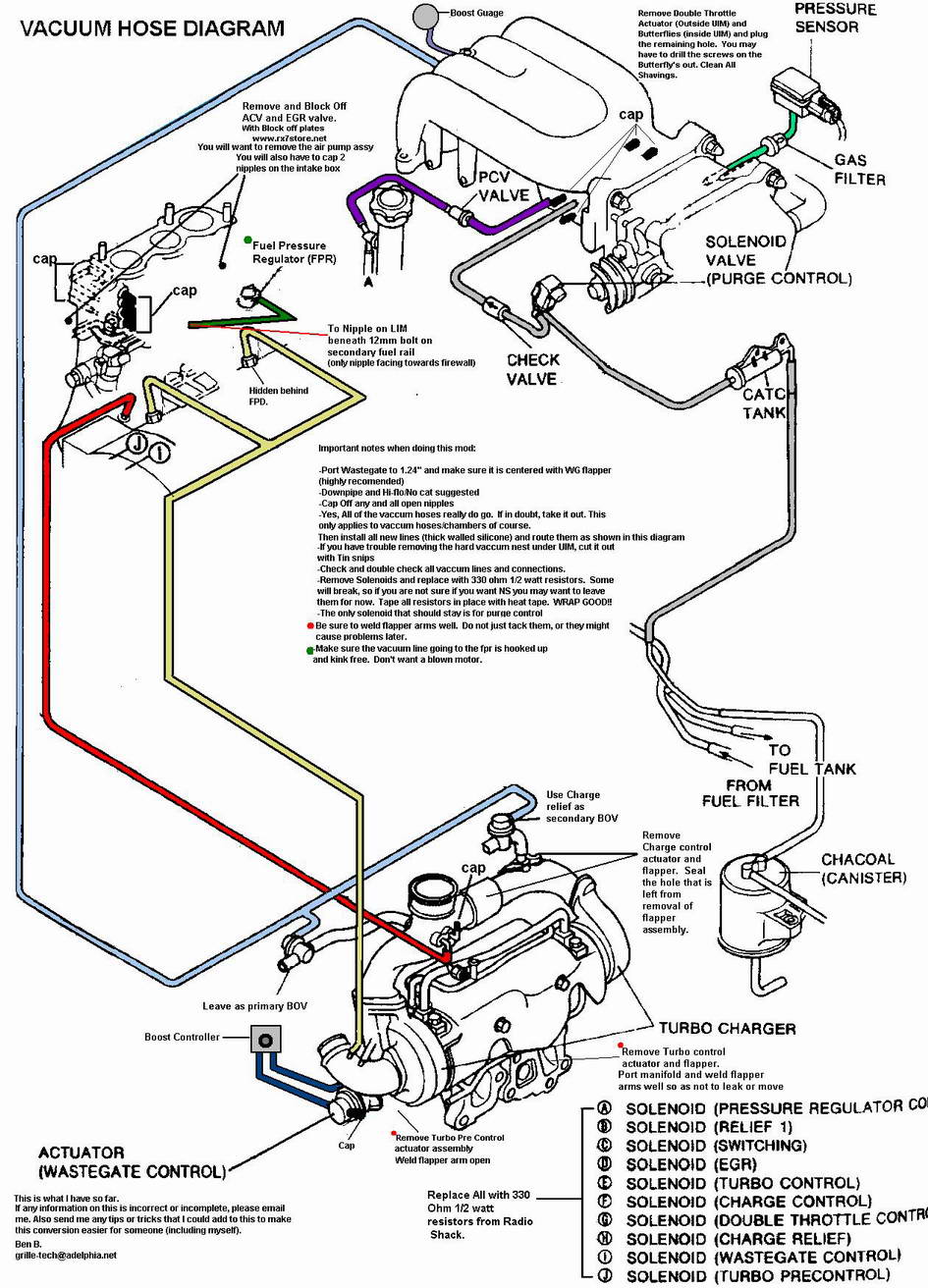

These are some of the vac schemes I found during my search; Idon't know yet what is the best to work with for a FULL non seq setup. If anyone has a final version that works, please feel free to post.
Attached Thumbnails Non seq turbo's now with picture how-to-single-turbo-vacuum-lines.jpg   Non seq turbo's now with picture how-to-nshoses_resize.jpg   Non seq turbo's now with picture how-to-full-non-seq-hsoing.jpg
Reply
Old Mar 19, 2006 | 05:28 PM
  #19
omochi's Avatar
fd-withdrawal
Tenured Member: 20 Years

Joined: Jun 2001
Posts: 673
Likes: 0
From: Canada
Originally Posted by Speedworks
As far as I'm up to date with my info you can leave all the connectors of the wiring harness connected to the solenoids. At least when you are running a PFC. For other ECU's you might need to use resistors to make everything work.

Yes, the vacuumlines will need to be changed. In any case it will get a LOT more simpeler than the original setup.

These are some of the vac schemes I found during my search; Idon't know yet what is the best to work with for a FULL non seq setup. If anyone has a final version that works, please feel free to post.
sorry if this is a dumb q, but what happens if the vac lines are left untouched?

cause i believe mine werent touched, and i'm only getting 5lbs
Reply
Old Mar 19, 2006 | 09:54 PM
  #20
TrevorC's Avatar
spank my wankel, just try
Tenured Member 05 Years

Joined: Feb 2006
Posts: 103
Likes: 0
From: houston
what about the simplified non-seq conversion? Do you still use the turbo control solenoid's and all of that? That was my purpose of doing this so I wouldn't have to worry about these solenois anymore.....but I would still have to replace them when they go bad / if they are bad? =O(
Reply
Old Mar 20, 2006 | 02:33 AM
  #21
Jed_only_red_RX7's Avatar
Full Member
Tenured Member 05 Years

Joined: Jan 2004
Posts: 122
Likes: 2
From: Jeddah, Saudi Arabia
Originally Posted by omochi
sorry if this is a dumb q, but what happens if the vac lines are left untouched?

cause i believe mine werent touched, and i'm only getting 5lbs
Due to the Vacumus thats why ur getting 5lbs (as far as my short knowledge).
Reply
Old Mar 20, 2006 | 02:44 AM
  #22
Jed_only_red_RX7's Avatar
Full Member
Tenured Member 05 Years

Joined: Jan 2004
Posts: 122
Likes: 2
From: Jeddah, Saudi Arabia
Originally Posted by omochi
did you have to do anything w/ ur vacuum lines?\ i'm asking b/c my nonseq ws done the same way but the rats nest was left untouched.

edit: also, this is for anyone in general- but do you have to adjust anything on a PFC if you run nonseq? in particular, set it to off for seq control? thanks
OFCOURSE i changed the vacum Hoses as per the Diagram available in the Forum otherwise the system wont work properly or there will be no BOOST at all.

Actulally i was going for a normal Sequential, but it didnt work out with me as i lacked a lot of parts, i was about to buy it from the State thru some good guys here, but i couldnt due to some family circumistances (BROTHER DEATH).
Reply
Old Mar 20, 2006 | 05:01 AM
  #23
Speedworks's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2004
Posts: 1,891
Likes: 5
From: Belgium
Basically you wsill end up making a vacuum setup like a single turbo (only using one wastegate). So there you will need to 'T' the vac lines of the primand sec turbo together.

What I still need to find out is how to reconnect the vac lines on the solenoids. Either to shut them of or to leave them open.
Reply
Old Apr 10, 2006 | 03:18 PM
  #24
BuckyFD3's Avatar
GT4088R
Tenured Member 05 Years

Joined: Jan 2006
Posts: 467
Likes: 0
From: UK
Why do you need to replace the solenoids with resistors?? This keep the ecu happy???
Reply
Old Apr 10, 2006 | 06:08 PM
  #25
GustavOllufsen's Avatar
Senior Member
Tenured Member 05 Years

Joined: Feb 2006
Posts: 279
Likes: 0
From: dood ranch
couldnt you just leave the solenoids plugged in and just render them completely useless so the ecu doesnt know any better? as you would if you replaced the wastegate and precontrol with mbc's?

ha i dont wanan seem ignorant, and a non-seq has been on my mind for some time now but not too much research has gone into it, just a thought or 2 here and there.

wouldnt you just feed the pressure from both compressors to one line to the main wastegate? (ported of course) and then you could just cap off the pre-control actuator to keep it closed at all times, and just run an MBC between both compressors and the wastegate and run a very simple system that would treat both turbines as one?

Just trying not to get into all the above mentioned work :-/
Reply
