1ga

iTrader: (9)

Hi !

I have 99 JDM FD3S with Power FC, street-ported engine with ALS seals, larger DP, 76 mm exhaust pipe, big Greddy silencer (don't know the name) and stock other items.
I have such boost issue:
1)When I go WOT from 1st gear there is no boost (no more than 0.1 kgfc/mm2 it's about ˜1 psi)
then I shift at 2nd gear , go WOT - also no boost.
then I shift at 3rd gear , got WOT - also no boost (time to time, sometimes boost appears at 3rd)
at 4th boost appers (0.84-0.87)

2)If I run smoothly at 1st - there's no boost,
then shift at 2nd gear , run smoothly - I feel boost going up, push accel WOT - boost is good - 0.84-0.87 kgfc/mm2
3rd,4th,5th - boost is also good.


So the difference in this 2 cases that good boost gets earlier if I don't go WOT.

According to this - Troubleshooting - the problem is in TCA, or in the lines going to/from it.

In another topic (https://www.rx7club.com/3rd-generati...oblem-1036539/) said that member had mixed 2 lines.
I tryied to find CCV and CCA lines but my car is 99 and I have a black box in it.


So I don't know how can I check if my connection is right or not.

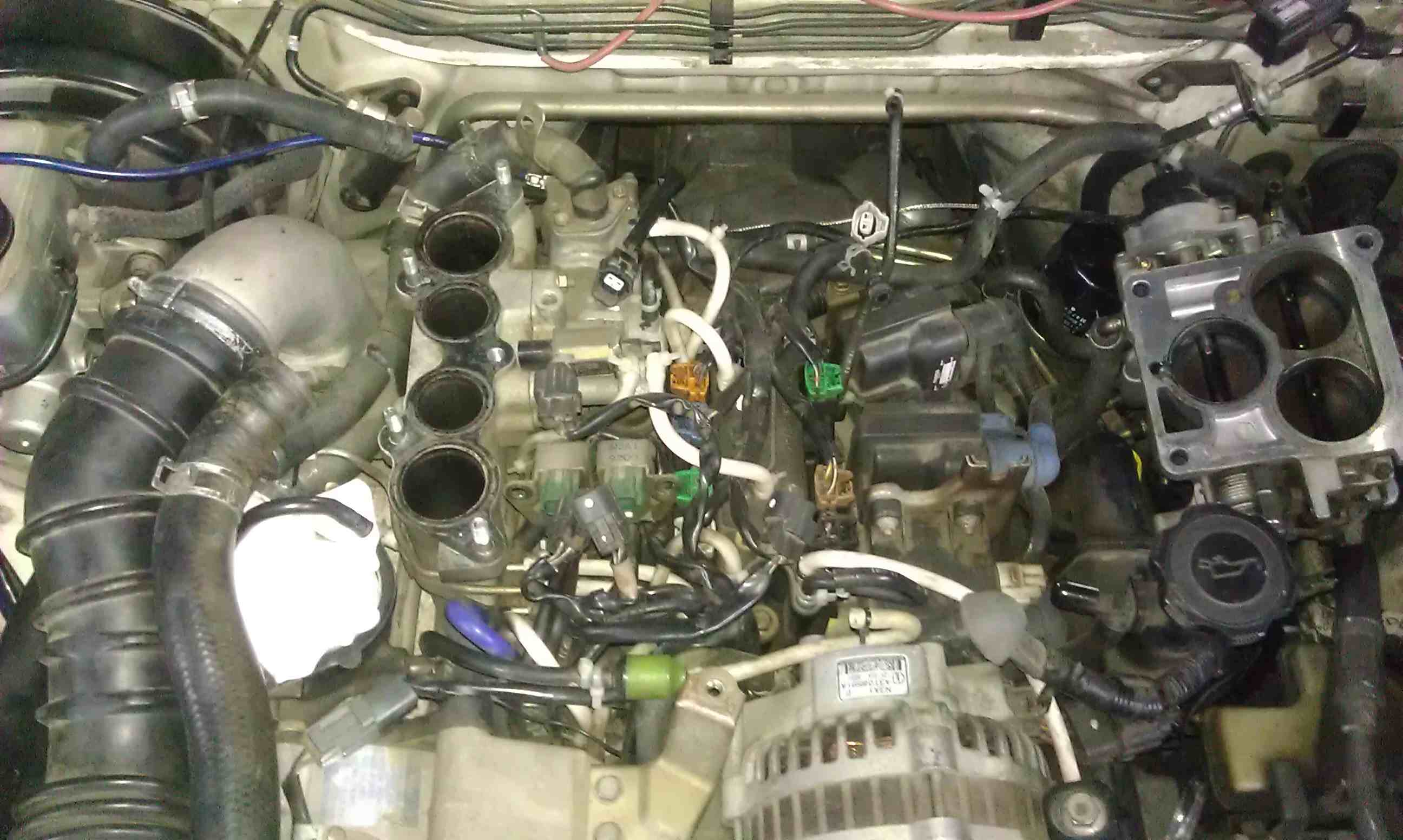

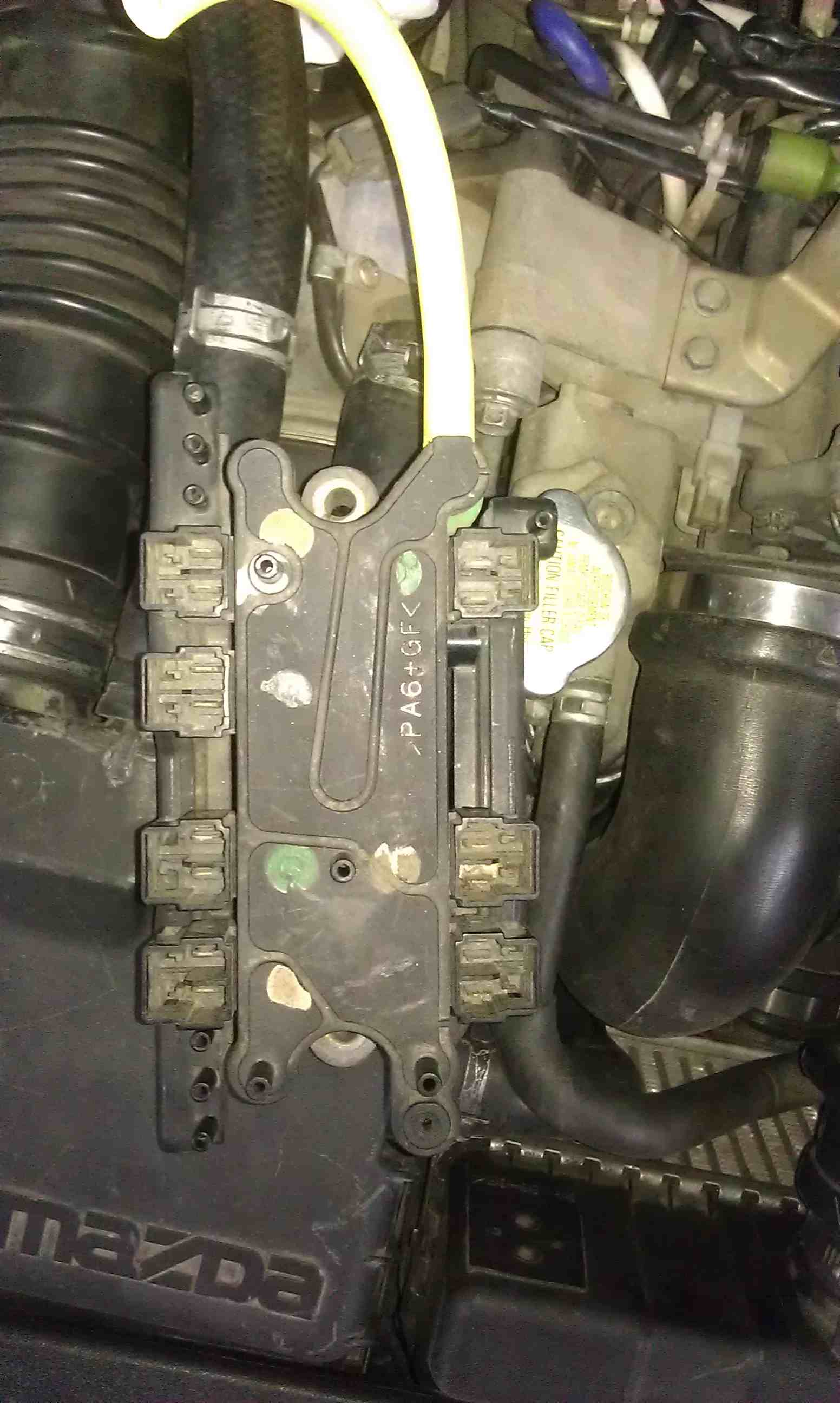

I made some pice without UIM and a pic with a broken black box.
Can anybody say how should it be connected ?

SonicRaT

iTrader: (6)

I had a problem like this once. It was because the C-clip fell off the wastegate arm, and the wastegate door was flapping in the wind. Something I often check when there's zero boost being made.

Rusty 13B

Check your wiring against this:

https://docs.google.com/file/d/0B7b2...it?usp=sharing

Rusty

1ga

iTrader: (9)

I've checked diagram and found that vacuums for Charge Relief solenoid were mixed.
Changed it, start the car, boost appears at first two gears for 4-5 times. Than run again - there's no boost at 1st and 2nd again. ((

Seems like I have broken CR solenoid, does anybody agree?

1ga

iTrader: (9)

Had 3 vac lines mixed.
Now it all ok, thanks
