rx slim

So I've finally got my UIM off and am about to do all new vacuum lines. . . noticed a few have already been removed for me and am not quite sure how I had good boost up until now, but what the heck. As I'm taking off my manifild I notice how I have a slew of electrical lines that are extremely brittle. Some of the plugs were slightly damaged in removal also. . . they will all still work, but I would like to replace them. So my question. . . is there an electrical overhaul kit out there to replace all of these plugs and wires? I'm sure somebody has put one together, but I've looked at pettit's site and they don't have one. Anybody done this before??

Mahjik

iTrader: (1)

Basically, there is one main wiring harness. Unless you really "need" one, I wouldn't worry about it. They are about $700 from Malloy Mazda and there is a lot of stuff that has to come off to replace the entire harness.

rx slim

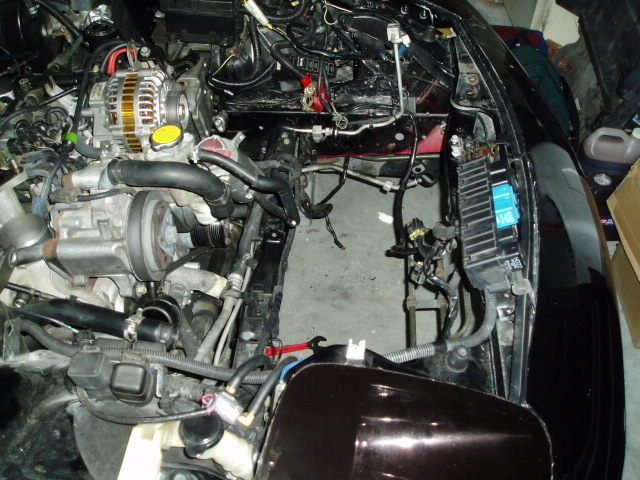

Like how much stuff? I've already got my radiator, intercooler, AC condenser, AC compresser, PS pump, battery, all intake piping, and UIM off. There's not much else to take off. . . if there's ever a time to do it it's now, because a lot of these wires don't seem to be in good shape. So there's one main harness, I really think I should do this. Anybody have any good input on doing the job? Or any other aftermarket harnesses available?

M104-AMG

iTrader: (8)

If you can afford it, and are willing to get into the rat's nest and the injectors then go for it. There is a HIGH probability that the OMP lines will break if stock and more than 50K miles on them, so plan accordingly.

Unfortunately, there is no aftermarket harness.

Good luck,
:-) neil

Mahjik

iTrader: (1)

Other than what you have out, you'll just need to pop the ECU out and then the alternator, vacuum chamber and that should give you access to get everything out and put a new wiring harness in.

rx slim

Well. . . looks like my project got a little bigger, but should be nice when it's finished!

rx slim

OMP lines?

Mahjik

iTrader: (1)

Those are the lines which deliver the oil from the Oil Metering Pump to the Oil Injection Nozzles on the housings. The stock lines are clear (or milky depending on how old the lines are) plastic lines which can get brittle over time.

dgeesaman

iTrader: (7)

When they get really old and brittle, they look like they're coffee stained. New OEM ones only run around $60 and they last for another 10 years. Very good thing to replace.

I agree with Mahjik as usual - replacing that wiring harness is a pretty big job, but if the old one is brittle and you intend to keep the car for a while it's money very well invested.

Also the FPD is a good idea, and so is getting the injectors serviced.

Dave

rx slim

I've got the car apart, and plan on keeping it for a while, and continuing to learn as much as I can. OMP lines sound like a good idea, I'll see about getting the injectors serviced, and what about the FPD. . . what am I looing at here?

quicksilver_rx7

You can also add a little more piece of mind and go with the braided stainless OMP lines from a vendor of your choice. I think they are about $40 more than the stock lines ($100), last time I checked. As for the wiring harness, most of the plugs are found on other Mazda automobiles and some Ford products. For example: The alternator plug on the RX-7 is the same as a late model 4-cylinder 626. Most of these can be looked up under the "Common Connector List" found at your local Mazda dealer. They don't list connectors for the RX-7, but they do show pictures of the connectors and a little research is definitely cheaper than a new wiring harness.

Joe

dgeesaman

iTrader: (7)

The FPD needs to be replaced about every 5 years. If it gets too old it can leak fuel and start engine fires.

Mostly you can tell by the little piece of rubber coming out the top. If it's old and brittle then you should probably change it. Run a search - there are loads of discussions about it. The only bummer is Mazda wants over $100 for one.

Dave

GoodfellaFD3S

iTrader: (213)

I definitely recommend replacing the entire engine wiring harness at one shot (malloy has them on special for $730 right now) rather than hacking it up and replacing connectors.

M104-AMG

iTrader: (8)

Dave is spot on.

Also, if you don't know if your car had the fuel-line and brake vaccuum recall/upgrade done to it, give Ray Crowe a call and he'll hook you up with the proper parts.

If you go with braided stainless-steel OMP lines, try and get ones with either a plastic sheath around them, OR make sure you don't have any moving/vibrating parts laying on explosed stainless-steel braid. It will eventually cut right through things . . .

:-) neil

rx slim

Can anybody link a nice set of OMP lines that they would go with? I appreciate all the help guys. I'm definitely going to go with the new harness instead of the connectors, because it's not just the connectors that have a few broken pieces. . . these wires are really brittle and exposed in quite a few areas. My battery was already running dead for no reason, probably because of some of these issues. Any aftermarked ideas for the FPD that can upgrade quality for about the same cost? I'm going to post some pics of my project this afternoon so everybody can check it out. . . I've been taking lots of pics as I go and have the FSM that has been like a Bible. Thanks again for everybody's help!

Mahjik

iTrader: (1)

OMP Lines:
http://www.gothamracing.com/catalog/...roducts_id=857

As for the FPD, unless you are going with a complete aftermarket fuel system just replace the stock one with another stock one. If its lasted this long, another stock one should last just as long.

rx slim

Just got home to check out some of these things on the car. The OMD lines look original, they're kinda brown and nasty lookin. . . ordered the stainless ones via the link. .. thanks. The FPD lines I'm not sure of, and after a few minutes of flipping through the FSM haven't found them yet. . . anybody have a good pic of them? Pettit did a lot of work to this car before I bought it, but didn't seem to replace some of the easy things.

I'm debating about the wiring now. After closer inspection the wires are pretty gummy, most of the brittleness seems to be in the sheaths. . . although some of the wires, like one to the airpump are just plain bad. . . don't know if I want to replace the bad ones, or all of them. Seems like a big job, but might not be as bad while I'm in there???

rx slim

Found the FPD, right up top there. . . rather than buy stock lines, can't I just go buy some fuel line and one-stop and cut it to fit?

quicksilver_rx7

You could, but it will be very hard to find metric lines at your local parts store and they will either be too loose or a bitch to install due to being a little too small.

As for the harness, it's not that bad of a job, once you get into it. If you plan on keeping the car for a long time, you could also wrap the harness before installation to slow down the cooking process.

Joe

dgeesaman

iTrader: (7)

I would only replace the fuel lines if
1) the recall hasn't been performed.
2) the existing lines are showing deterioration

Dave
