Well I think the reason i was having so many issues with this wire is that A. the wire adapter i have isn't the right one for my engine and B. the car might of been an auto prior, but i've got no way to tell right now.

If anyone out there knows of a good wiring diagram for the wiring harness from the engine and the wiring harness in the car, id appreciate it greatly. Probably one for both the automatic and manual might be helpful.

T.c.

ps.

Let me rephrase, it's not just for me to "Start" the car. If you look at your wiring harness that comes from your engine through the fire wall, there's a white male plug that's about two inches out from the firewall that's connected to the engine wiring harness. In order for me to even use/start/do anything to my car that plug HAS to be connected to something. My car's wiring harness has a completely different plug then the one that's on my wiring harness for my engine.

Now i need to find a good wiring diagram so i can see what wires do what and go where for this car so i can understand what im connecting to what, this is turning out to be a rather tedious and headache ridden issue.

T.c.

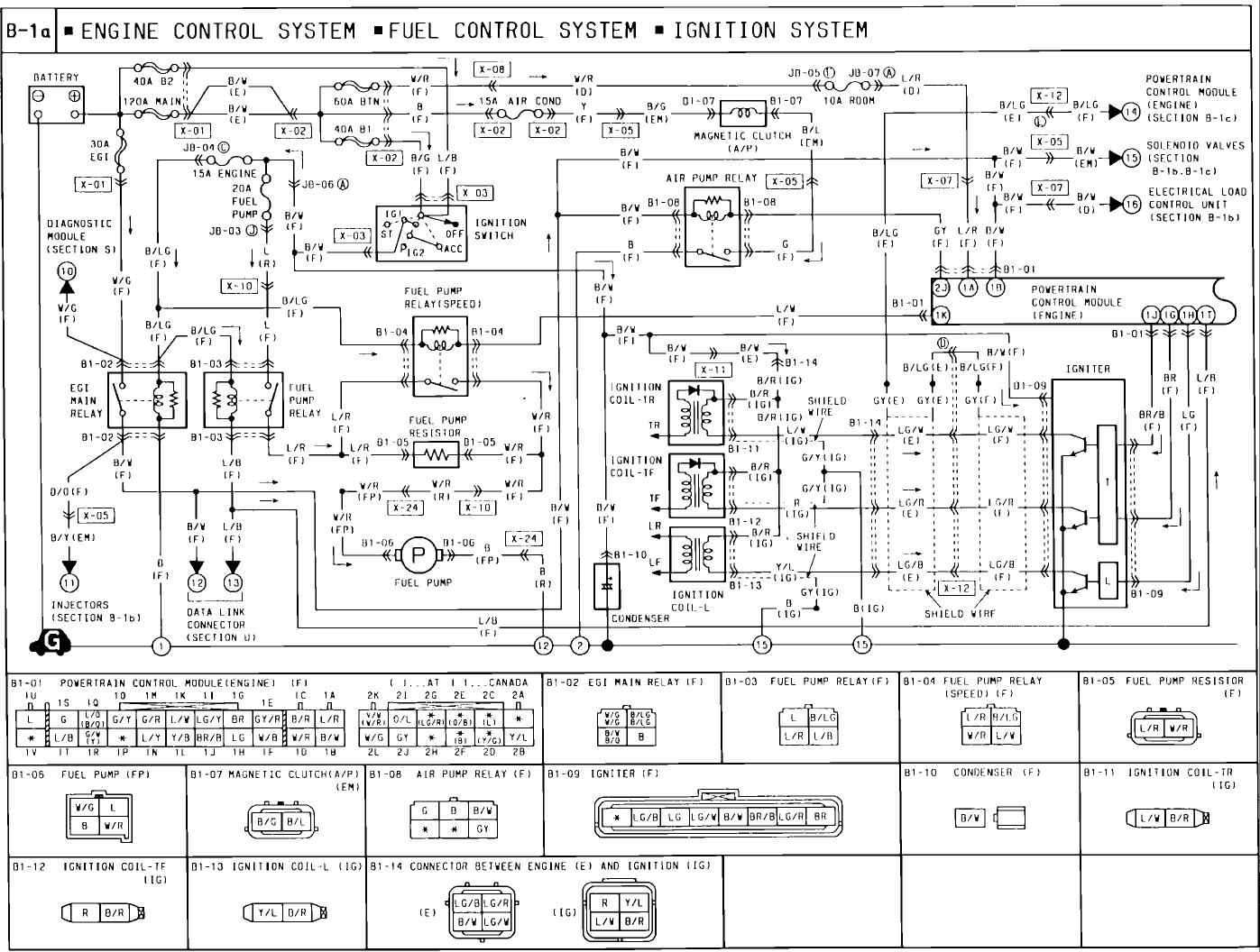

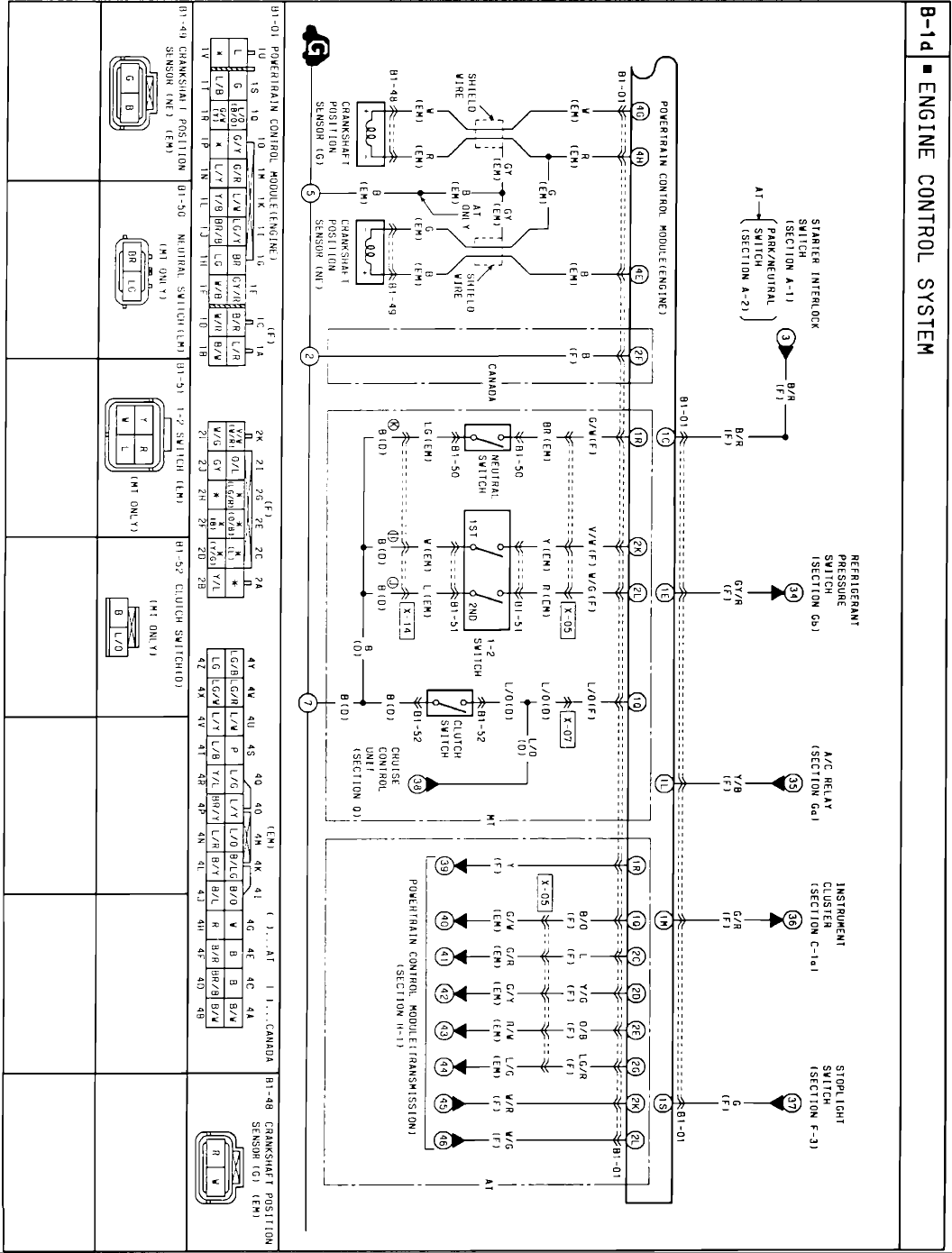

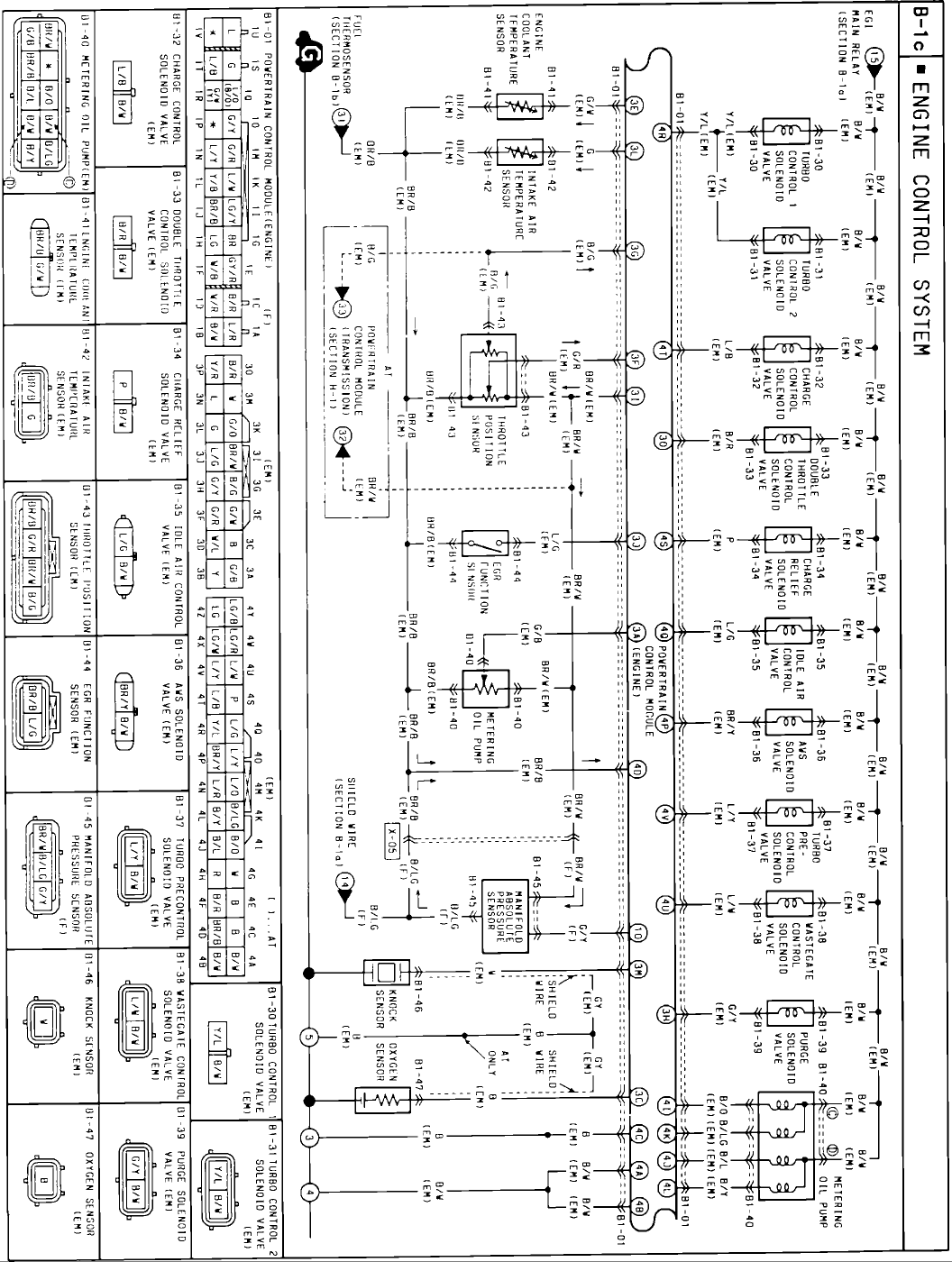

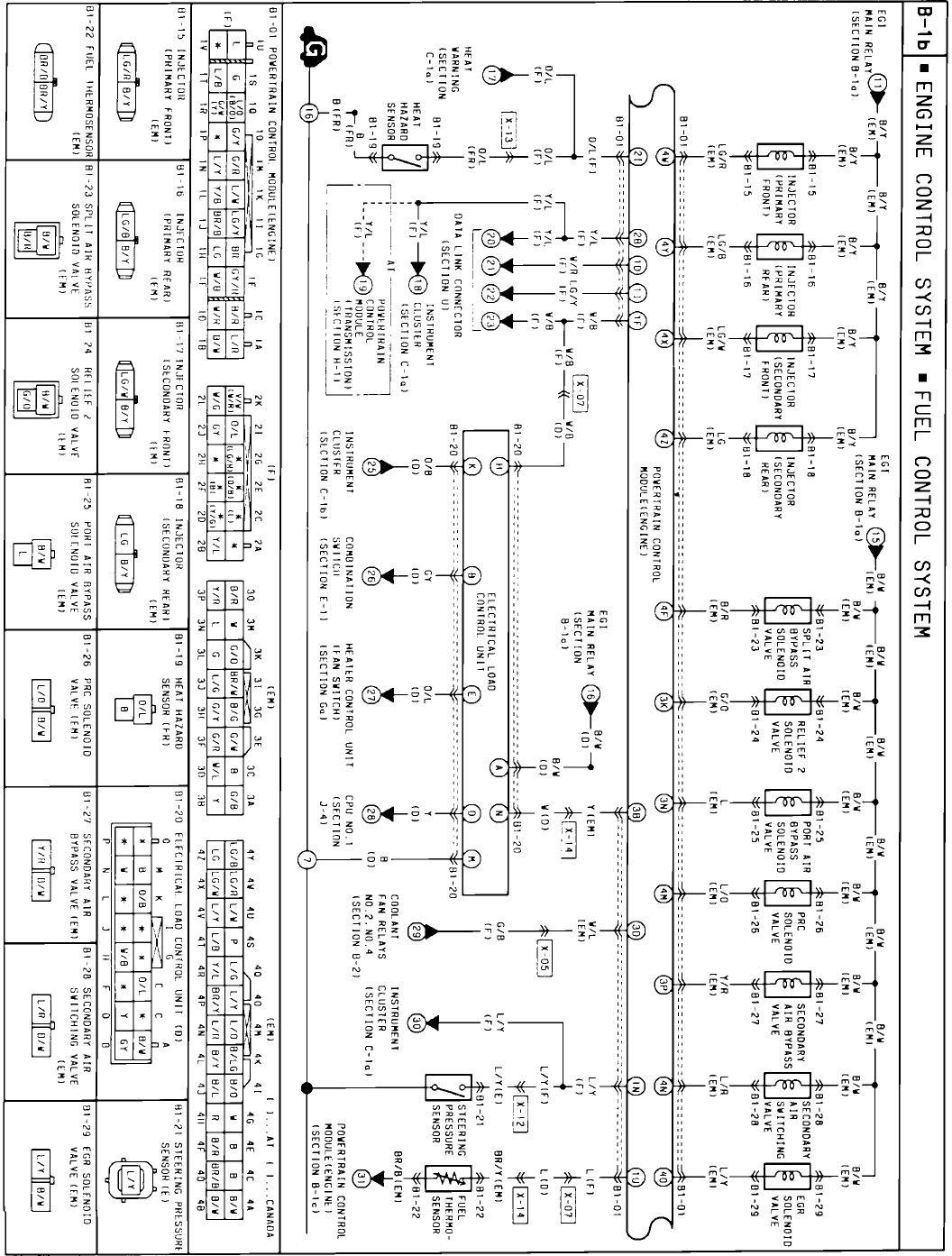

Let me know if these help or if you need others.



thanks im checking em out now



anyone have a visual layout of a diagram? i mean not breakdown of wires... just connectors.



Best wiring diagram I've found is in the FSM thread. Get the Wiring manual and the Body Electric manual.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/94-fsms-available-download-449950/

-s-



again i do not need the wires them selves i just need to install an new engine harness. im a single turbo guy so i have all of these new connectors that i have no idea what they are for so just looking for a simple route to put this all together again.

-Lance
