cutc0pypaste

hello guys

My beautiful fd has a cracked hose and I need to replace it. I have spent hours pouring though my shop manual and can't find anything except the two parts that the hose runs between. the Y shapped peice of the air pipe that and the air bypass valve. it's about 9" long and has a 90deg looking bend on the end.

I was trying to change my o2 sensor when I pulled the cracked hose off and it actually broke into two peices it was hardened form the heat. I guess I won't be going on that road trip this weekend.

I was just going to order it through the dealer but don't know where I can find a part number or name for it, and help would be appreciated.

GoodfellaFD3S

iTrader: (213)

is this a blow off valve/charge relief valve hose? sounds like it. a pic would help a bunch....i think i may have an extra one out in the garage somewhere.

rynberg

Are you talking about part# N3A1-13-765, on page 1-G4 of the parts manual? As Rich said, it's difficult to tell exactly what it is you're describing.

cutc0pypaste

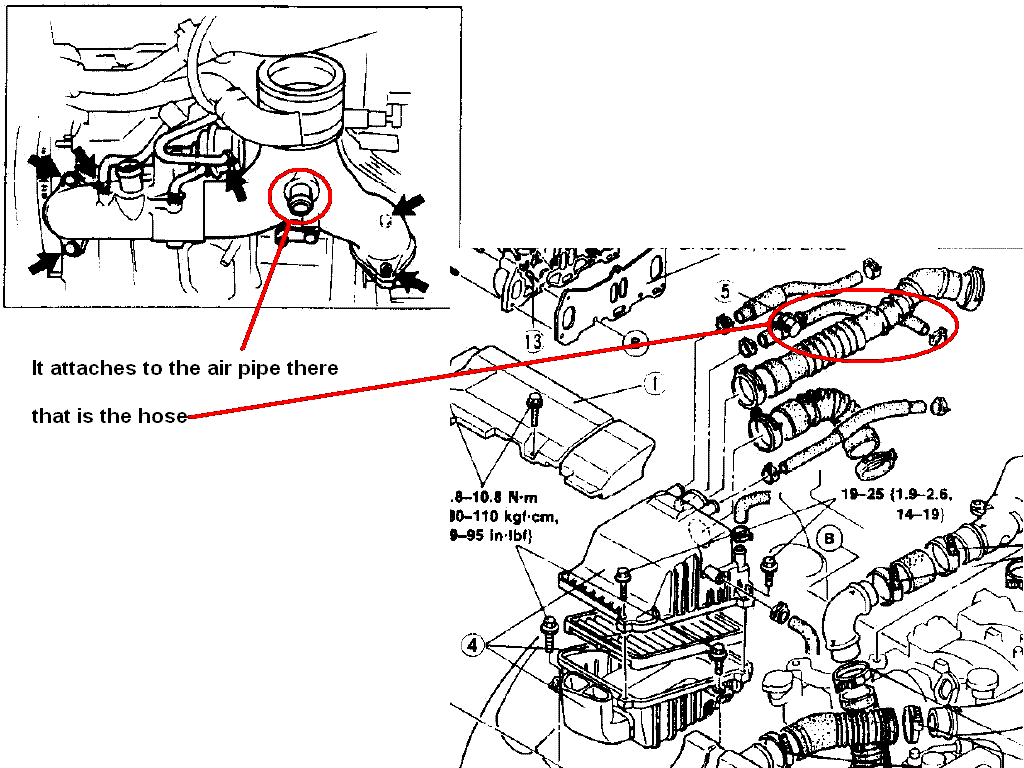

here it is

cutc0pypaste

close rynberg but that isn't it it's the other little hose coming out just forward of that one

Gadd

In a pinch you can get a pre-formed 90deg 3/4 id piece of heater hose from your local autoparts store.

cutc0pypaste

ahhh I think I found it on page 1-L4 of the parts N3A1-13-766. I was actually reading every file (pdf copy of the shop manual) but the parts one, that could be why I couldn't find any part numbers (-idiot-)

moconnor

iTrader: (14)

I ordered this from Ray recently (for $15 or so). It is N3A1-13-766.
