Need help routing ignition switch connectors
#1
Need help routing ignition switch connectors
Hello guys,

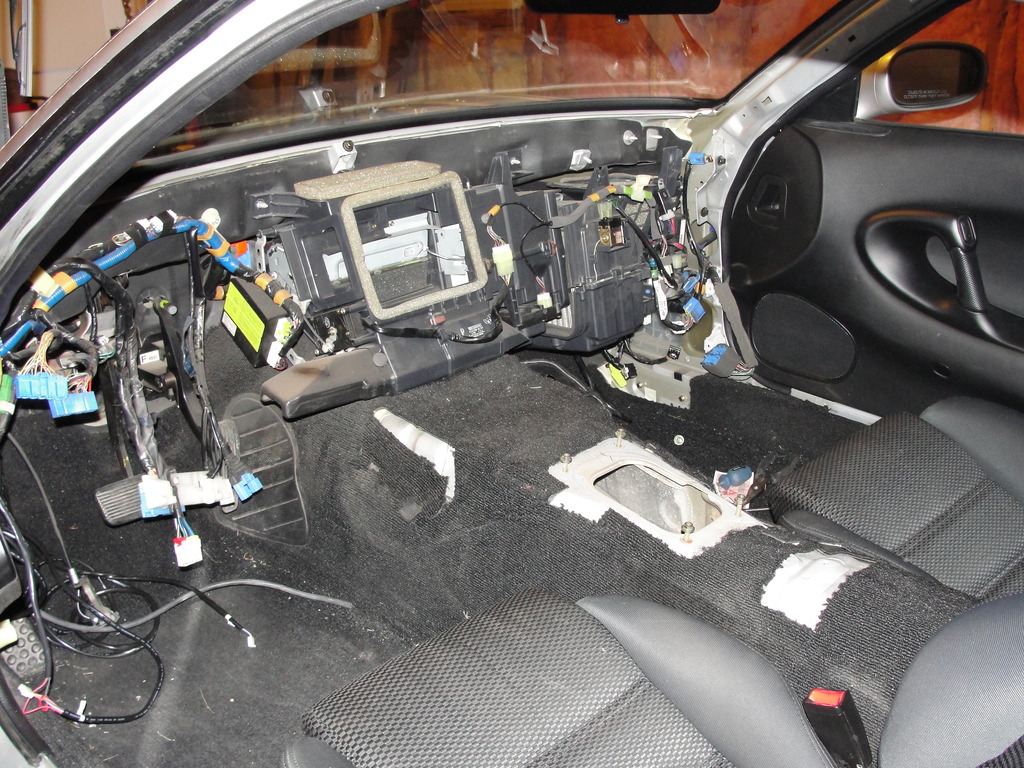

I'm reinstalling my front harness and I'm having trouble routing the two connectors (blue and white) near the ignition switch. (see 1st picture).

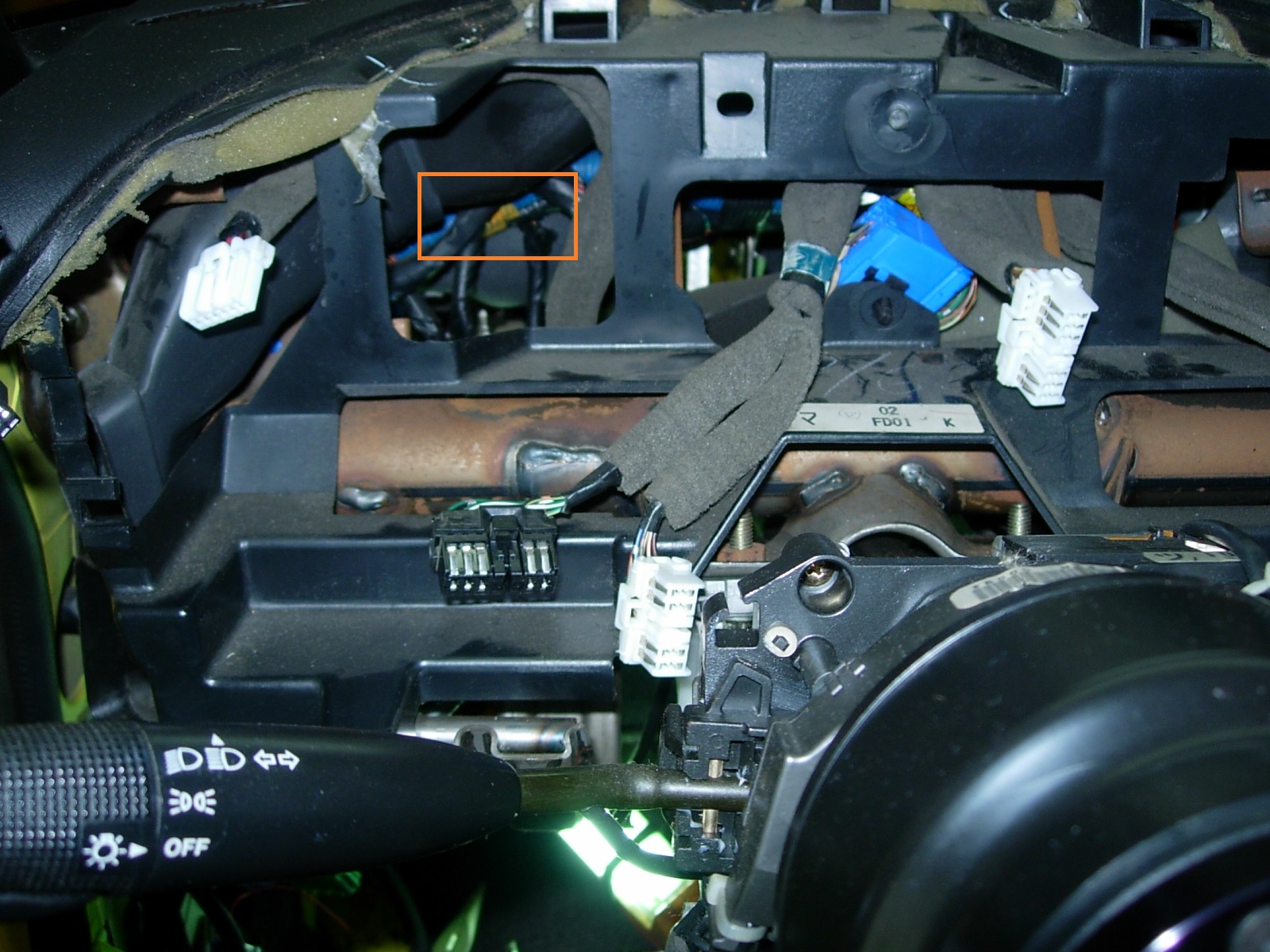

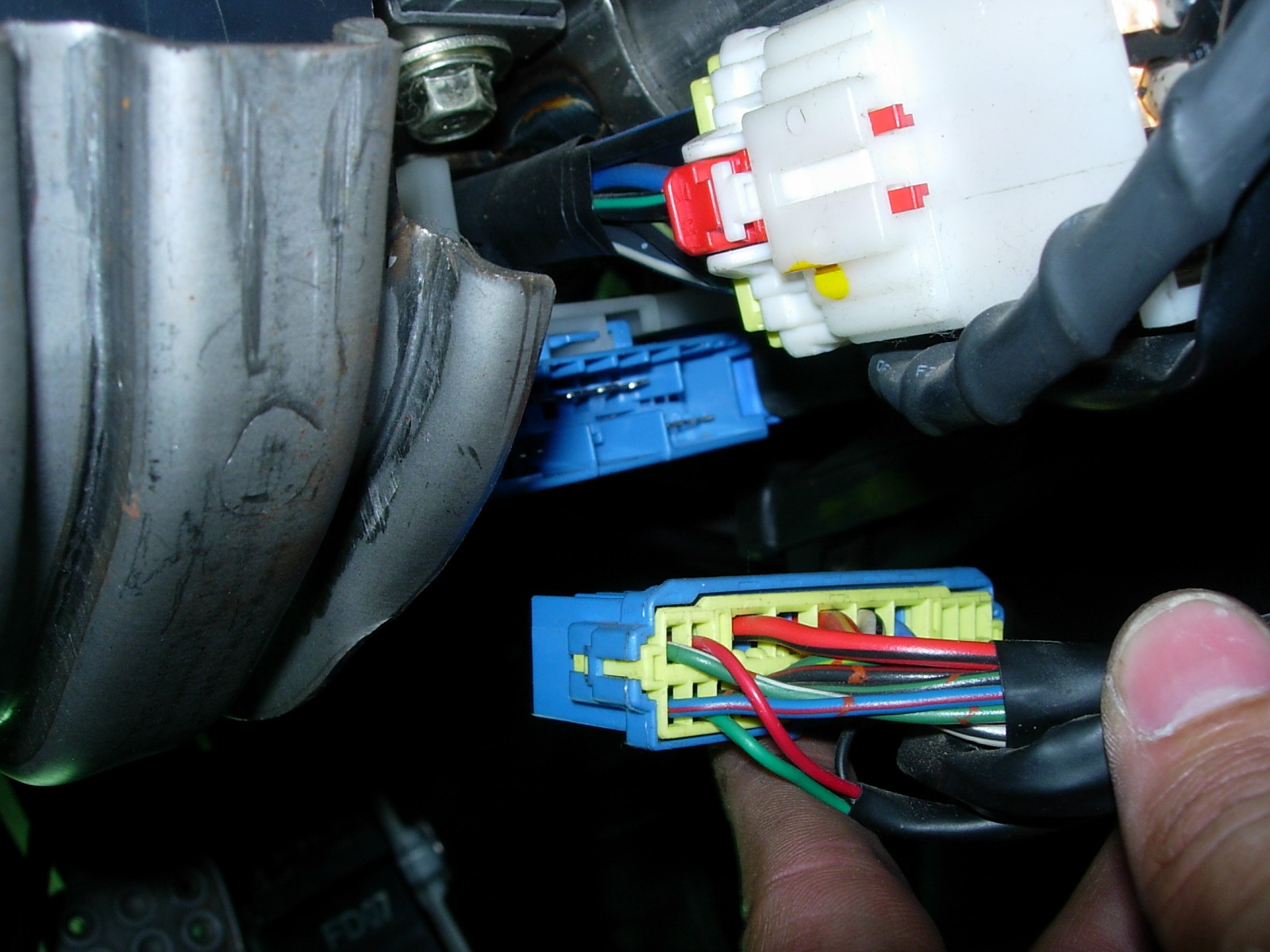

I want to route the harness as much as it was when I removed it. However I don't remember how it was installed. I think the harness was snapped in this bracket behind the cluster (see 2nd and 3rd pictures) but I can't figure out how to reach the other ends of the connectors.
Any help would be appreciated. Maybe someone has a picture of the oem routing of the front harness
Thanks.
I'm reinstalling my front harness and I'm having trouble routing the two connectors (blue and white) near the ignition switch. (see 1st picture).
I want to route the harness as much as it was when I removed it. However I don't remember how it was installed. I think the harness was snapped in this bracket behind the cluster (see 2nd and 3rd pictures) but I can't figure out how to reach the other ends of the connectors.
Any help would be appreciated. Maybe someone has a picture of the oem routing of the front harness
Thanks.
