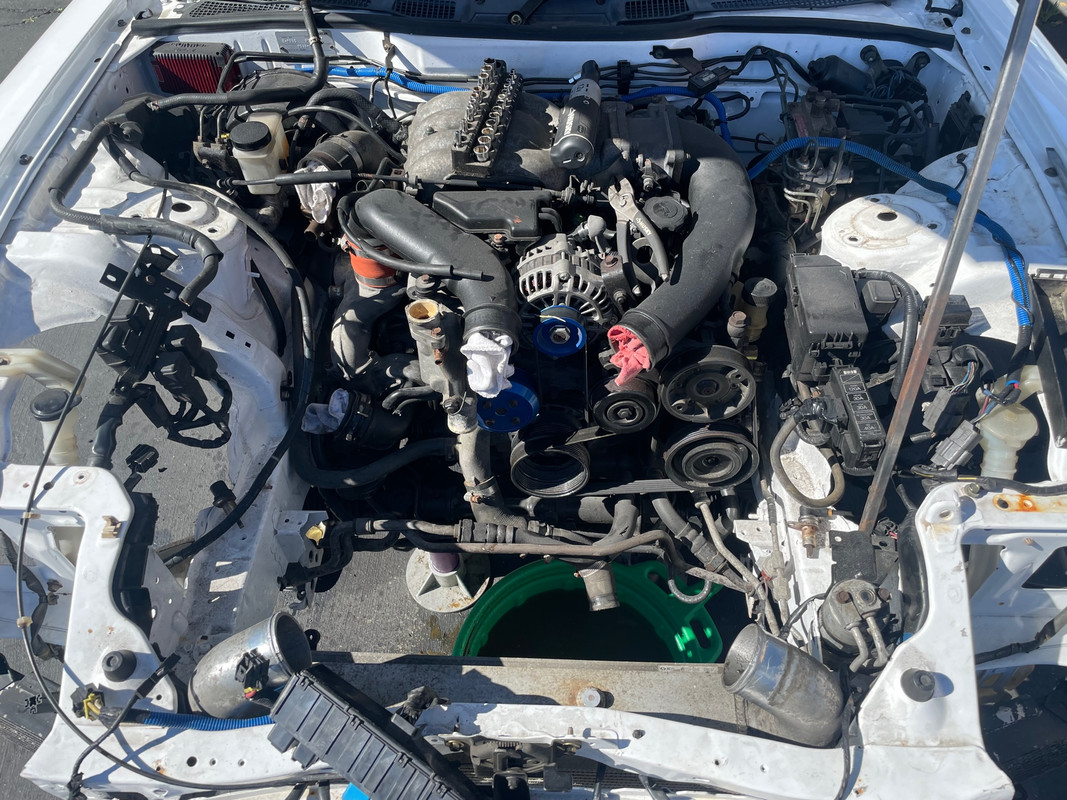

Bought a 193 RHD import project, radiator and blitz intercooler were rotten so I removed them and going to replace them with another Blitz intercooler and Mishimoto Radiator.

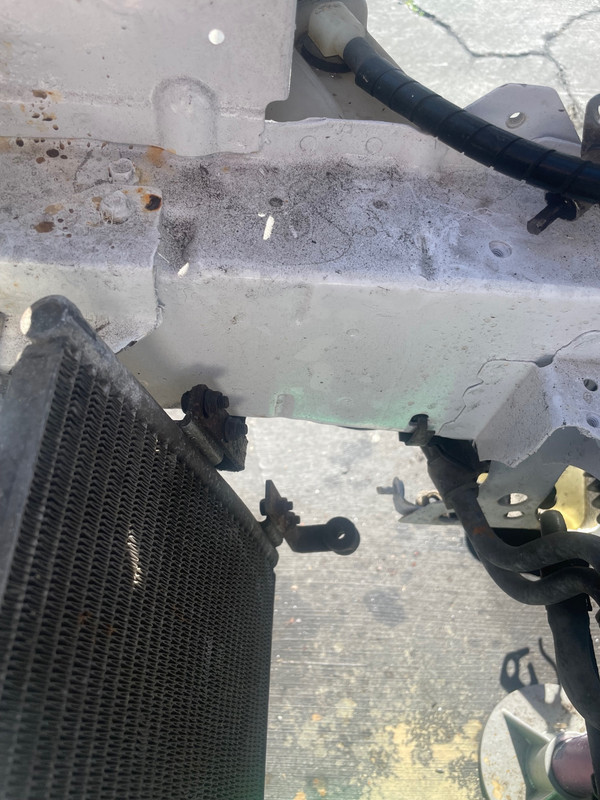

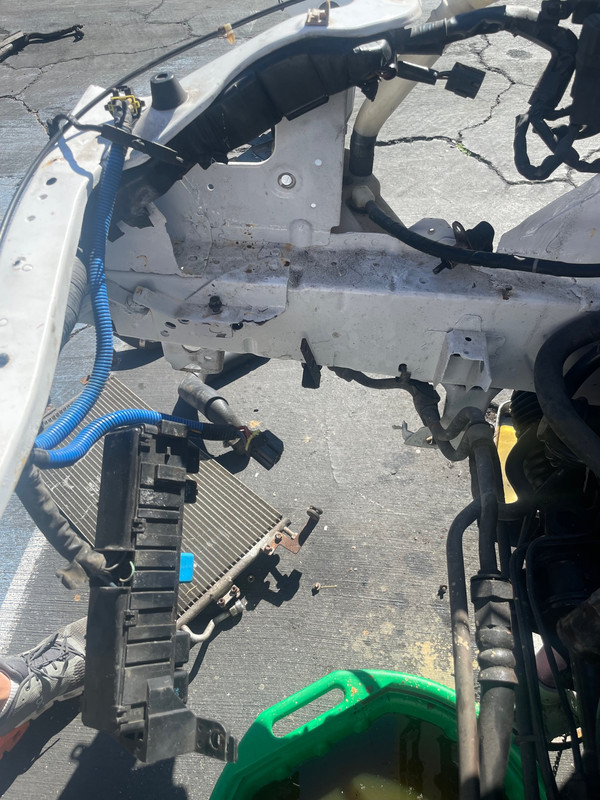

When I went to remove the radiator I realized there were no brackets, it was basically just hanging on the condenser bottom bracket.

Can someone show me where and how the radiator mounts go? And does anyone know where I can get these brackets?



Just search up for a Koyo radiator install and you will find a lot is useful information and pictures to help you piece it together.

also looks at the parts and FSM PDFs.



PM me your email address, I can send you the manual for the Blitz intercooler.

Did you get a new Blitz IC with all the brackets? Or used with brackets?

Dale

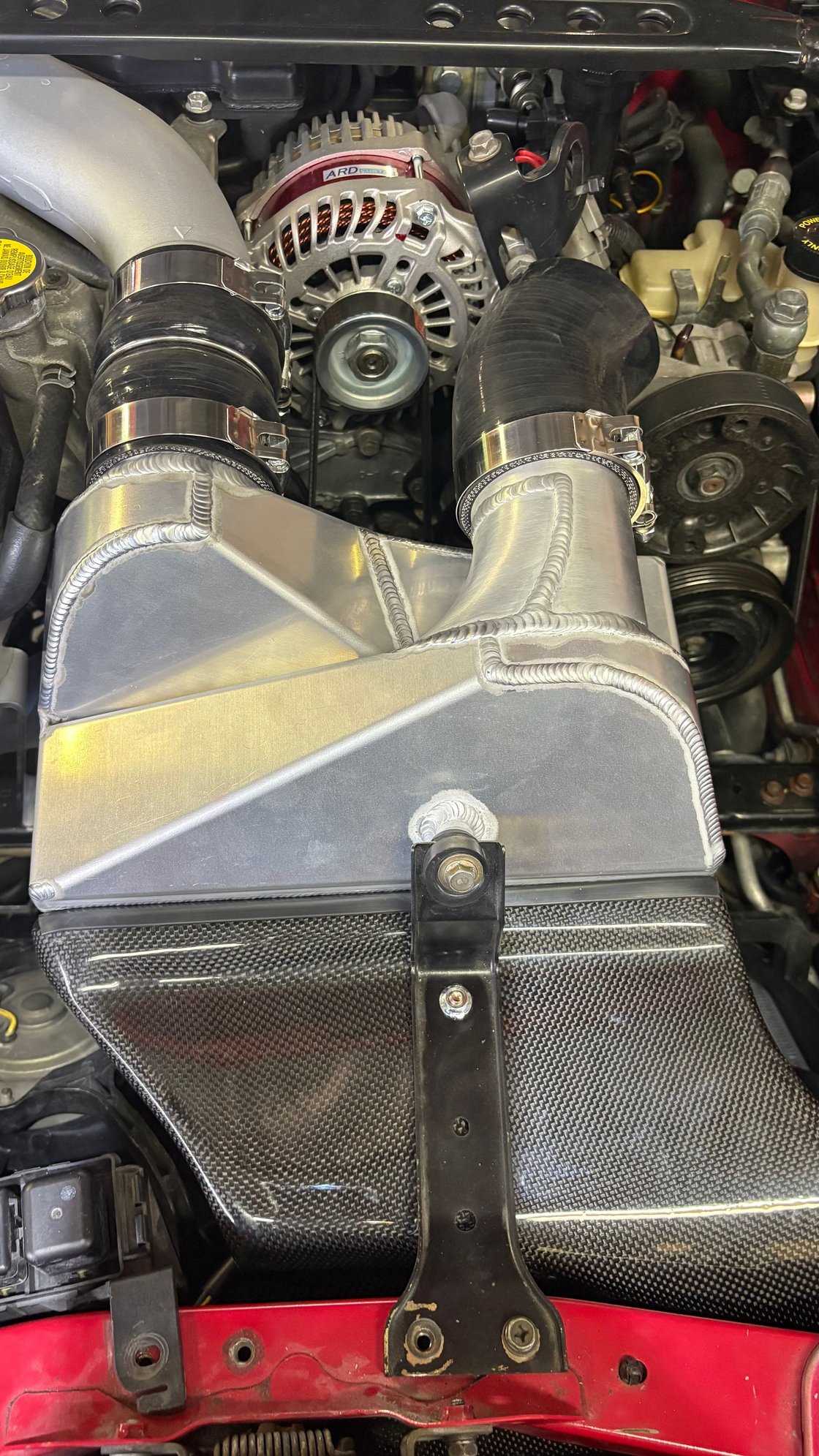

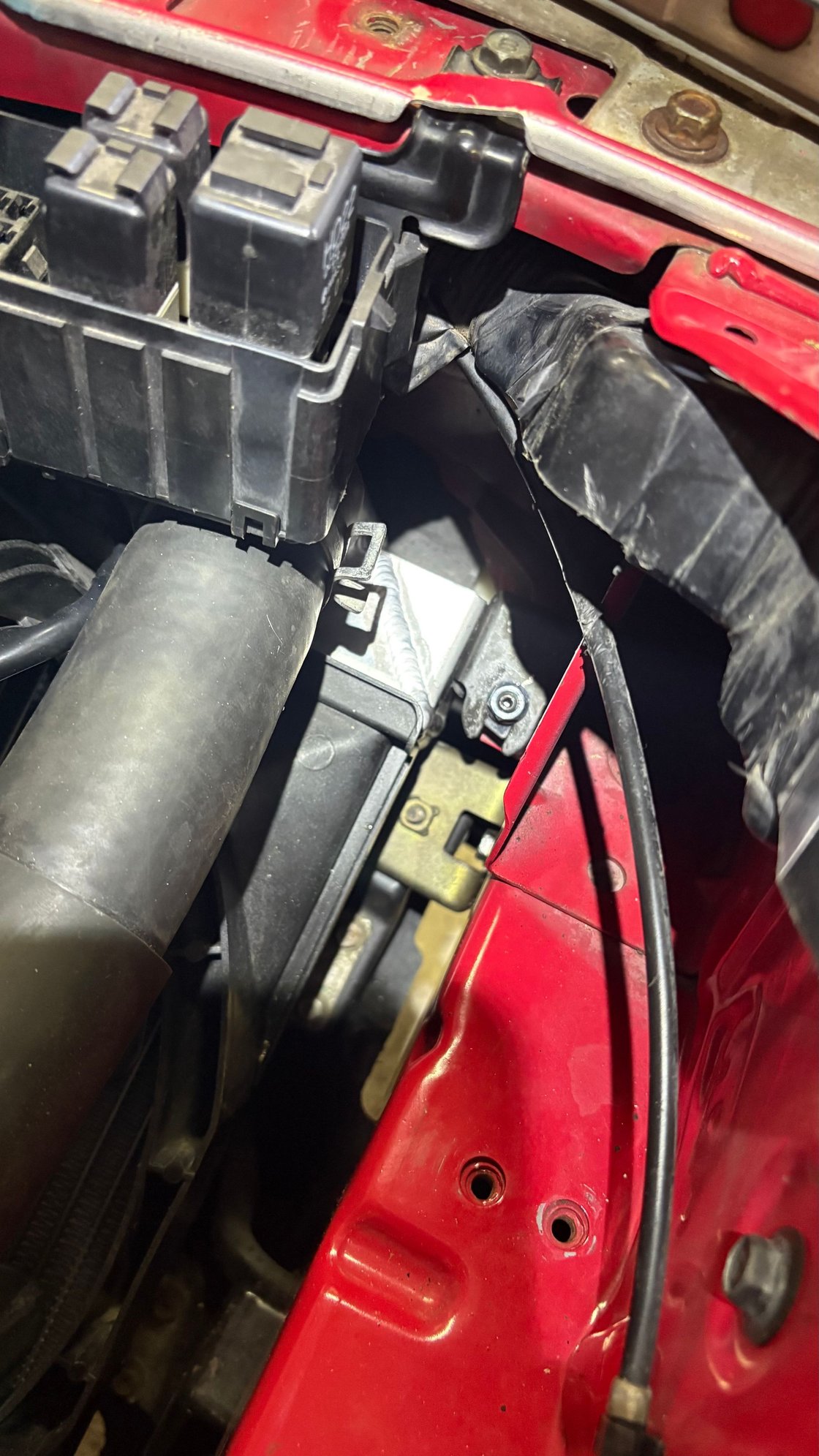

I went and saw Marcus and he told me that my radiator mounts were upside down. I didn’t know as they were in the same position that the Koyo radiator had them in previously so that’s been rectified and also fitted the rubber mounts now the radiator sits lower and it’s correct position. With that I’m now able to bolt the shroud to the bracket and everything fits a lot better now. Still not perfect and still a squeeze but better. The small duct is still a pain in the ***, though I will probably just wedge it in there and make my own fixings (Zip ties).

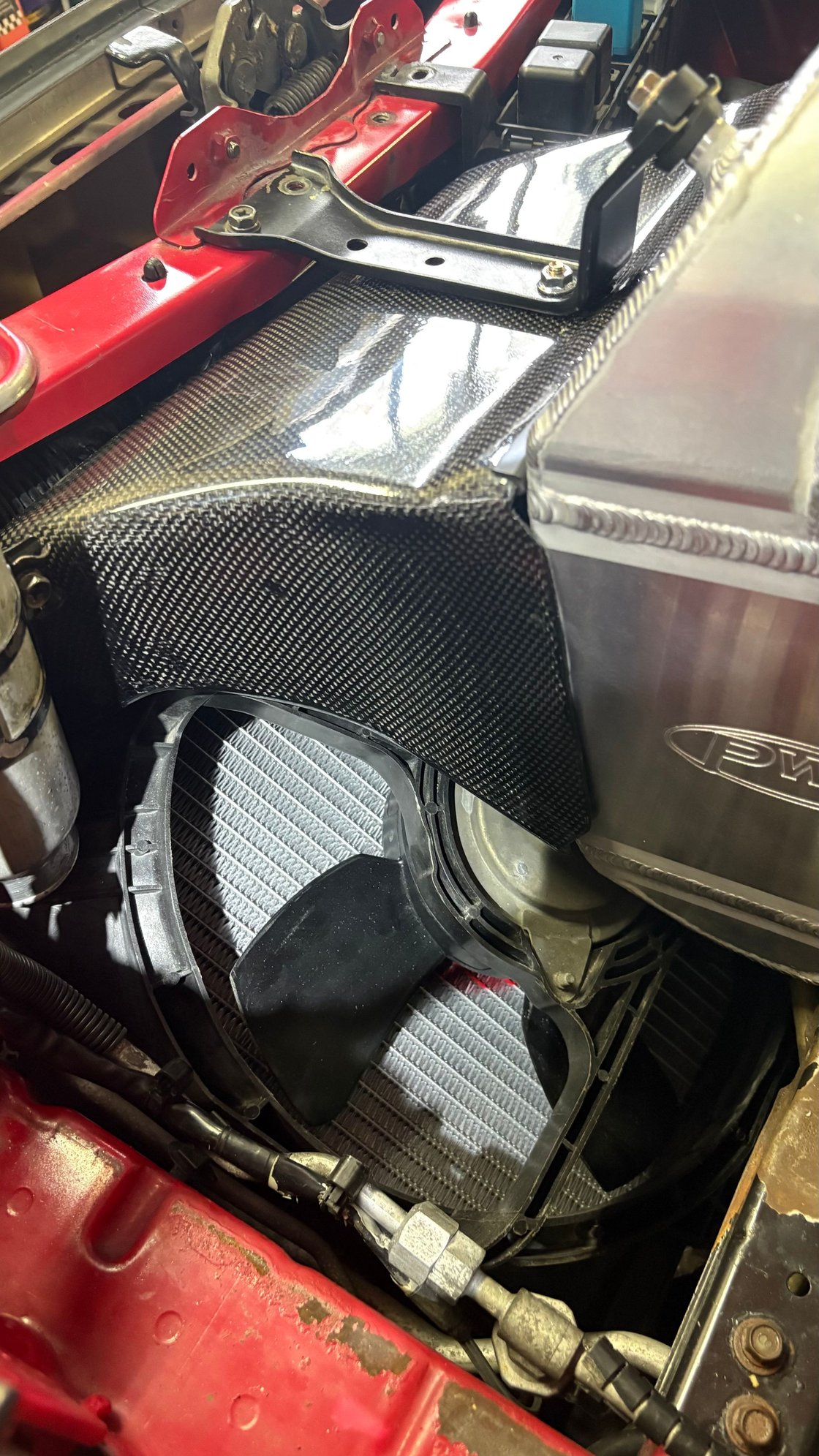

I also have way better clearance on the radiator fan shroud.
