Hi im starting to put everything Back in my 7 and I can't find pictures of where the abs and booster, so I know where whe abs and booster go but I need to know where everywhere else goes. I have a rhd clip but something are in the opposite side and I need to find out what goes where ? Thanks guys

Mahjik

iTrader: (1)

Have you tried using the FSM (Factory Service Manual)? It really should contain all the information you need.

Scrub

iTrader: (25)

You understood what he was saying? Kudos man.

Tem120

iTrader: (5)

There you go.



I didnt realize this picture was so fuzzy.. oh well you get hte gist of it

djseven

iTrader: (56)

Google images will give you thousands of pics.

edgars95rx7

iTrader: (5)

I have googled it and found no pics I will post a pic of what I am talking about. Tem120 thanks for the pic but I need a closer look so I know what goes in those area

Tem120

iTrader: (5)

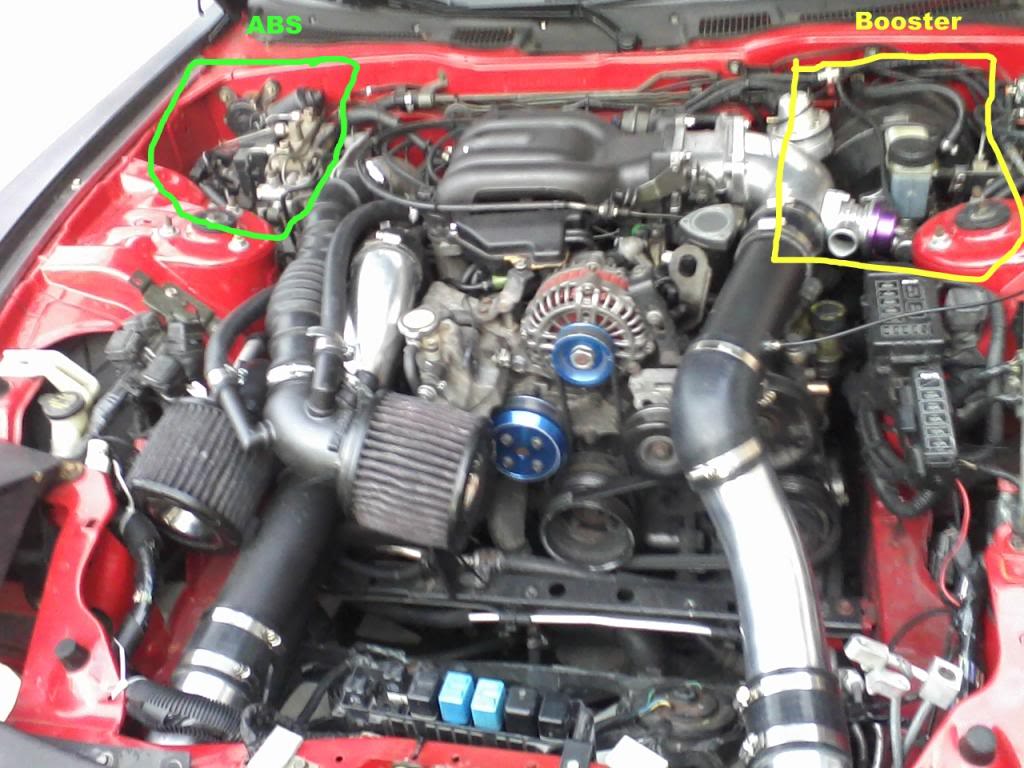

the ABS , that little corner belongs to it and it alone. behind it as yousee is the wiper motor which I strongly suggest you install BEFORE the ABS . and then the main harness goes behind it . which again it would be easier if the ABS is last .

on the driver side the Brake booster , has the clutch master to the right of it aswell as cruise control if your car has that . its very straight forward nothing magically complicated.

Mahjik

iTrader: (1)

That's actually why I suggested the FSM. It demonstrates removal and install as well as the locations.
