When I bought this car the ecu was sitting in the trunk. Should have been one of the first signs something was fishy . Last night I went to plug in my new PFC and lo-and-behold two of these plugs don't go together...

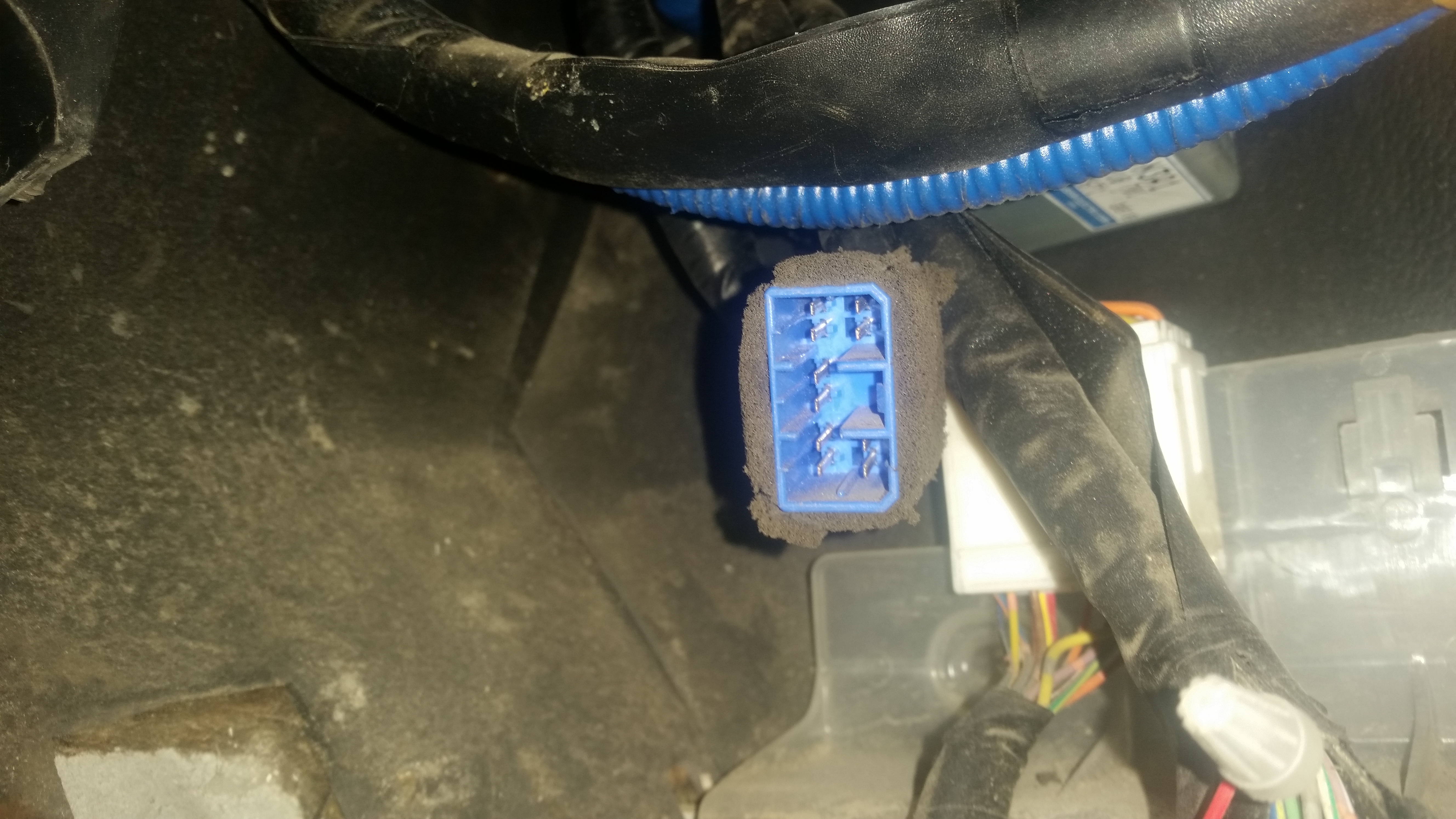

First is the blue connector on the emissions harness. Has 12 pins.


This is the dash harness blue connector. Has 10 pins.


Also don't have anywhere for this fan control module to connect with either.


I just want to be certain these are supposed to go together. If they are, I'll start looking for a single converted harness as I'm going non sequential.

Thanks,
Ian



You have a JDM emission harness with a 12 pin X-05. The USDM harness has a 10 pin X-05. It's easy to de-pin the 12 pin and re-pin the 10 pin. The fan ECU plugs in to the fan recall harness which taps in to X-05 and X-14. I'm waiting for UPS to deliver the X-05 connector that you need. Once I verify it is the correct one, I can send you one.
Dave



Crazy that it's a JDM harness when this car supposedly ran fine before it spit apex seals through the turbos. Don't see how that's possible when that plug doesn't connect, and it's used for the injectors?

PM me about the connector and how much you'd be looking to get.

Ian
