My built motor pics :)

Thread Tools

Search this Thread

Old 10-14-05, 10:48 PM
  #1
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
My built motor pics :)
Just thought I would post up some pics of my engine and car for everyone. The only pic anyone may have seen is my car in my avatar. Here goes nothing.

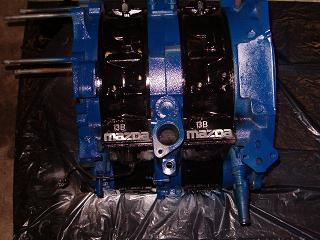

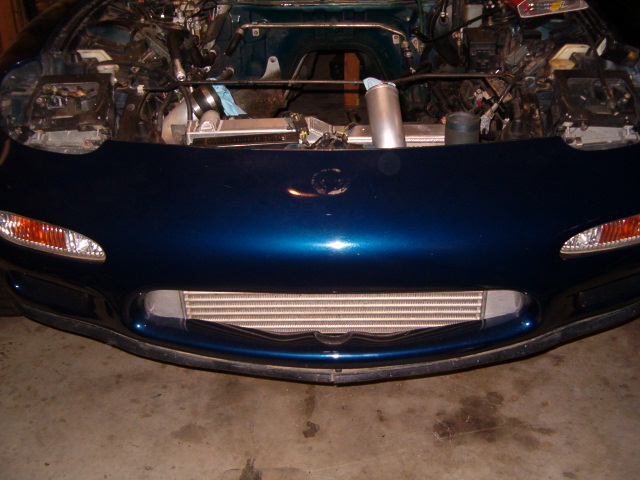

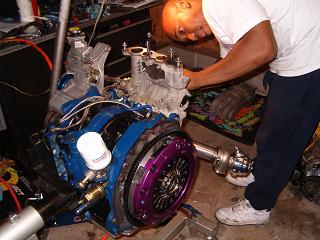

Attached Thumbnails My built motor pics :)-hpim0657.jpg   My built motor pics :)-hpim0684-2.jpg   My built motor pics :)-hpim0700-2.jpg
Last edited by mr2foryou; 10-14-05 at 10:54 PM.
mr2foryou is offline
Reply Like
Old 10-14-05, 10:57 PM
  #2
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
A few more pics:

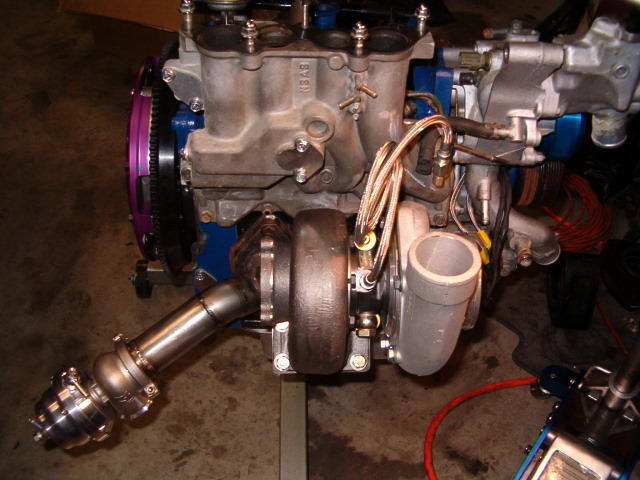

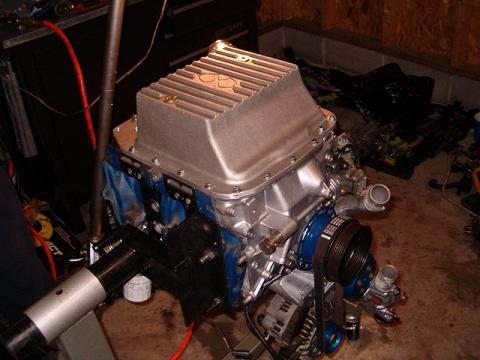

Attached Thumbnails My built motor pics :)-hpim0703.jpg   My built motor pics :)-hpim0706-2.jpg
Last edited by mr2foryou; 10-14-05 at 11:01 PM.
mr2foryou is offline
Reply Like
Old 10-14-05, 10:58 PM
  #3
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
Couple more:

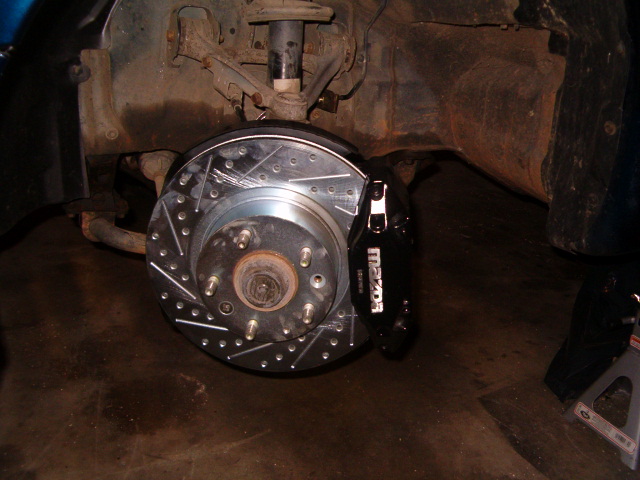

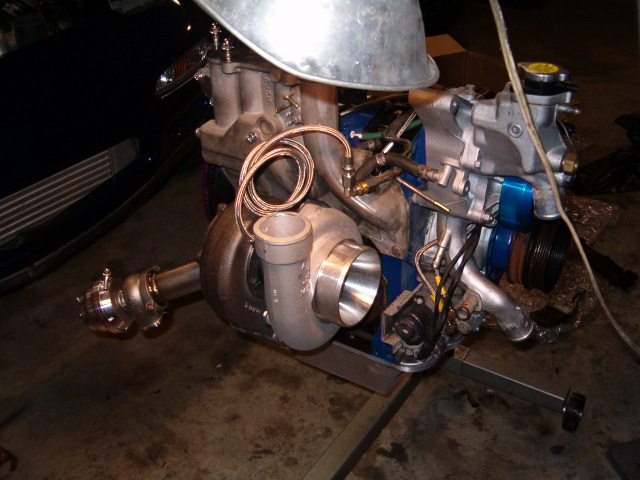

Attached Thumbnails My built motor pics :)-hpim0702.jpg   My built motor pics :)-hpim0644.jpg
Last edited by mr2foryou; 10-14-05 at 11:01 PM.
mr2foryou is offline
Reply Like
Old 10-14-05, 11:05 PM
  #4
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
Nevermind, I cannot get this last pic to work for some odd reason. Maybe later. Anyway, I should have the car back in my hands within a week or so to break in the motor. I'll be glad to let everyone know how it all goes. This is my first motor build. Thanks for looking.

Dee
Last edited by mr2foryou; 10-14-05 at 11:08 PM.
mr2foryou is offline
Reply Like
Old 10-14-05, 11:06 PM
  #5
Rotary Freak

iTrader: (2)

iceman4357's Avatar

Join Date: Jan 2004
Location: St.Louis
Posts: 1,879
Received 129 Likes on 73 Posts
Whats the really long oil feed line for??
iceman4357 is offline
Reply Like
Old 10-14-05, 11:09 PM
  #6
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
Someone "ahem" Jason "ahem" sent me that long line. I don't know why. I will probably get something different.
mr2foryou is offline
Reply Like
Old 10-14-05, 11:49 PM
  #7
Rotary Freak

iTrader: (27)

1revn3rdgen's Avatar

Join Date: Oct 2003
Location: Los Angeles
Posts: 2,964
Likes: 0
Received 0 Likes on 0 Posts
You should just get the fitting and put it on the block.
1revn3rdgen is offline
Reply Like

Trending Topics

Old 10-14-05, 11:54 PM
  #8
Rotary Freak

iTrader: (12)

ALNY93R1's Avatar

Join Date: Mar 2002
Location: New York
Posts: 1,796
Received 1 Like on 1 Post
Looks good, I'll be getting my motor back in about a week. I have the same setup as you.
ALNY93R1 is offline
Reply Like
Old 10-15-05, 07:29 AM
  #9
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
Mods are in my sig. I used 2mm Atkins seals master rebuild kit. I also decided to go with their solid corner seals and thermal pellet for the eccentric shaft.

Dee
Last edited by mr2foryou; 10-15-05 at 07:32 AM.
mr2foryou is offline
Reply Like
Old 10-15-05, 07:51 AM
  #10
Stay tuned...

iTrader: (3)

AnthonyNYC's Avatar

Join Date: Jul 1997
Location: West Islip, Long Island NY
Posts: 2,917
Likes: 0
Received 1 Like on 1 Post
Originally Posted by mr2foryou
Mods are in my sig. I used 2mm Atkins seals master rebuild kit. I also decided to go with their solid corner seals and thermal pellet for the eccentric shaft.

Dee
Looks nice!

Did you do the motor yourself?

What made you go with the Atkins 2mm rather than stock?

What kind of clutch setup is that?

Nice work.

Anthony
AnthonyNYC is offline
Reply Like
Old 10-15-05, 08:23 AM
  #11
Constant threat


bajaman's Avatar

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,952
Received 35 Likes on 31 Posts
Lookin' good!
bajaman is offline
Reply Like
Old 10-15-05, 09:19 AM
  #12
The one
iTrader: (5)

Jason's Avatar

Join Date: Jul 2001
Location: Fort Worth, TX
Posts: 3,862
Likes: 0
Received 4 Likes on 4 Posts
Pics look great.

Damn that oil feed is long. I can send you the fitting so you can run it to the block or I can send you a shorter one. I didnt realize it was that long.

Jason
Jason is offline
Reply Like
Old 10-15-05, 09:41 AM
  #13
No more G6

iTrader: (19)

Force13B's Avatar

Join Date: May 2005
Location: Nipomo, California
Posts: 1,935
Likes: 0
Received 1 Like on 1 Post
Looks like an Exedy clutch? Looks great, i love the blue on black.
Force13B is offline
Reply Like
Old 10-15-05, 09:58 AM
  #14
3rd motors a charm I hope


fastcarfreak's Avatar

Join Date: Apr 2003
Location: Central New York
Posts: 2,054
Likes: 0
Received 0 Likes on 0 Posts
very nice!!!
fastcarfreak is offline
Reply Like
Old 10-15-05, 10:17 AM
  #15
silver ghost

iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,061
Likes: 0
Received 5 Likes on 5 Posts
sweet.. like the oil pan too....
G's 3rd Gen is offline
Reply Like
Old 10-15-05, 10:28 AM
  #16
Rotary Freak

iTrader: (12)

moehler's Avatar

Join Date: Mar 2003
Location: South Jersey
Posts: 2,319
Received 32 Likes on 27 Posts
lookin good!
moehler is offline
Reply Like
Old 10-15-05, 10:54 AM
  #17
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
AnthonyNYC: My friend Phil built the motor. I have heard lots of good things about the Atkins seals, so I chose them. The clutch setup is an Exedy Twin Plate. Thanks

bajaman: thanks

Jason: I will talk to Phil and see what he wants to do and I'll let you know. Thanks

Force13B: You're right, it is an Exedy clutch (twin plate). And thanks.

fastcarfreak: Thanks

G's 3rd Gen: Thanks, the oil pan is one of my favorite pieces as well.

moehler: Thank you
mr2foryou is offline
Reply Like
Old 10-15-05, 07:02 PM
  #18
0-rotor-0-turbo-0-fd


TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes on 0 Posts
Motor looks great, hope it runs as you want it to.
Interesting looking oil pan, who makes it?
TwinTurbo93 is offline
Reply Like
Old 10-15-05, 11:02 PM
  #19
Full Member


Turborx7s's Avatar

Join Date: Dec 2004
Location: Pittsburgh
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by mr2foryou
A few more pics:


Where did you grab the oil pan? Is that a Moroso?
Turborx7s is offline
Reply Like
Old 10-16-05, 10:19 AM
  #20
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
TwinTurbo93: Thanks. The oil pan is an Xcessive Motorsports (Ground Zero).

Turborx7s: I bought the oil pan from A-spec Tuning. No it is not the Moroso pan. It's Xcessive Motorsports (Ground Zero).
mr2foryou is offline
Reply Like
Old 10-17-05, 09:45 PM
  #21
600+rwhp club member

Thread Starter

mr2foryou's Avatar

Join Date: Nov 2004
Location: Macclesfield, NC
Posts: 1,270
Likes: 0
Received 0 Likes on 0 Posts
Thank you everyone for taking the time to look at my pics. I'll let you know how it turns out running and the power it makes.

Dee
mr2foryou is offline
