Bryce_H

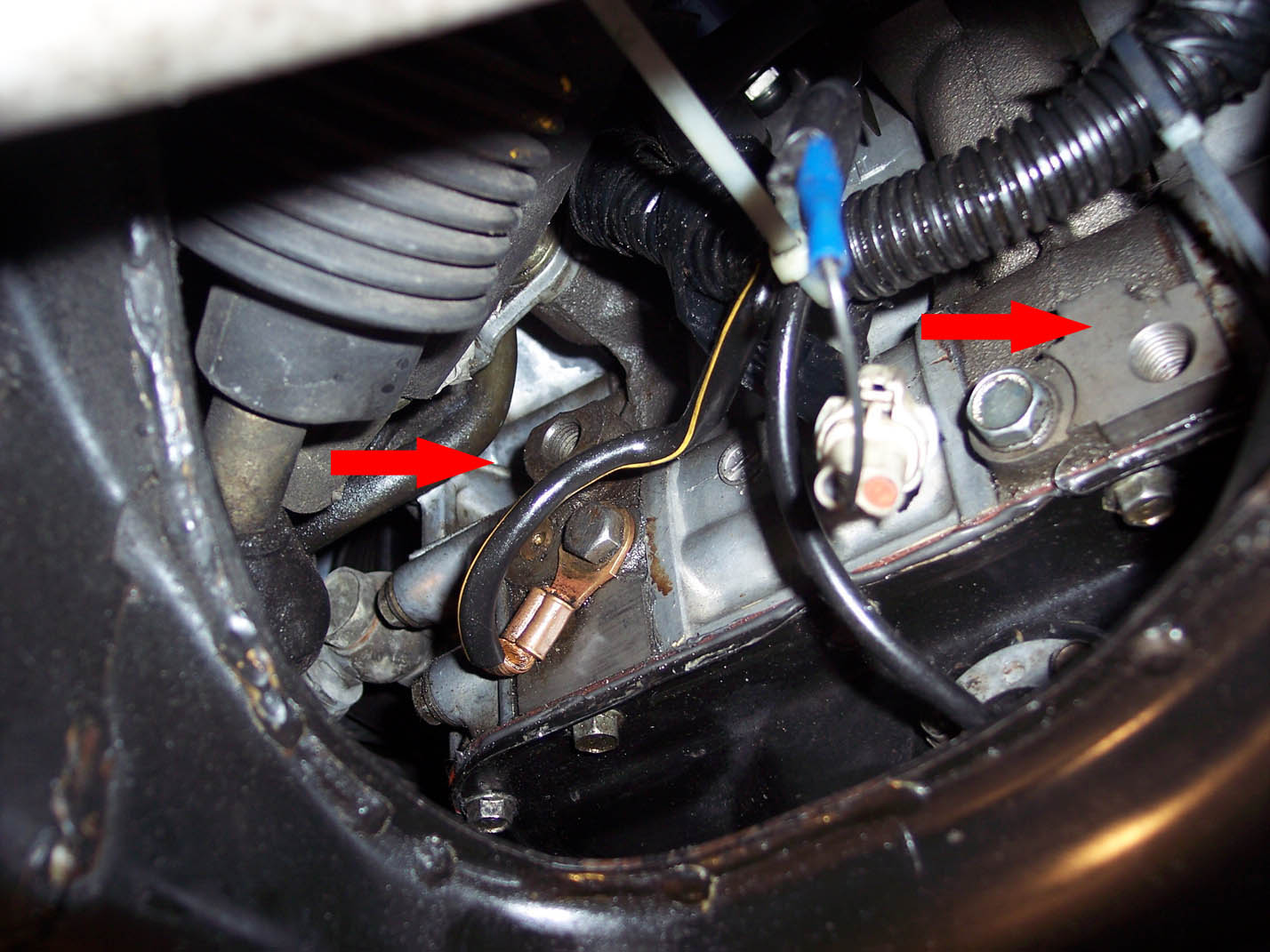

Ok, So I noticed a few holes that I think should have plugs in them, as i removed the bolt on the left of the open hole on the right side of this picture an it leaked coolant. Nothing seems to be coming from either open hole but if they should be capped off I'd like to know. If so what size is the plug? I tried a couple I had (5/16, ?)and they were just a little big. Oh and if you could'nt tell from the pic this is in between and under the spark plugs. Thanks,

puma

iTrader: (2)

nan leave these like that, it is normal

are you missing the bracket for the AC and PS?

Sgtblue

iTrader: (16)

The reason coolant leaked from the plug you removed is because it's the drain plug for the block.
Nothing is typically in those other holes on an FD.

Bryce_H

Right on, Thanks for the info. I won't worry about it then.
