Mazda gurus - what are these sensors? (pics attached)
08-03-11, 10:29 PM
#6
Original Gangster/Rotary!
iTrader: (213)

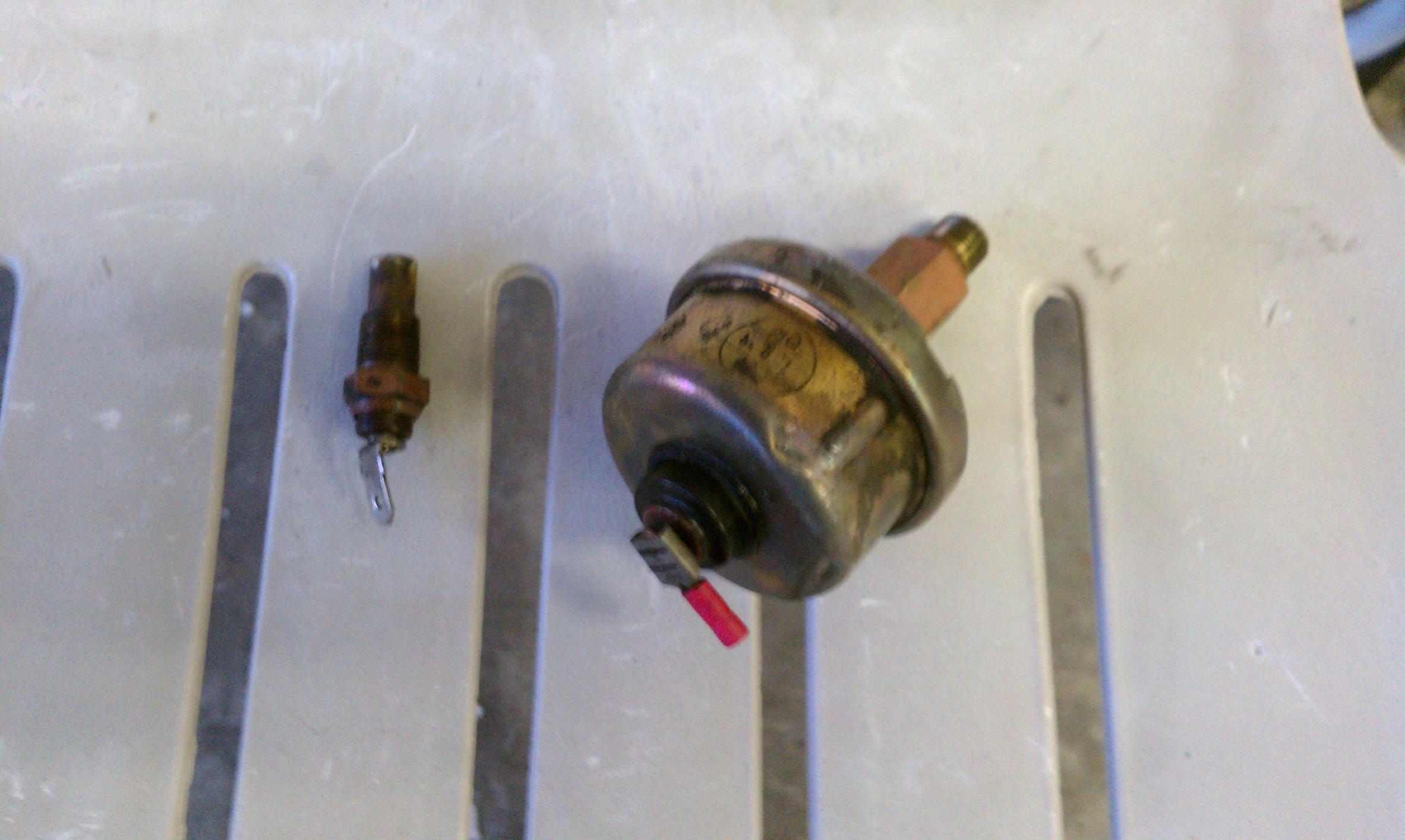

In picture one, that is not an FD oil pressure sending unit. Both screw into the driver's side of the rear engine iron.
The blue AIT sensor seals with a copper crush washer.
The blue AIT sensor seals with a copper crush washer.
08-04-11, 08:33 PM
#7
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Blue sensor is not an FD air intake sensor but may be a water thermo sensor from another make or model that will work at different temp. Sensor on the air intake is narrow and the stick is a non metal black material.
Goodfella is right that's not a stock oil pressure sensor but it may work.
Goodfella is right that's not a stock oil pressure sensor but it may work.
Trending Topics
08-04-11, 08:39 PM
#8
RX-7 Bad Ass
iTrader: (55)
The oil pressure sensor is from an FC, the water temp sensor with it is very likely an '89-91 FC part.

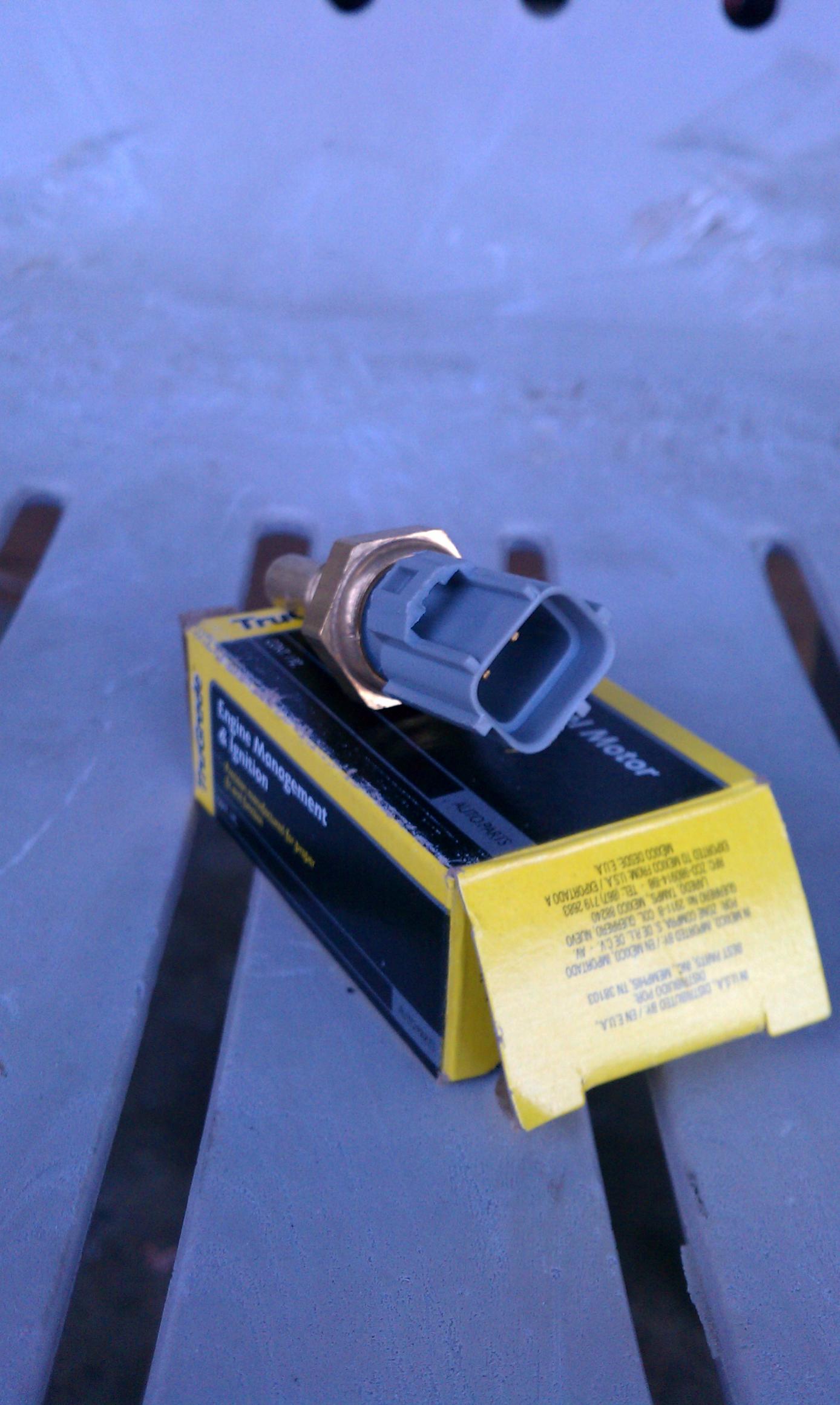

Hard to say on that air intake temp sensor, that's a weird angle the pic is at.
Dale
Hard to say on that air intake temp sensor, that's a weird angle the pic is at.
Dale
08-04-11, 08:48 PM
#9
Rotary Enthusiast
iTrader: (2)
Join Date: Apr 2007
Location: Miami, FL
Posts: 805
Likes: 0
Received 0 Likes
on
0 Posts
Blue sensor is not an FD air intake sensor but may be a water thermo sensor from another make or model that will work at different temp. Sensor on the air intake is narrow and the stick is a non metal black material.
Goodfella is right that's not a stock oil pressure sensor but it may work.
Goodfella is right that's not a stock oil pressure sensor but it may work.
Uploaded with ImageShack.us
Uploaded with ImageShack.us
08-04-11, 10:37 PM
#10
Aviation Machinist Mate
the big one is oil press sending unit, the small one is the the water temp for your gauge inside and the blue one should be the air intake because i have bunch of blue ones on all my uim. the green are either for your water temp sensor and fuel temp sensor.
08-05-11, 09:54 AM
#11
Full Member
Thread Starter
iTrader: (9)
Join Date: Jun 2004
Location: Bay Area, CA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
Thanks everyone for their help figuring out my mystery. The PO simply just swapped the first 2 sensors with FC parts.
