MAP sensor signal wire?
01-25-05, 08:15 AM
#1
almost done
Thread Starter
Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
MAP sensor signal wire?

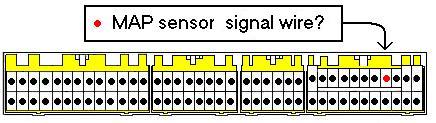

whats up everyone i was just trying to get the stock boost gauge working on my 99 cluster and need to know wich wire is the MAP sensor signal wire, so i just need someone to tell me if i have this wire marked right or wrong thanks.
ECU
ECU
01-25-05, 09:50 AM
#2
RX-7 Bad Ass
iTrader: (55)
Nope, that's not it. The MAP sensor goes to pin 1O, which is the 8th one from the right on that plug.
I think you've just got your pin count going the wrong way
.
If you want to see a good pic, download the Super-AFC wiring diagram from Apexi's website - it has the pressure sensor wire highlighted. Or, just hit up the shop manual.
Dale
I think you've just got your pin count going the wrong way
.If you want to see a good pic, download the Super-AFC wiring diagram from Apexi's website - it has the pressure sensor wire highlighted. Or, just hit up the shop manual
.Dale
