Magnetic Oil Drain plugs - options and results
09-28-09, 10:43 AM
#29
I still haven't installed this thing yet but I did find another source:
http://www.drainplugmagnets.com/home.html
^This company is owned by a former military dude and he makes the parts here in the USA. Its more expensive ($25) than the ebay part ($12) but it is made here in the USA vs Japan.
I will order one for my wife's Mini (same size as the RX7) and compare both.
http://www.drainplugmagnets.com/home.html
^This company is owned by a former military dude and he makes the parts here in the USA. Its more expensive ($25) than the ebay part ($12) but it is made here in the USA vs Japan.
I will order one for my wife's Mini (same size as the RX7) and compare both.
09-28-09, 12:06 PM
#30
Can't live without boost.
iTrader: (2)
Join Date: Apr 2002
Location: SF Bay Area
Posts: 1,220
Likes: 0
Received 0 Likes
on
0 Posts
I used mine 2 weekends ago. The difference is that the head is a lot smaller than the OEM one. It looks nice and pretty when it's new, but after a few changes it'll blend right in with the dirt and grime
The magnet is stronger than I thought it would be.
The magnet is stronger than I thought it would be.
10-30-09, 06:26 PM
#31
I still haven't installed this thing yet but I did find another source:
http://www.drainplugmagnets.com/home.html
^This company is owned by a former military dude and he makes the parts here in the USA. Its more expensive ($25) than the ebay part ($12) but it is made here in the USA vs Japan.
I will order one for my wife's Mini (same size as the RX7) and compare both.
http://www.drainplugmagnets.com/home.html
^This company is owned by a former military dude and he makes the parts here in the USA. Its more expensive ($25) than the ebay part ($12) but it is made here in the USA vs Japan.
I will order one for my wife's Mini (same size as the RX7) and compare both.
Finally got around to test fitting the different oil drain plugs. The one from HyperGarage fit perfectly. The threaded portion was the same size as stock.

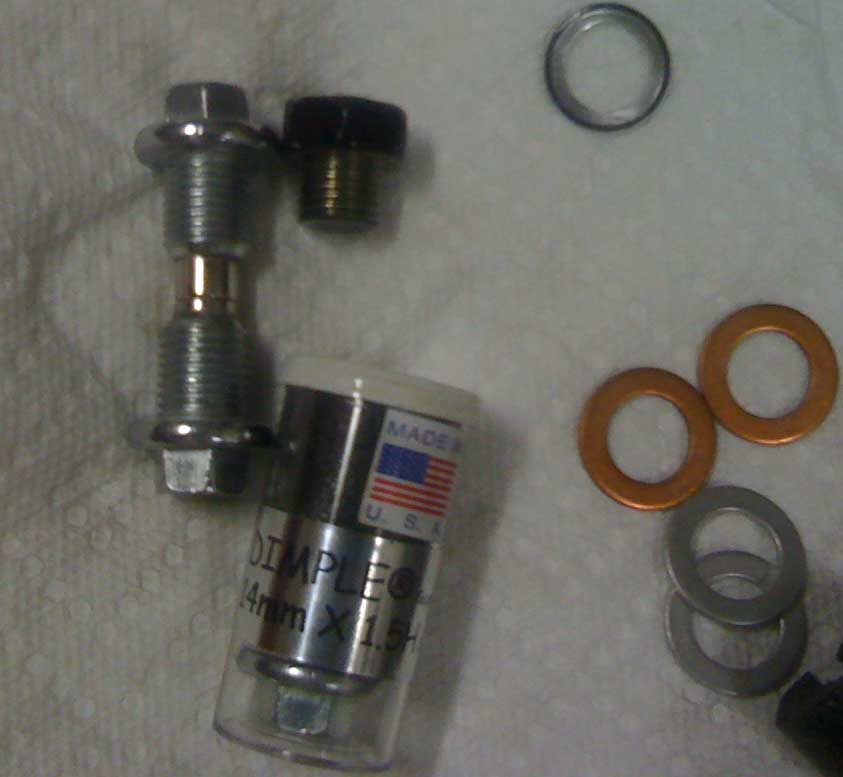

The Dimple one I got from DrainPlugMagnets.com did not. Its too long and interfered with something when I tried to thread it into the pan. It got aobut 3/4 of the way in. Check the pic to see the difference in lenths.
The magnet on the Dimple one is ridiculously strong! Much stronger than the HyperGarage one. I asked the Dimple guy if he is interested in making one that fits the RX7.
11-03-09, 09:45 PM
#35
I've been working with Richard, the owner of Drainplugmagnets.com to make a drain plug for the FD (and other RX7s and Mazdas that use a similar style plug).
Learned some interesting info about the magnetic oil drain plugs in the process. Figured I'd post here as an FYI. I'm feeling less enthusiastic about the Hyper Garage one now that I've learned a bit about oil drain plugs. The heat ratings in particular concern me since we all know how hot turbo rotaries run. Especially when you track your car like I do.
The fancy looking products you are looking at are aluminum plugs with the magnets pressed in them. Aluminum expands faster when heated than the magnets do......Magnets have been known to come out of aluminum plugs under certain conditions, not good.
All my drain plugs are steel only. My magnets are extremely strong but like most magnets brittle. The further in they are the more protected they are from dropping, etc. My magnets are not pressed in, that could cause internal fracturing. They are epoxied in with an epoxy good for 500 degrees. Bulletproof. If you have a steel pan, it is easier to put in and take out without the magnet trying to stick to the pan.
Trust me, the low profile I will be sending you is great. No clearance problems and easier on you trying to put it in and out. There was a lot of thought put into a Dimple® for the customers sake. Oh, my magnets are super high temperature rated, they do not loose their magnetism at 175 degrees F, A Dimple is good for over 300deg. F . They cost more, if somebody does not mention high temperature.....they're not.
Sincerely,
Richard Jodoin
I am sending one of the plugs that I received over to IRP so they can take a look at the product and critique. Ihor and Rich have seen many more oil drain plugs than I have so it will be good to get a professional's opinion.
Learned some interesting info about the magnetic oil drain plugs in the process. Figured I'd post here as an FYI. I'm feeling less enthusiastic about the Hyper Garage one now that I've learned a bit about oil drain plugs. The heat ratings in particular concern me since we all know how hot turbo rotaries run. Especially when you track your car like I do.
The fancy looking products you are looking at are aluminum plugs with the magnets pressed in them. Aluminum expands faster when heated than the magnets do......Magnets have been known to come out of aluminum plugs under certain conditions, not good.
All my drain plugs are steel only. My magnets are extremely strong but like most magnets brittle. The further in they are the more protected they are from dropping, etc. My magnets are not pressed in, that could cause internal fracturing. They are epoxied in with an epoxy good for 500 degrees. Bulletproof. If you have a steel pan, it is easier to put in and take out without the magnet trying to stick to the pan.
Trust me, the low profile I will be sending you is great. No clearance problems and easier on you trying to put it in and out. There was a lot of thought put into a Dimple® for the customers sake. Oh, my magnets are super high temperature rated, they do not loose their magnetism at 175 degrees F, A Dimple is good for over 300deg. F . They cost more, if somebody does not mention high temperature.....they're not.
Sincerely,
Richard Jodoin
I am sending one of the plugs that I received over to IRP so they can take a look at the product and critique. Ihor and Rich have seen many more oil drain plugs than I have so it will be good to get a professional's opinion.
11-04-09, 11:26 PM
#38
Full Member
iTrader: (1)
Join Date: May 2007
Location: Kansas
Posts: 146
Likes: 0
Received 0 Likes
on
0 Posts
Well if they decide to mass produce that dimple magnetic drain plug gracer7-rx7 tell them you can count me in.
I had one of those Autozone magnetic drain plugs put in and I didn't think about it at the time, but I couldn't hand tighten it all the way in and then just used a ratchet and socket to get it in the last bit that didn't get through...wonder if I might've damaged the baffle in some way now....
I had one of those Autozone magnetic drain plugs put in and I didn't think about it at the time, but I couldn't hand tighten it all the way in and then just used a ratchet and socket to get it in the last bit that didn't get through...wonder if I might've damaged the baffle in some way now....
12-15-09, 10:49 AM
#44
Can't live without boost.
iTrader: (2)
Join Date: Apr 2002
Location: SF Bay Area
Posts: 1,220
Likes: 0
Received 0 Likes
on
0 Posts
I just changed my oil 2 weekends ago for the first time since I threw on the new magnetic drain plug. Even though the car was hardly driven (~1000 miles), but it was coming up on 3 months so I thought I'd change the oil anyways.
When I pulled the plug out the magnet tip had a few black marks on it, no actual pieces of metal or chunky debris, whatever it was it came right off.
When I pulled the plug out the magnet tip had a few black marks on it, no actual pieces of metal or chunky debris, whatever it was it came right off.
Any update???
12-15-09, 12:25 PM
#46
He definitely will be. These will probably fit the FC, RX8 and Miata as well. I have been slow to test this since I recently did an oil change using some nice $ Idemetsu and am reluctant to dump it any sooner than I need to. Especially since I don't get paid to do this.
I sent a second plug to Rich/Goodfella for his testing but I don't think he's done it yet on his car (for the same reasons as me). Not sure if he did a test fit on other cars at the shop...
Anyway, I will probably wind up installing after the holidays in January. I'm 99.9% certain it will fit. It was the same dimensions as the stock drain plug.
Stay tuned boys and girls.
I was bummed I couldn't make Sevenstock this year also but life was 'interesting' in 2009 and a trip at that time was not in the cards.
01-16-10, 03:06 PM
#47
Rotary Freak
iTrader: (28)
Join Date: Jun 2009
Location: Ontario, Canada
Posts: 2,089
Likes: 0
Received 0 Likes
on
0 Posts
Any update on the plug?
Also have you guys thought of trying the filtermag?
Here is a video for those that like to watch instead of reading
http://www.shopfiltermag.com/filtermagcommercial.php
They are available at many locations and are around $39
Also have you guys thought of trying the filtermag?
Here is a video for those that like to watch instead of reading
http://www.shopfiltermag.com/filtermagcommercial.php
They are available at many locations and are around $39
01-16-10, 09:20 PM
#48
Ling Ling
iTrader: (22)
Join Date: May 2005
Location: Coatesville, PA
Posts: 469
Likes: 0
Received 0 Likes
on
0 Posts
tranny doesnt need it, there is a pretty big magnet on the inside of the bottom cover, only problem is that you have to remove the whole bottom plate to get to it. but its there!
Edit: somehow i missed the fact that there was a second page to this. but anyways, to confirm, i pulled the bottom plate off of my tranny when it was off and there is indeed a rectangular magnet in there.
Edit: somehow i missed the fact that there was a second page to this. but anyways, to confirm, i pulled the bottom plate off of my tranny when it was off and there is indeed a rectangular magnet in there.
Last edited by kyleaudio; 01-16-10 at 09:24 PM. Reason: missed the second page
01-17-10, 02:14 PM
#49
I wish I was driving!
Are you actually expecting this to make any measurable difference to engine longevity? I have never witnessed any form of accelarated wear on a rotary from metal particles being in the oil system that couln't be attributed to lack of proper oil changes or improper bearing installation.
If it did make a discernable difference, wouldn't mazda have put them in from the factory? They installed them on the transmissions...
If it did make a discernable difference, wouldn't mazda have put them in from the factory? They installed them on the transmissions...
01-17-10, 07:07 PM
#50
Measurable difference in accelerated wear? I don't know. Who's got a 3 or 4 identically new engines around to make a contolled study of an $8 dollar item anyway. Prove it won't help.
I agree that oil related failures are rare, especially in a streeted car. But it can't hurt either. While I tend to respect MAZDA's engineering, I don't worship it like a religion either. They told us to change the plugs from above, and installed a worse than worthless temp gauge too.
I agree that oil related failures are rare, especially in a streeted car. But it can't hurt either. While I tend to respect MAZDA's engineering, I don't worship it like a religion either. They told us to change the plugs from above, and installed a worse than worthless temp gauge too.
